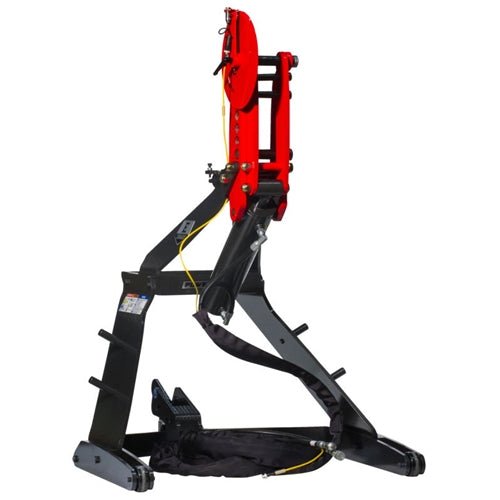

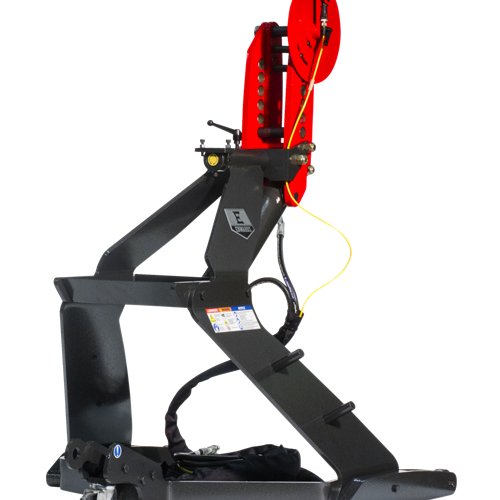

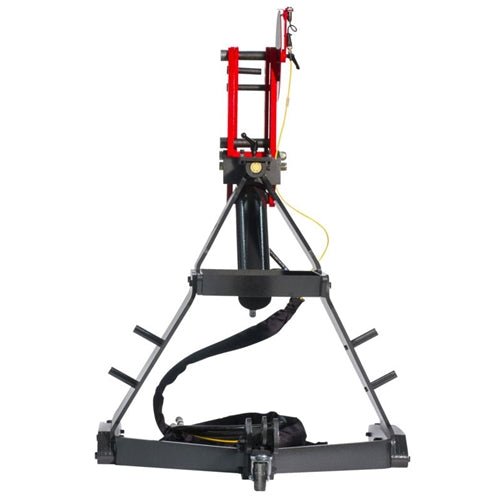

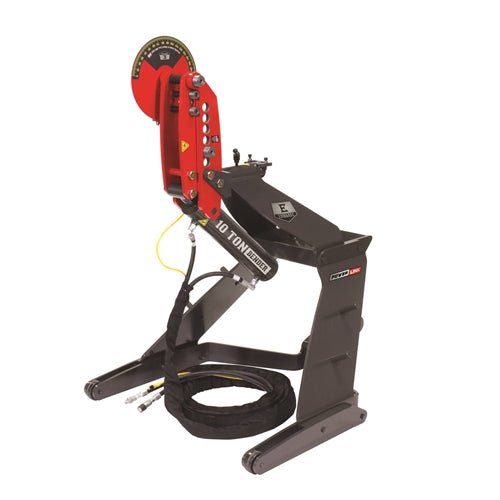

10 Ton Bender
SKU: ED9-HAT1000
Get Bent!
- Plug + Play Operation
- Horizontal or Vertical Operating Positions
- Proximity Switch Allows Easy, Repeatable Bends
- Heavy-Duty Rolling Stand
- Easy-to-Use Hand/Jog Controls
Our 10 Ton Bender is a quick-connect hydraulic tool that greatly expands your fabrication capabilities. Designed for medium to heavy material, the Edwards 10 Ton Bender powers through 2" (I.D.) Schedule 40 pipe, 2-1/2" (O.D.) tube and 2" square tube quickly and accurately. Choose from our over 280 standard Bender Die Sets to get your job done. Call for custom die information and material compatibility requirements.
GENERAL SPECIFICATIONS
EDWARDS IRONWORKER/
PORTA-POWER
Standard Motor 5 HP 3~ 208 V or 230 V
1725 RPM 14 A
Optional Motors 5 HP 3~ 460 V
1725 RPM 7 A
5 HP 3~ 575 V
1725 RPM 6 A
5 HP 1~ 208 V or 230 V
1725 RPM 23 A
Hydraulic Pump 3-1/2 GPM - 1 Stage
Valve Pressure 2750 PSI
Reservoir 7 Gallons
GENERAL SPECIFICATIONS
Bend Capacity 180°
Pipe Capacity 2" (ID) Schedule 40
Tube Capacity 2-1/2" (OD) .095"
Square Tube Capacity 2" (OD) .25"
Chromoly Capacity 2-1/4" (OD) .083"
Cylinder 1-3/4" Ram
Stroke 14"
DIMENSIONS
Height 40-1/2"
Width 36-1/2"
Depth 42"
Shipping Weight 600 lb
