Just Roll With It!

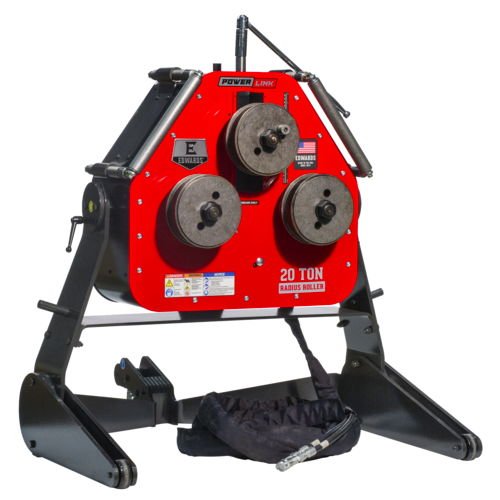

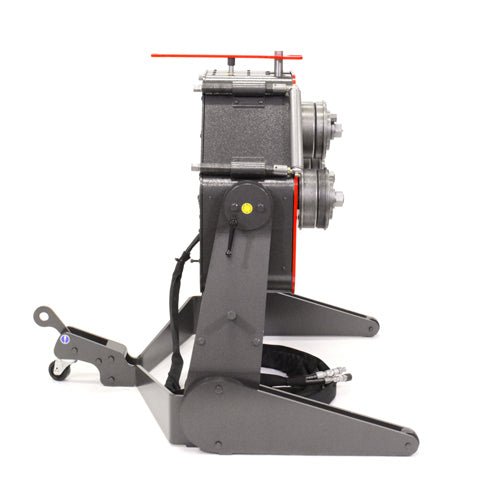

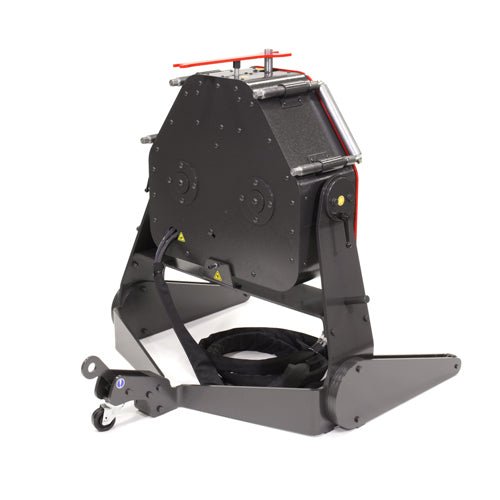

Our Pipe, Tube and Section Radius Roller is another essential quick-connect hydraulic tool. Plug it into your Edwards Ironworker with the PowerLink System or power it separately with an Edwards Portable Power Unit to greatly expand your fabrication capabilities. Designed for medium to heavy material, the Edwards Radius Roller powers through your job quickly and accurately. The variable speed hydraulic drive allows you to dial in the appropriate speed for various materials. Quickly change the orientation from vertical for smaller projects to horizontal for those larger, heavier jobs.

GENERAL SPECIFICATIONS

EDWARDS IRONWORKER/

PORTA-POWER

Standard Motor 5 HP 3~ 208 V or 230 V

1725 RPM 14 A

Optional Motors 5 HP 3~ 460 V

1725 RPM 7 A

5 HP 3~ 575 V

1725 RPM 6 A

5 HP 1~ 230 V

1725 RPM 23 A

Hydraulic Pump 3-1/2 GPM - 1 Stage

Valve Pressure 2750 PSI

Reservoir 7 Gallons

DIMENSIONS

Height 43"

Width 49"

Depth 49"

Weight 1700 lbs

GENERAL SPECIFICATIONS

Shaft Diameter  2.0"

Shaft Center Distance 14.12"

MATERIAL CAPACITIES

Round Pipe 2" Schedule 40

Round Tube 2-1/2" (.095")

Square Tube 2" (.120")

Solid Round 1.375"

Flat Bar - Easy Way 3"(.375")

Flat Bar - Hard Way 2.25"(.375")

Angle Iron 2"(.250")
