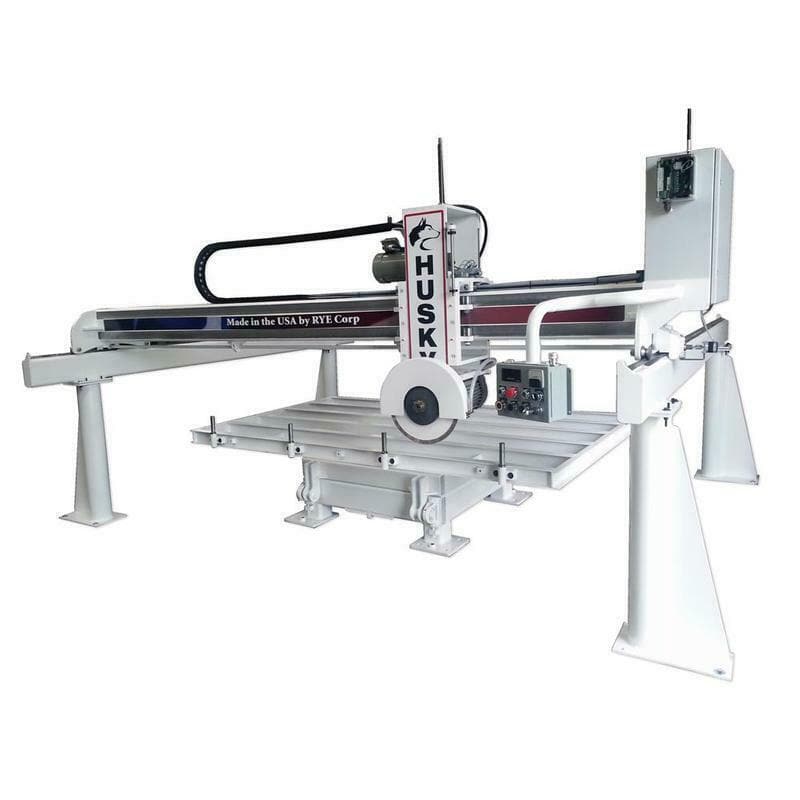

Husky Gantry Bridge Saw

Heavy-duty Husky Bridge Saw engineered for precise granite and natural stone cutting with durable, serviceable components.

Made in the USA by RYE-Corp using rugged, high-quality components, the Husky Bridge Saw is designed with readily available off-the-shelf parts to ensure fast repairs and minimal downtime. Built around a philosophy of simple, durable, and dependable equipment, this saw is ideal for countertop fabrication as well as architectural stone cutting applications.

Standard features include a wireless remote, digital readout, direct drive AC inverter-duty motors on all three axes, alignment laser, amp gauge for monitoring cutting speed, and a rotating tilt table with 0°, 45°, 90°, and 135° stops plus a variable-degree locking system. The powerful 20 HP direct drive motor supports blades up to 18 inches and includes an easy blade tilt system for accurate 45° miter cuts. Controls are intuitive and allow simultaneous use of both the control panel and wireless remote, with an optional 8-inch touchpad available for programmable dimensional cutting.

Ask about our Hercules II (25mm) Bridge Saw Blade for Granite and Natural Stone.

Advantages

• Machined rail and bridge with overall dimensions of 15 ft W × 13 ft D × 9 ft H
• Wireless remote with two-speed, three-axis control plus saw start, stop, and forward cut
• Digital readout for accurate positioning
• Direct drive AC inverter-duty motors on all three axes
• Alignment laser for precise material positioning
• Amp gauge to determine proper cutting speed
• Rotating 6 ft × 10 ft tilt table with 0°, 45°, 90°, and 135° stops and variable locking system
• 20 HP, 220 V, three-phase direct drive motor supporting up to an 18 in blade
• Blade tilt system for accurate 45° miter cutting
• Water solenoid automatically activates with spindle motor
• 16 in vertical movement with adjustable limit switches
• Approximate weight: 10,000 lb
