Husky Gantry Bridge Saw

SKU 24SE4020

Original price $59,900.00 - Original price $59,900.00
Original price
$59,900.00
$59,900.00 - $59,900.00
Current price $59,900.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

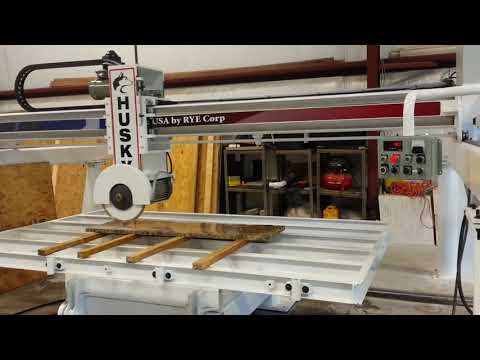

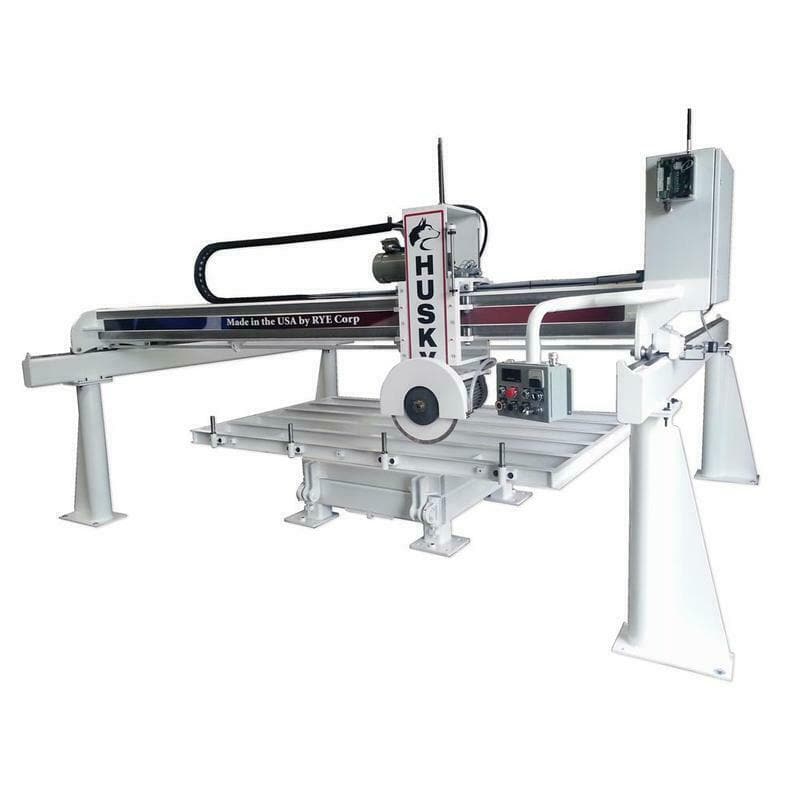

The Husky Gantry Bridge Saw by Rye Corp is one of the most trusted saws in the industry

Ask about our  Hercules 2 Diamond Blade

Following the Philosophy of Simple, Durable, Quality Equipment, RYE Corp introduces the Husky Bridge Saw (RYE Corp Husky 20hp Direct Drive Bridge Saw). Designed for dimensioning of granite for countertops and architectural cutting of stone.

Like all of RYE Corp’s equipment, we try to utilize common “off the shelf” parts for quick repairs in the event of breakdown and as always RYE Corp’s reputation for customer support is unsurpassed. Standard features include; Wireless Remote, Digital Read Out, Direct Drive AC Inverter Duty motors for all 3 Axis, Alignment Laser, Amp Gauge for determining proper cutting speed, Rotating Tilt Table with 0, 45, 90, and 135-degree stops and innovative variable degree table locking system. The 20HP direct drive motor can handle up to an 18” blade. An easy blade tilt system allows for 45-degree miter cuts as well.

The Husky’s controls are easy to use and you can operate the saw using the control panel and the wireless remote at the same time. Options include 8” touchpad for programming dimensional cuts.

Husky Gantry Saw with separate hydraulic powered turntable per the following specifications:

Scope of Work: Structure:
Saw Feed:

Gantry Movement: Vertical Movement: Main Motor Spindle:

Operator Controls:

Turntable:

Laser Light: Weight of Machine: Installation: Delivery:

Dimensioning stone slabs for countertop work. Length of cut is 11,4”.

Precision machined rail and bridge. Overall dimensions are 15’ wide, 13’ deep, 9’ tall.

Saddle travels on 12 flanged rollers. Powered variable speed direct drive movement.

Powered on V groove roller with inverter duty 1hp motor. 16” movement. With adjustable limit switches.

20 HP, 220v, 3 phase direct drive VEM motor, 18” diameter blade capacity. Miter cut capability. Water solenoid automatically turns the water on and off with the spindle motor.

Convenient control panel with amperage gauge and digital readout. Wireless operation remote control with 2 speed 3 axis control, saw motor stop/start, fwd cut maintain

Heavy duty 6’ x 10’ rotating turntable with hydraulic tilting and positive stops set at 0, 45, 90, and 135 degrees. Variable locking positions.

High intensity laser to align material to blade path included. Approximately 10,000 lbs.
Available.
3 - 4 weeks from date of deposit.

Warranty:

Shipping: Option

12 months on mechanical parts 6 months on electrical. Warranty starts from date of delivery. Warranty is for part replacement only, labor and travel expenses are not included.

F.O.B. Knoxville, TN. Freight quotes can be obtained and added to the total as required.

8 inch touch screen with programmable movement

Customer Responsibilities:
*Forklift (10,000 lb) and crew as necessary to off load, position, and set the machine.

*Level 6thick concrete floor adequate to accept the machine. No more than a 3” slope over 20’.

*All local and regional permits and inspection fees.

*Fused disconnect 208-230 v, 3 ph, 60 amp circuit. Electrician to connect the service to the machine. Recommend 8/4 SO cord.

*Clear water 5 gpm with proper drainage.
