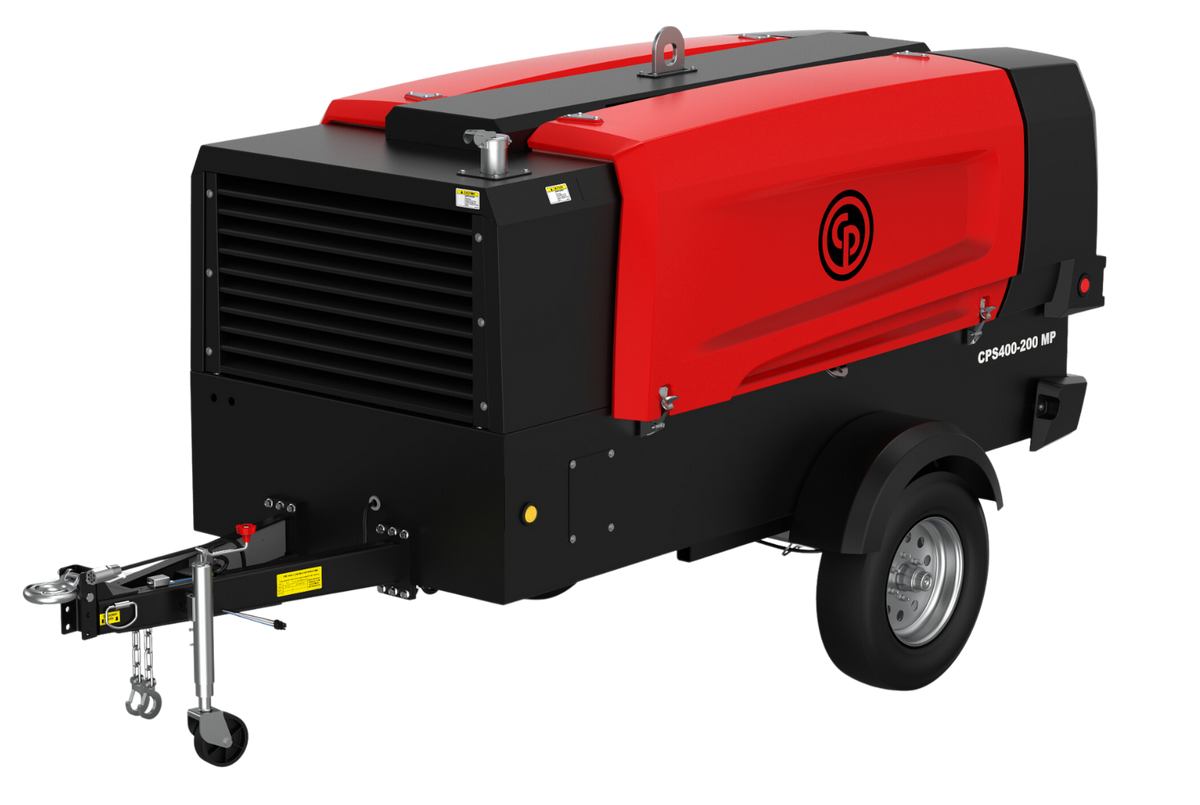

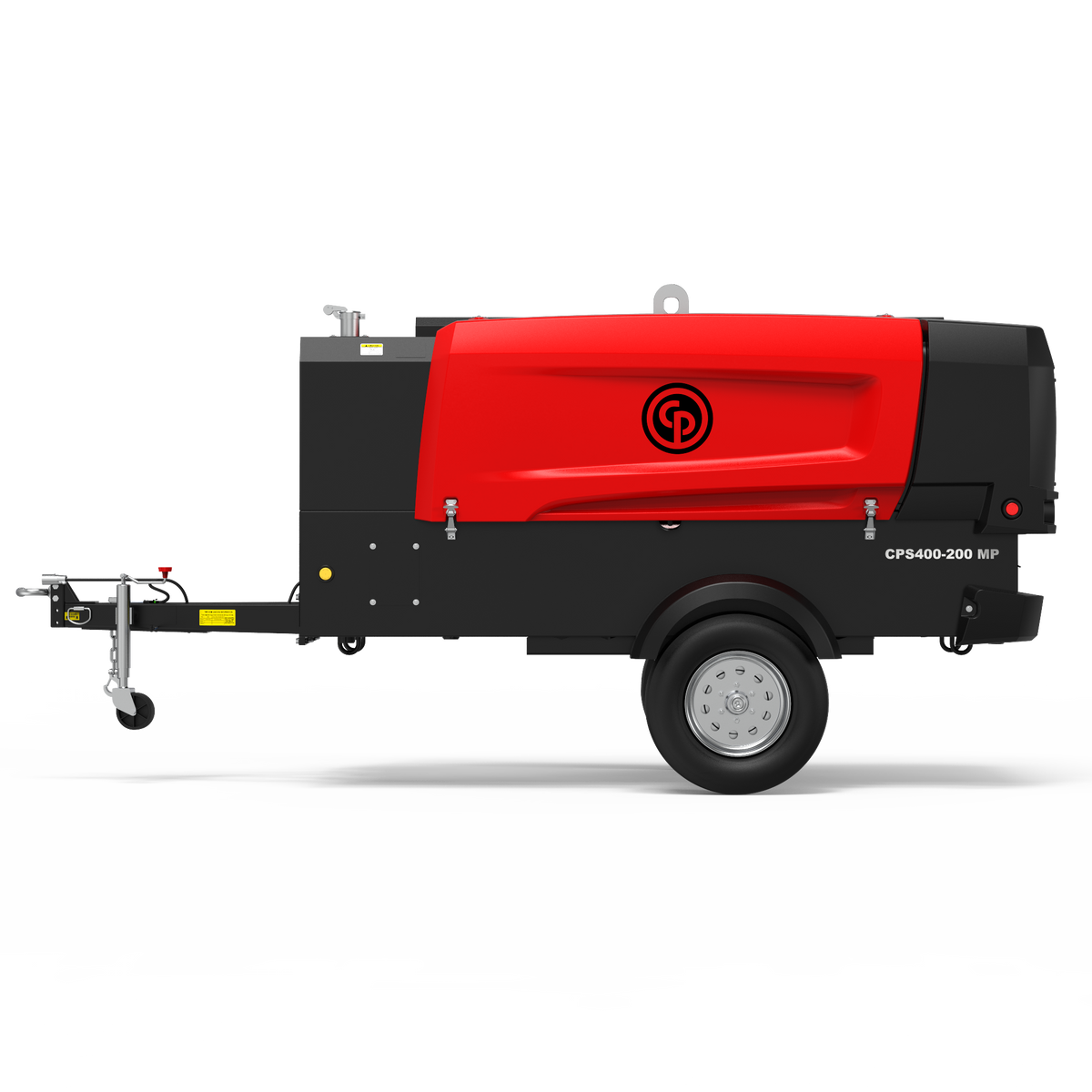

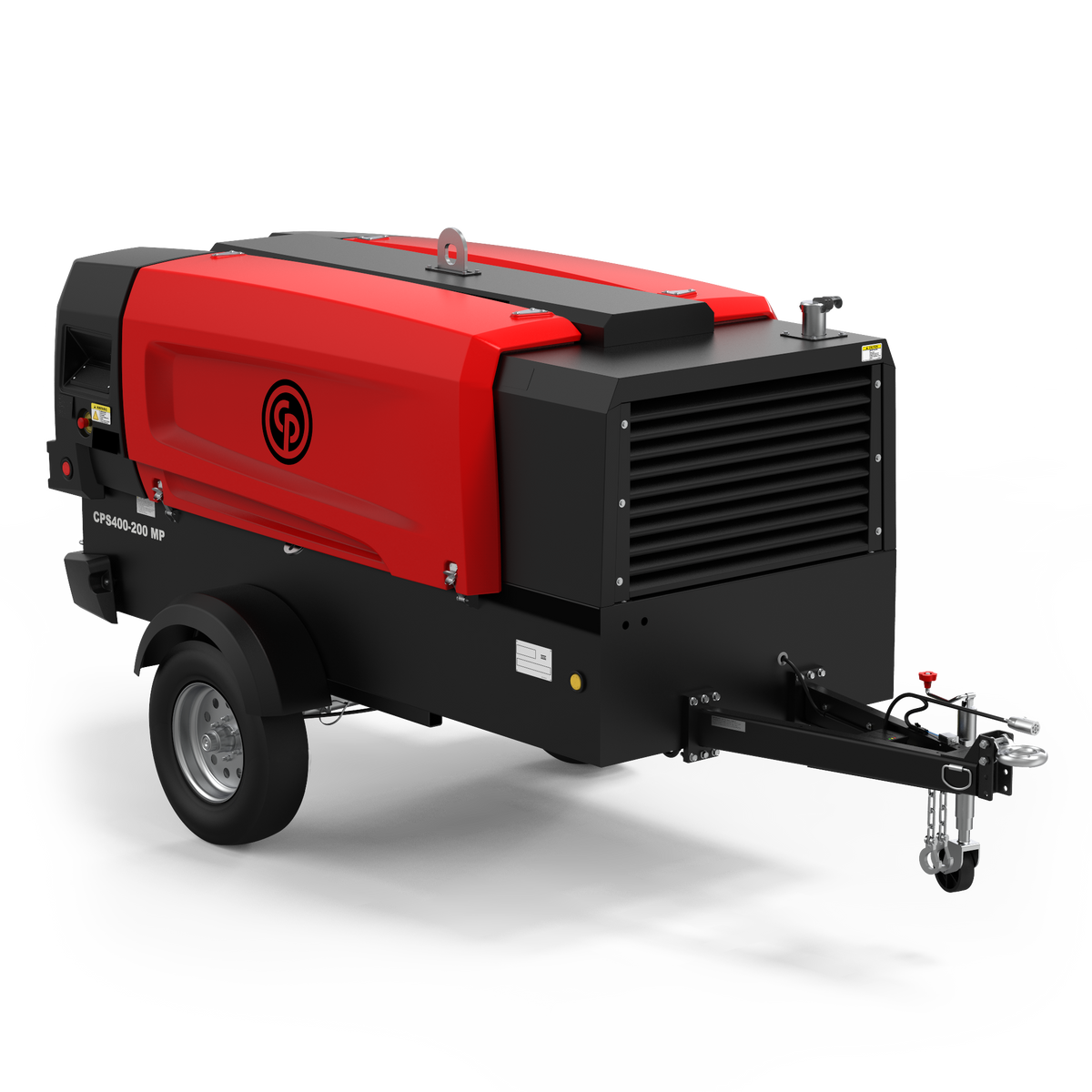

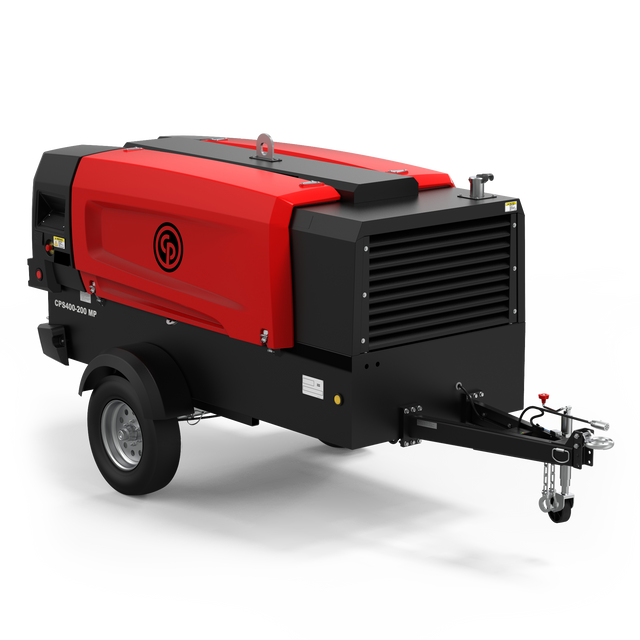

PORTABLE COMPRESSORS - CPS 400 Range

The CPS 400 series is a heavy-duty portable diesel air compressor designed for demanding construction, industrial, utility, and jobsite applications.

Powered by a Kohler KDI 3404 Tier 4 Final diesel engine, the CPS 400 series provides adjustable air flow and operating pressure to support a wide range of pneumatic equipment and compressed-air requirements.

The CPS 400 series offers multiple configurations, including the CPS 400-150 KoD, CPS 400-200 MP KoD, Custom Factory Order models, PFF configurations, and Cold Weather configurations. Depending on the model, the compressor delivers up to 400 CFM with operating pressures ranging from 100 to 200 PSI and pressure ranges up to 58–202 PSI.

Standard equipment includes a thermostatic bypass valve on the compressor oil system, heavy-duty battery, CP Xc1004 or Xc2003 controller with operational monitoring, diagnostics, and safety warning/shutdown functions, including protection for high engine temperature and low fuel conditions. The unit also features a DOT towing package, road lights, adjustable 3-inch pintle towing hitch, 15-inch wheels, torsion axle, VIN, adjustable jockey wheel, electric brakes, A-frame style tow bar, and a spillage-free frame.

Key Features

• Kohler KDI 3404 Tier 4 Final diesel engine

• T4F emissions rating

• Up to 400 CFM air flow

• Adjustable 100, 150, and 200 PSI operating pressure configurations

• Pressure range up to 58–202 PSI

• Thermostatic bypass valve on compressor oil system

• Heavy-duty battery

• CP Xc1004 controller on CPS 400-150 models

• CP Xc2003 controller on CPS 400-200 models

• Operational monitoring and diagnostics

• Safety warning and shutdown functions

• High engine temperature protection

• Low fuel monitoring

• DOT towing package

• Road lights with 7-pin RV plug

• Adjustable 3-inch pintle towing hitch

• 15-inch wheels

• Torsion axle

• VIN included

• Adjustable jockey wheel

• Electric brakes

• A-frame style tow bar

• Spillage-free frame

• Standard PFF configurations available

• Cold Weather configurations available

• Custom Factory Order configurations available

Applications / Recommended Use

• Construction jobsites

• Industrial applications

• Utility work

• Road and infrastructure projects

• Pneumatic tools

• Heavy-duty compressed-air applications

• Mobile jobsite operations

• Applications requiring adjustable air pressure and flow

• General contractor and rental fleet operations

• Cold-weather jobsite applications with CW configuration

Product Specifications

Frequently Asked Questions (FAQ)

Q: What engine powers the CPS 400 series?
A: The CPS 400 series is powered by a Kohler KDI 3404 Tier 4 Final diesel engine.

Q: What air flow and pressure options are available?
A: The CPS 400-150 models provide 400 or 375 CFM with operating pressure settings of 100 or 150 PSI. The CPS 400-200 MP models provide 375 or 350 CFM with operating pressure settings of 150 or 200 PSI.

Q: What is the pressure range of the CPS 400 series?
A: The CPS 400-150 configurations have a pressure range of 58–175 PSI, while the CPS 400-200 configurations have a pressure range of 58–202 PSI.

Q: What configurations are available?
A: The CPS 400 series is available in standard, Custom Factory Order, PFF Stock, and Cold Weather configurations. The PFF configurations are identified as Standard Configuration + PFF Package, while the CW models are designed for cold-weather applications.

Q: What controllers are used on the CPS 400 series?
A: CPS 400-150 models use the CP Xc1004 controller, while CPS 400-200 models use the CP Xc2003 controller. Both provide operational monitoring, diagnostics, and safety warning/shutdown functions.

Q: What safety and monitoring features are included?
A: The controller provides operational monitoring, diagnostics, and safety warning/shutdown functions, including high engine temperature and low fuel monitoring.

Q: Does the CPS 400 include towing equipment?
A: Yes. Standard towing equipment includes a DOT towing package, road lights with a 7-pin RV plug, adjustable 3-inch pintle towing hitch, 15-inch wheels, torsion axle, VIN, adjustable jockey wheel, electric brakes, and an A-frame style tow bar.

Q: Is the CPS 400 designed for mobile jobsites?
A: Yes. Its portable design, towing package, adjustable pressure and flow settings, and heavy-duty construction make it suitable for construction, industrial, utility, infrastructure, and other mobile compressed-air applications.

Q: Is a cold-weather configuration available?
A: Yes. The CPS 400-150 CW and CPS 400-200 MP CW models are available as Cold Weather configurations for applications requiring equipment configured for colder operating conditions.
