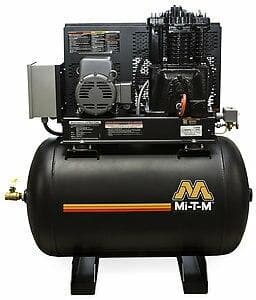

The horizontal 80-gallon air compressors can be installed in service shops where compressed air is a required utility

Powerful and efficient, they are designed to maximize production

Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor:Industrial low RPM motor · Magnetic start for thermal overload protection

Frame:Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components:ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer

Other Models Available:
ACS-20305-80H200V, 16.1A, 3 Phase
ACS-23305-80H230V, 13.8A, 3 Phase
ACS-46305-80H460V, 6.9A, 3 Phase


  • CFM @ 175


  • Horsepower/Motor

    5.0 HP, 230V, 1Ø, 23.0A

  • Pump RPM


  • Compressor

    Two Stage, Cast Iron

  • Tank Size

    80 gallon

  • Bolt Down (LxW)

    20.75 x 23.5 in.

Weights & Dimensions

  • Net Weight

    514.00 lbs.

  • Shipping Weight

    585.00 lbs.

  • Length

    52.00 in.

  • Width

    26.50 in.

  • Height

    53.00 in.


  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • IX-0006 Electric Tank Drain

    Automatically drains liquid from compressor tank

  • IX-0008 Low Oil Monitor

    Low-oil sensor does not allow unit to start when oil levels fall below an adequate level

  • IX-0052 After Cooler

    Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient

  • IX-0056 Pneumatic Tank Drain

    Automatically drains liquid from compressor tank; unit cannot include an after cooler

  • IX-0057 Pneumatic Tank Drain

    Automatically drains liquid from compressor tank; you must also have IX-0052 after cooler option
