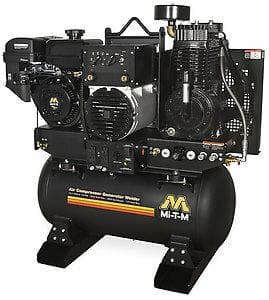

Two Stage Gasoline 30-Gallon is a combination air compressor, generator, and arc welder is the ideal tool for field repairs in remote locations

Dependability of high quality equipment is vital in every industry, so is working with equipment that can save both time and money. The combination air compressor, generator, and arc welder is the ideal tool for field repairs in remote locations. Save room on your service truck with this versatile all-in-one solution.

AGW Series Operation
Generator Mode:AC current only · Selector switch set to idle down · Switch is set to full throttle

Welder Mode:DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator:Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder:Amperage selection switch, 170A maximum

Frame:Powder coated ASME coded receiver tanks · 16-gauge powder coated belt guard

Components:Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch fly wheel

*Equipped with 150-PSI maximum rated regulator.


  • Displacement/ Engine

    420cc Mi-T-M OHV with Electric Start - Battery and Battery Cables Not Included

  • Rated Speed

    3600 RPM

  • CFM @ 90 PSI


  • CFM @ 175 PSI*


  • Compressor

    Two Stage, Cast Iron

  • Tank Size

    30-Gallon Receiver Tank

  • Max. AC Output

    5000 watts

  • Rated AC Output

    4500 watts

  • Alternator Wattage: Cont. On-Load @ 90 PSI

    3000 watts

  • Alternator Wattage: Cont. On-Load @ 175 PSI

    2500 watts

  • Frequency/Voltage


  • Max. Amps (120V/240V)

    41.5/20.8 Off-Load

  • Cont. Amps (120V/240V)

    37.5/18.8 Off-Load

  • Receptacles

    (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock

  • Duty Cycle (10 Min. Run Time)

    150A @ 100%

  • DC Voltage

    50-170A Working Range

  • Fuel Tank

    1.85 gallon

Weights & Dimensions

  • Net Weight

    585.00 lbs.

  • Shipping Weight

    650.00 lbs.

  • Length

    46.00 in.

  • Width

    22.00 in.

  • Height

    47.00 in.


  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • AX-0070 Battery Tray, Box and 2-Foot of Cables
