Designed for tough jobs with enough air capacity to run multiple air tools at once

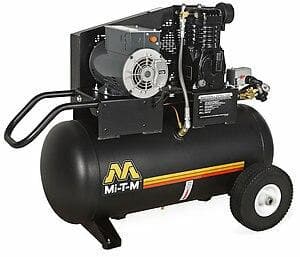

AM1-PE15-20M



Designed for tough jobs with enough air capacity to run multiple air tools at once, this air compressor is easy to transport yet maintains the power needed for really big projects.



Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator



Motor:Auto start/stop - continuous run optional · Thermal overload motor protection



Frame:Powder coated ASME coded 20-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 10-inch flat-free tires



Components:Regulator and two gauges for tank and outlet pressure · 10-inch fly wheel · Manual drain valves for proper maintenance · Industrial grade pressure switch



Specifications

  • CFM @ 90 PSI

    7.3

  • Horsepower/Motor

    1.5 HP, 120V, 13.2A

  • Compressor

    Single Stage, Cast Iron

  • Tank Size

    20 gallon

  • Plug Type

    NEMA 5-15P

Weights & Dimensions

  • Net Weight

    196.00 lbs.

  • Shipping Weight

    265.00 lbs.

  • Length

    40.00 in.

  • Width

    24.00 in.

  • Height

    32.00 in.

Options

  • AX-0002 Auto Drain/Regulator/Plastic Bowl

    Drains moisture from air system

  • AX-0003 Manual Drain/Regulator/Metal Bowl

    Drains moisture from air system

  • AX-0027 Stationary Kit

    Converts the portable model to a stationary model, removes the wheels and adds the stationary leg

  • AX-0008 Dual Control

    Compressor can be operated in start/stop mode or continuous run where pilot valve exhausts air to atmosphere
