Caldwell Model 82RC Close Stacking C-Hook

Caldwell Model 82RC Close Stacking C-Hook

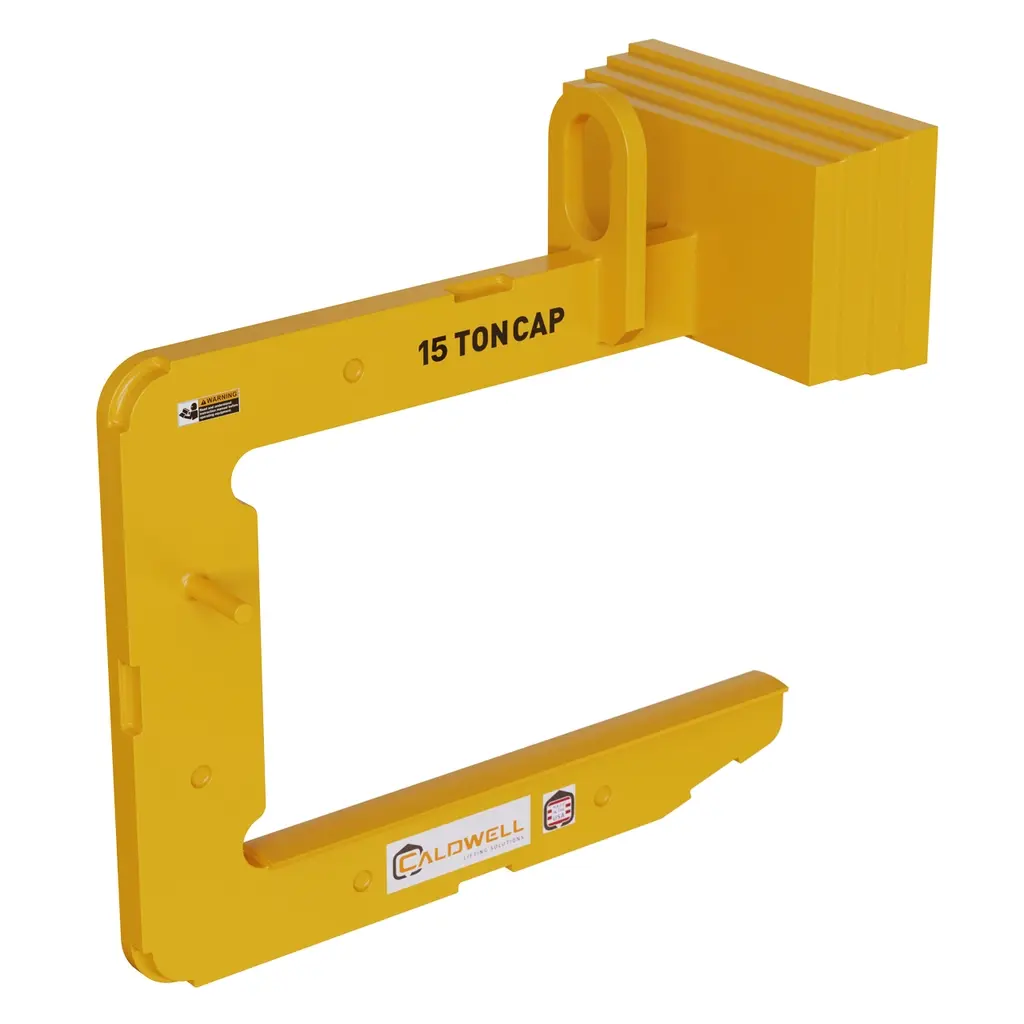

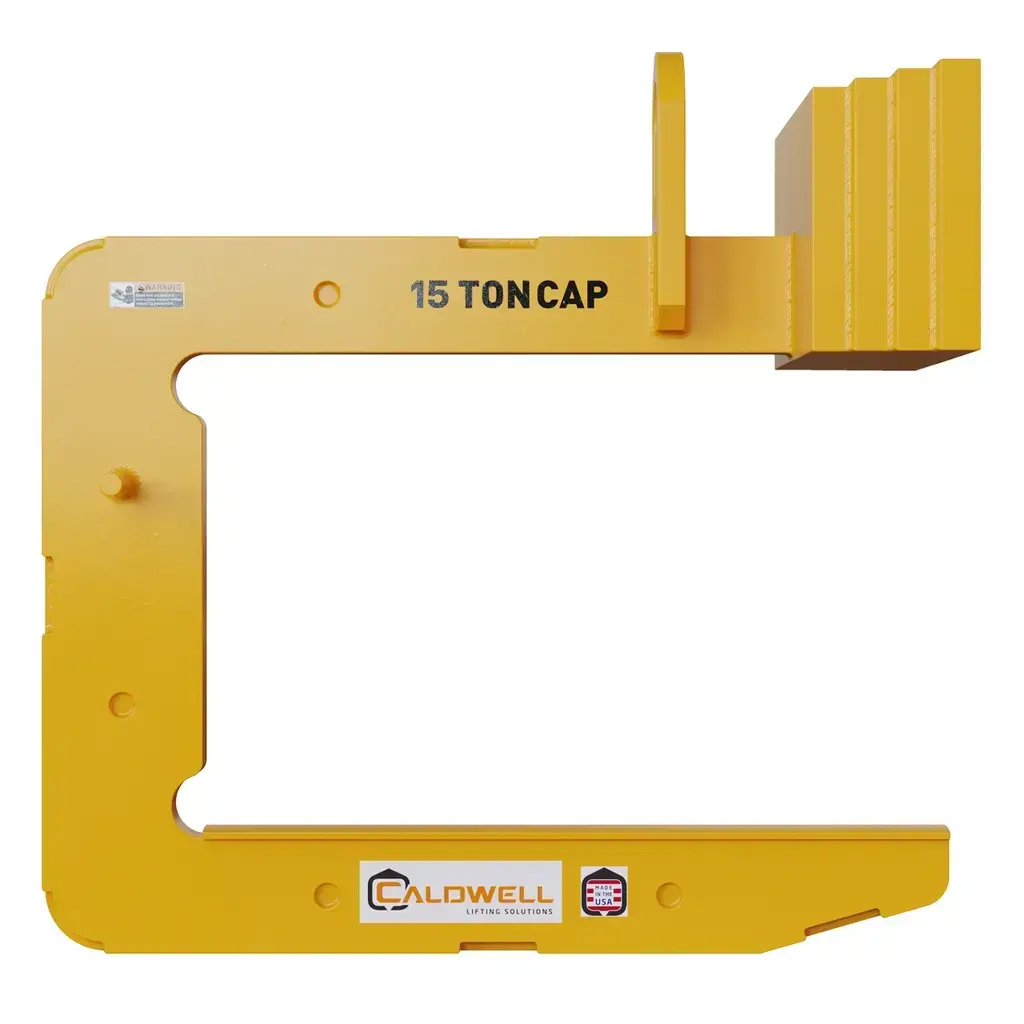

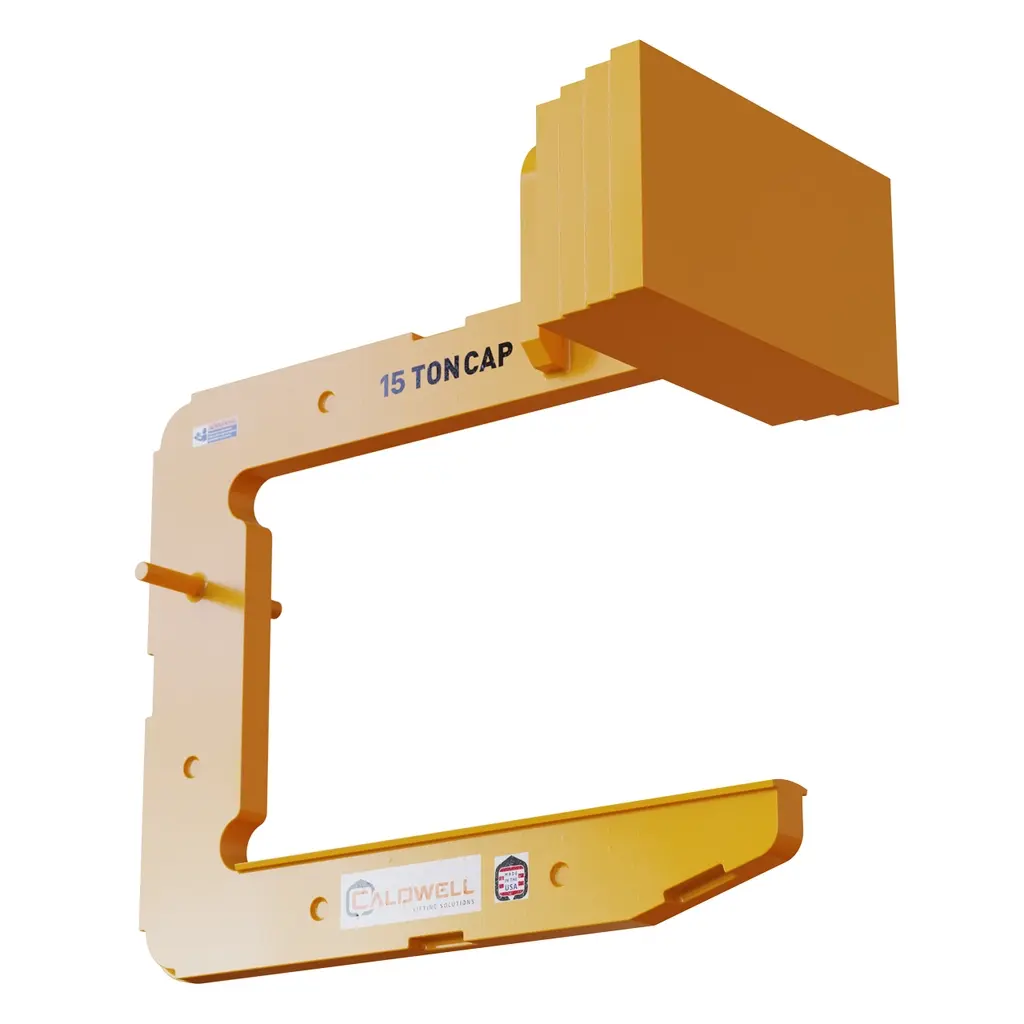

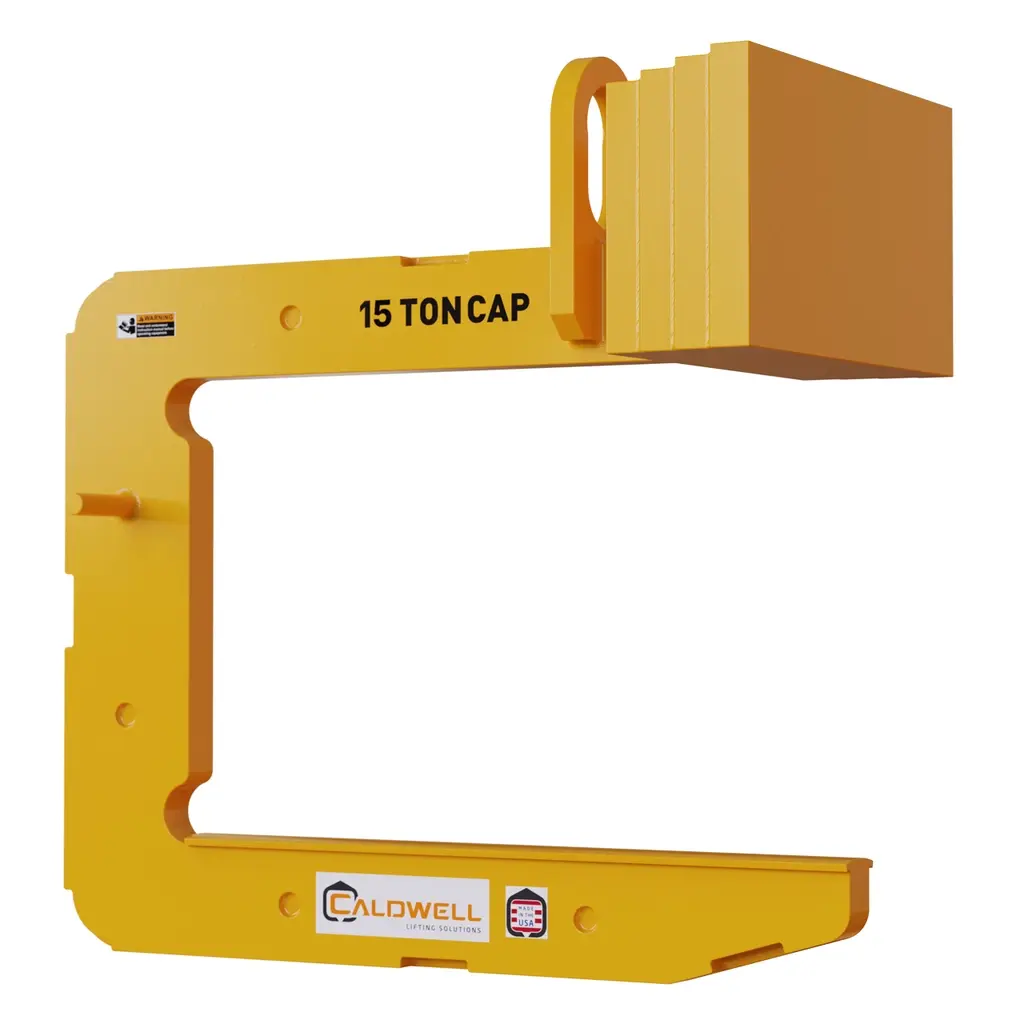

The Caldwell Model 82RC Close Stacking C-Hook is engineered for safely lifting and transporting heavy steel coils in facilities where storage space is limited. Based on Caldwell's industry-leading Model 82 C-Hook, the 82RC features a recessed counterweight that allows coils to be stacked closer together, maximizing valuable floor space without sacrificing lifting performance.

Designed for steel mills, service centers, manufacturing plants, processing facilities, and warehouses, the Model 82RC is available in capacities from 5 to 40 tons and accommodates a wide range of coil widths. Manufactured from high-tensile alloy steel, the hook provides exceptional strength while reducing overall size and weight. A curved coil saddle, guide handles, and counterbalanced design improve safety, efficiency, and ease of operation in demanding industrial environments.

Features

Recessed Counterweight Design

• Allows close stacking of coils
• Maximizes warehouse floor space
• Improves storage efficiency
• Easier access between stored coils
• Reduces overall equipment footprint
• Ideal for crowded storage areas

Heavy-Duty Construction

• High-tensile alloy steel construction
• Reduced physical size and weight
• Built for continuous industrial use
• Heavy-duty welded fabrication
• Long service life
• Designed for demanding applications

Counterbalanced Design

• Hangs level when empty
• Easier positioning
• Improved operator control
• Faster engagement with coils
• Better lifting efficiency

Coil Protection

• Curved coil saddle included
• Inside hook radius minimizes edge contact
• Reduces coil damage
• Protects finished materials
• Optional protective padding available

Guide Handles

• Easier positioning
• Improved control
• Better operator safety
• Faster load engagement
• Simplifies handling

Wide Coil Compatibility

• Handles numerous coil widths
• Multiple capacities available
• Numerous standard models
• Custom options available
• Suitable for many production environments

Industry Compliance

• Designed to applicable ASME standards
• Engineered for below-the-hook lifting
• Built for industrial safety
• Commercial-grade quality

Benefits

• Maximize warehouse storage capacity
• Reduce handling time
• Protect finished coils
• Improve operator productivity
• Reduce equipment interference
• Long service life
• Heavy-duty industrial performance
• Available for numerous coil sizes
• Counterbalanced for easier positioning

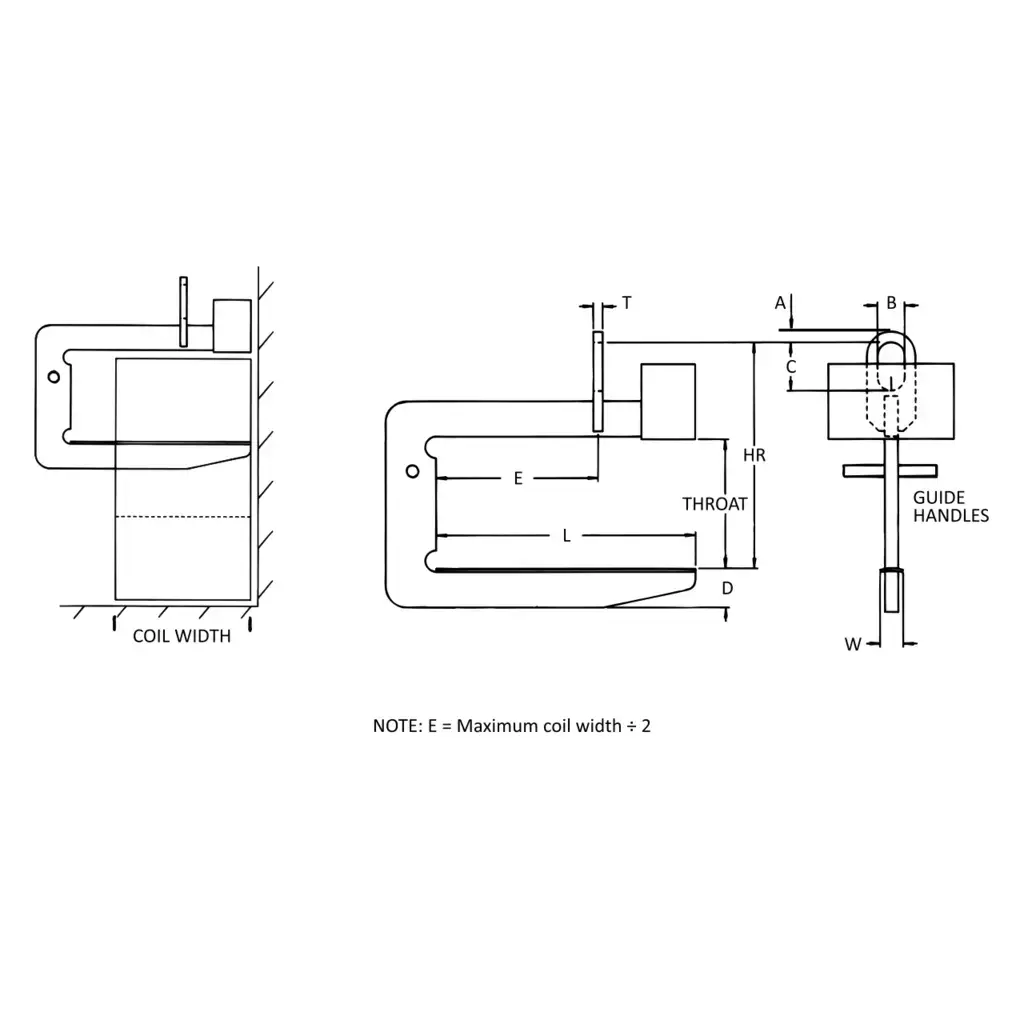

Technical Specifications

Available Models

Common Applications

• Steel mills
• Coil service centers
• Steel warehouses
• Manufacturing facilities
• Coil processing plants
• Metal fabrication
• Stamping plants
• Automotive manufacturing
• Distribution centers
• Heavy industrial facilities

Industries Served

• Primary metals
• Steel processing
• Manufacturing
• Automotive
• Appliance manufacturing
• Shipbuilding
• Heavy fabrication
• Warehousing
• Distribution
• Industrial material handling

Safety Information

• The center of the hoist and bail must remain aligned with the load's center of gravity.
• Always verify hook capacity before lifting.
• Inspect the hook before each use.
• Follow OSHA and ASME lifting procedures.
• Use optional protective padding when handling finished or coated coils.

Frequently Asked Questions

What is the Caldwell Model 82RC used for?

The Model 82RC is a heavy-duty close stacking C-hook designed to lift steel coils while allowing coils to be stored closer together through its recessed counterweight design.

What capacities are available?

The Model 82RC is available in standard capacities from 5 tons to 40 tons.

What makes the 82RC different from the standard Model 82?

The primary difference is the recessed counterweight, which allows operators to stack coils closer together and maximize available warehouse floor space.

Does the hook hang level when empty?

Yes. The Model 82RC is counterbalanced, allowing it to hang level without a load for easier positioning.

How are coils protected during lifting?

The inside hook radius helps prevent coil edge contact, the curved saddle supports the load, and optional padding is available for additional protection of finished coil surfaces.

Is the 82RC compliant with industry standards?

Yes. The Model 82RC is designed to comply with applicable ASME standards for below-the-hook lifting devices.
