Caldwell Model 83E Ergonomic Vertical Eye Coil Lifter

Caldwell Model 83E Ergonomic Vertical Eye Coil Lifter

The Caldwell Model 83E Ergonomic Vertical Eye Coil Lifter is designed to safely and efficiently lift vertically stacked eye coils while reducing operator fatigue and improving handling speed. Its ergonomic operating system allows quick engagement and release of coils while minimizing manual effort, making it an excellent solution for steel service centers, manufacturing facilities, processing plants, and warehouses.

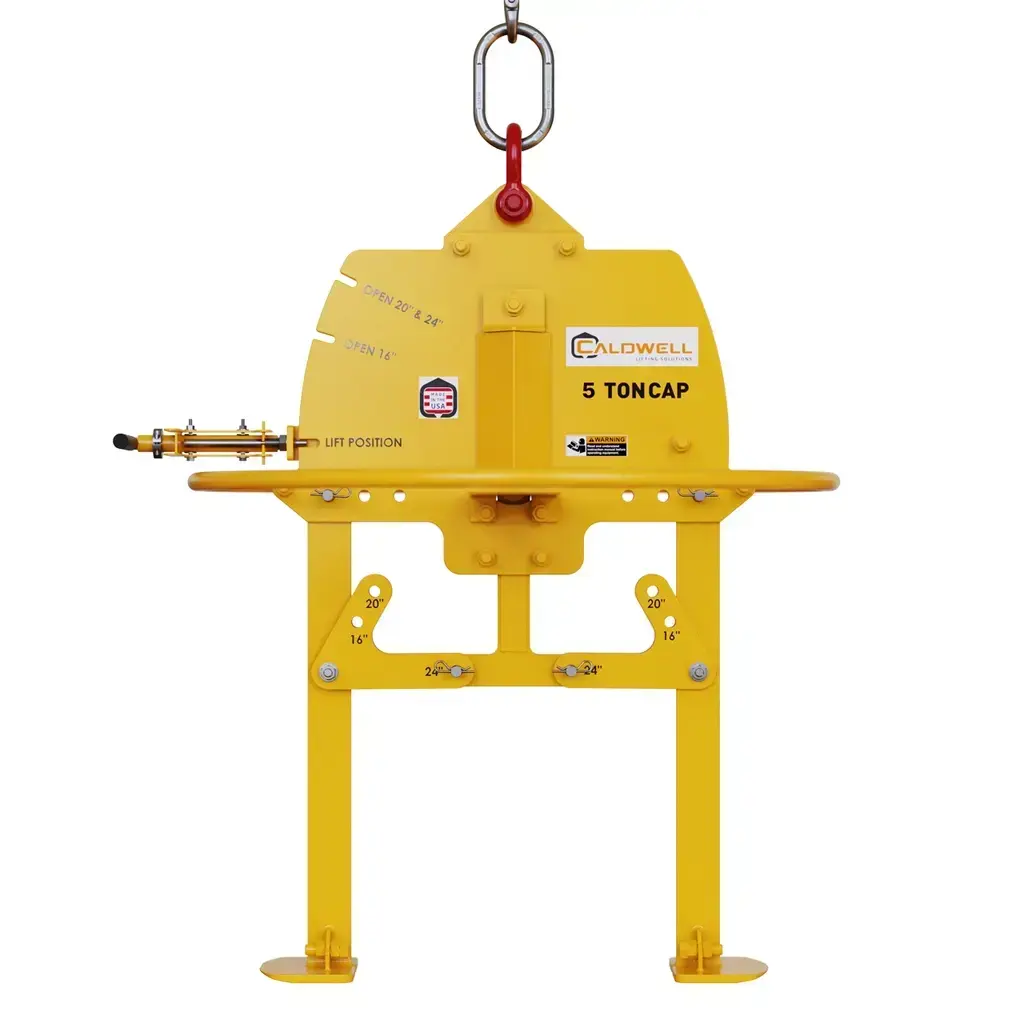

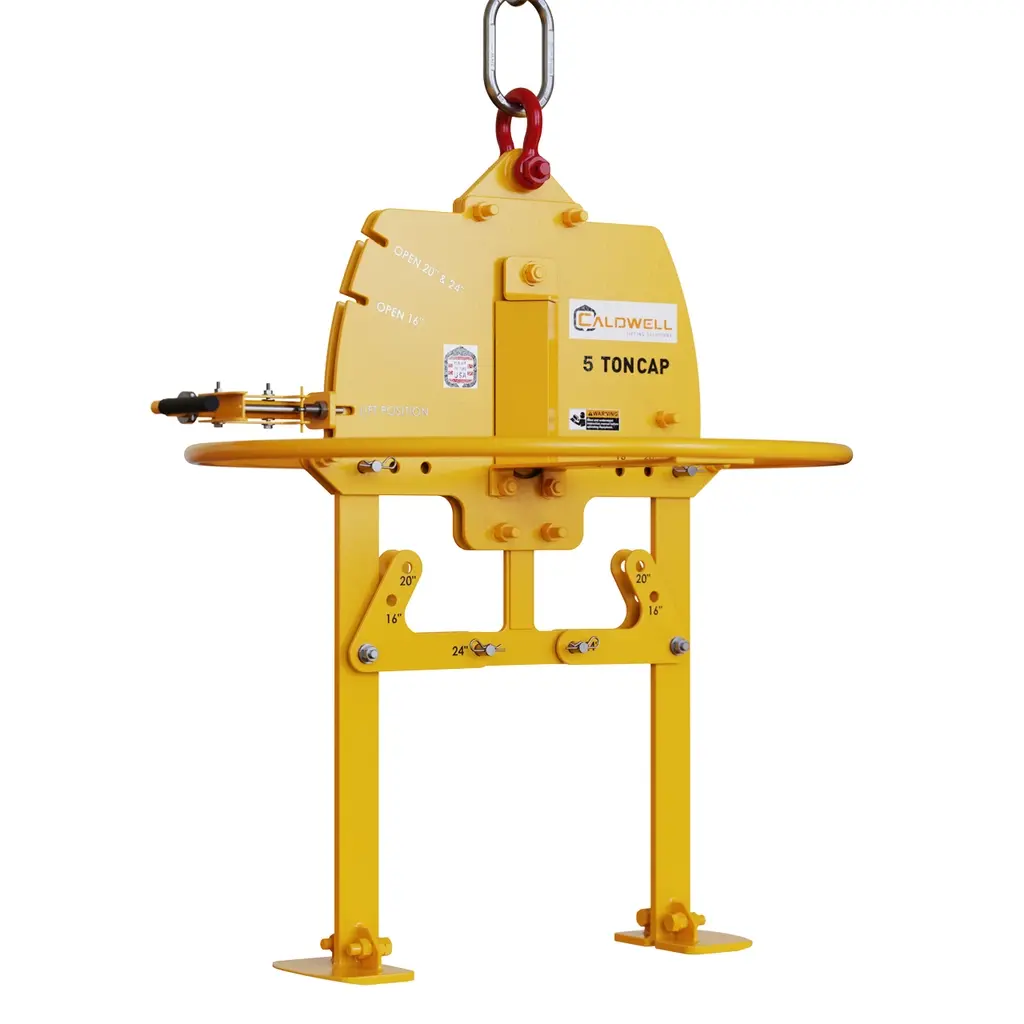

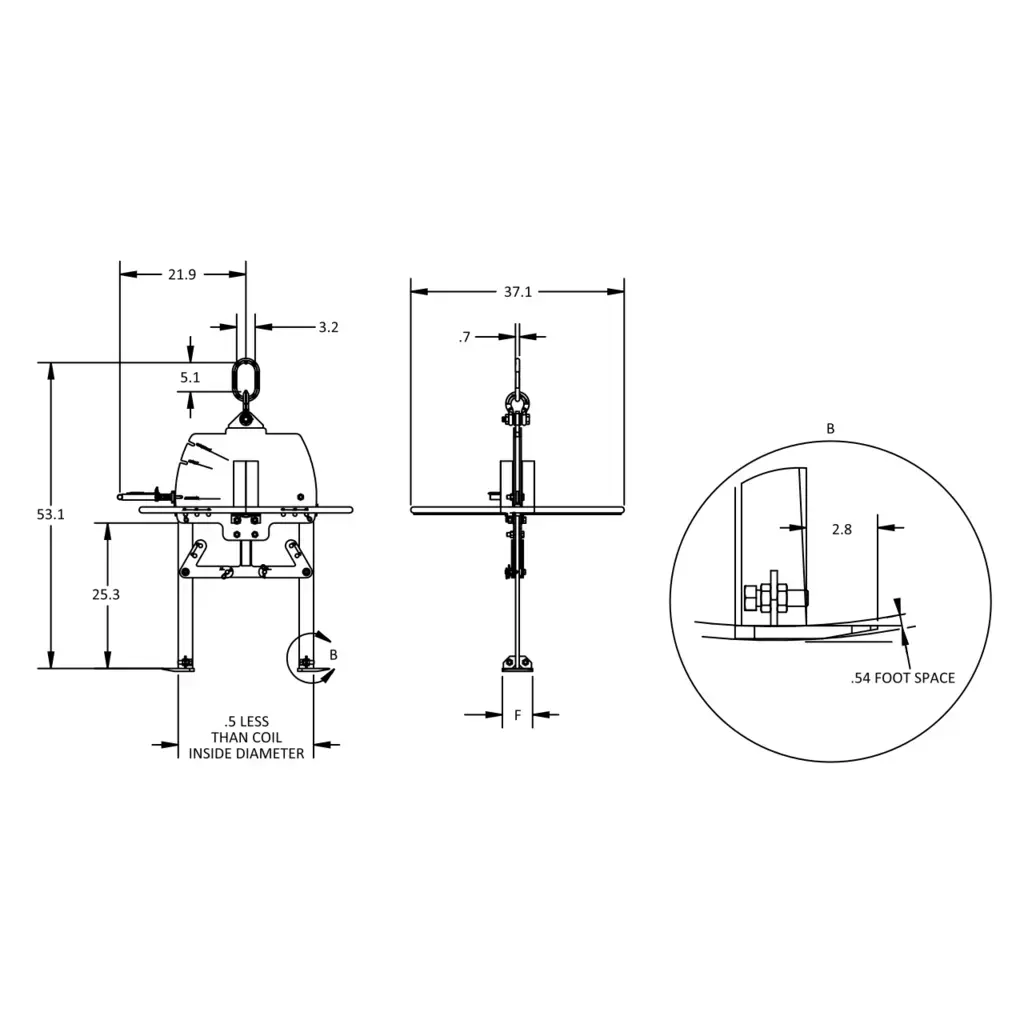

Designed to accommodate 16-inch, 20-inch, and 24-inch coil inside diameters, the Model 83E features an adjustable leg position, ergonomic operating handles, a unique 360° operator guide handle, and spring-loaded locking mechanisms for fast, safe operation. The tapered alloy steel lifting feet are designed to work with 5/8-inch blocking or larger, making it easy to engage vertically stored coils. The lifter complies with applicable ASME standards for below-the-hook lifting devices.

Features

Ergonomic Coil Handling

• Designed for vertically stacked eye coils
• Fast coil engagement and release
• Reduces operator fatigue
• Improves production efficiency
• Excellent visibility during lifting
• Easy manual operation
• Ideal for repetitive lifting applications

Adjustable Coil ID Positions

The Model 83E easily adjusts for:

• 16 in. coil IDs
• 20 in. coil IDs
• 24 in. coil IDs

The adjustable leg mechanism provides quick changeover between common coil sizes without requiring separate lifting devices.

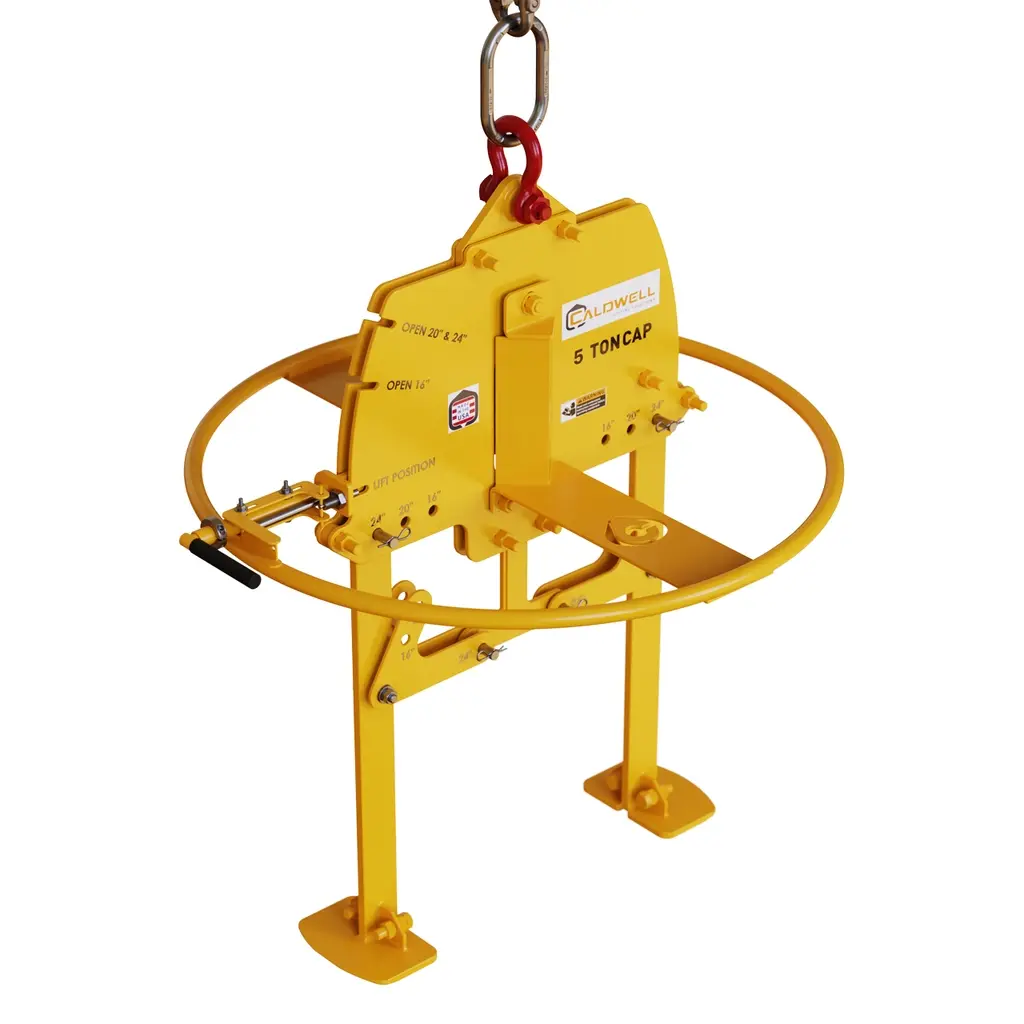

Ergonomic Operating Controls

• Horizontal operating handle
• Spring-loaded pin lever
• Right- or left-hand operation
• Smooth engagement
• Easy release mechanism
• Improved operator comfort

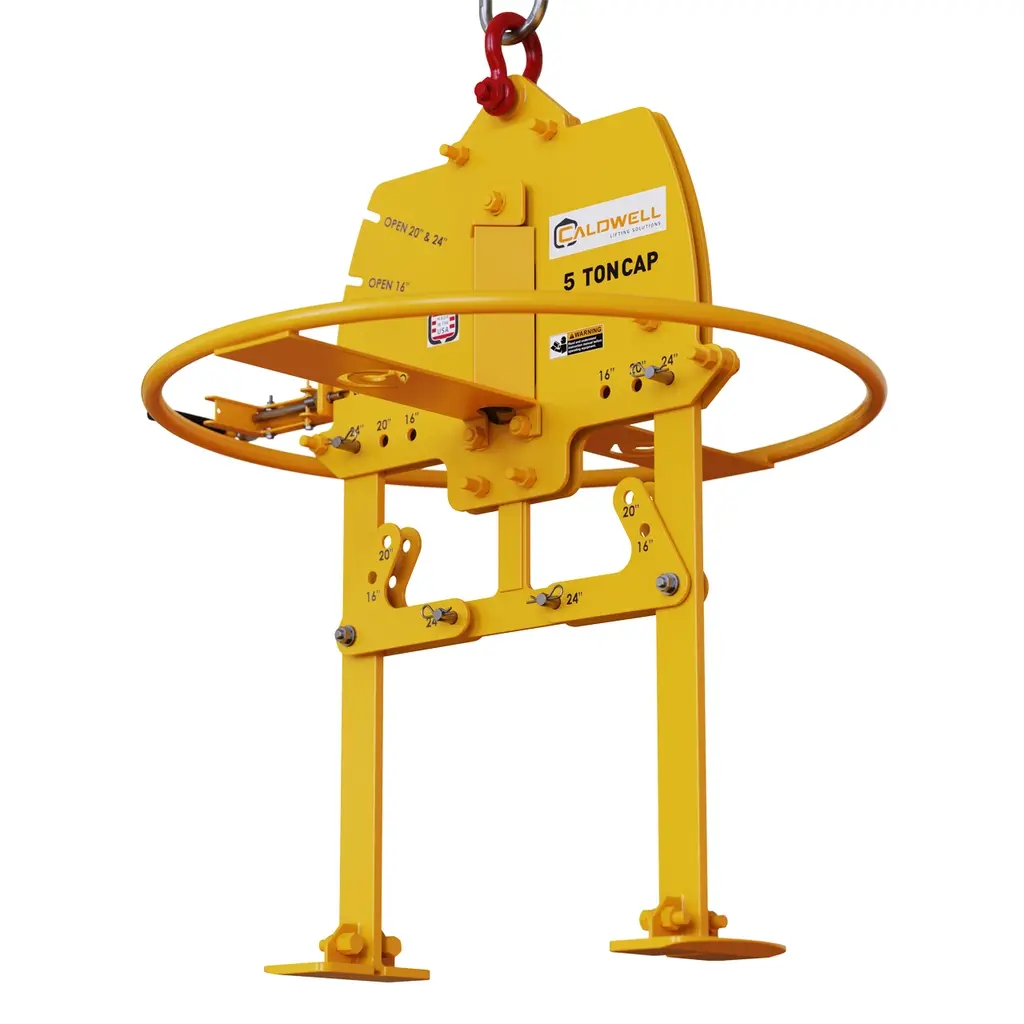

360° Guide Handle

• Full 360° operator guide
• Accessible from any position
• Better load control
• Easier positioning
• Improved safety
• Greater maneuverability

Adjustable Centering Stops

• Improved coil centering
• Better lifting balance
• Consistent positioning
• Faster operation
• Enhanced safety

Spring-Loaded Locking System

• Automatic locking action
• Locks open and closed
• Reliable operation
• Faster engagement
• Reduced operator effort

Heavy-Duty Alloy Steel Feet

• Tapered alloy steel feet
• Designed for 5/8 in. blocking or larger
• Easy insertion beneath coils
• Durable construction
• Long service life

ASME Compliant

• Designed to comply with applicable ASME standards
• Commercial-grade construction
• Engineered for industrial lifting applications

Benefits

• Faster vertical coil handling
• Improved operator ergonomics
• Reduced lifting effort
• Quick adjustment for multiple coil IDs
• Reliable industrial construction
• Excellent visibility
• Increased productivity
• Long service life
• Easy maintenance

Technical Specifications

Available Models

Standard Features

• Ergonomic horizontal operating handle
• Spring-loaded detent pin
• Adjustable leg locations
• Adjustable centering stops
• Reversible operating handle
• Leg link adjustment
• 360° operator guide handle
• Tapered alloy steel lifting feet
• Heavy-duty welded construction
• Industrial powder-coated finish
• Built for continuous commercial service

Ideal Applications

• Steel service centers
• Coil processing plants
• Steel warehouses
• Manufacturing facilities
• Roll forming operations
• Metal stamping plants
• Fabrication shops
• Distribution centers
• Industrial material handling
• Coil storage operations

Industries Served

• Steel processing
• Automotive
• Appliance manufacturing
• Metal fabrication
• Manufacturing
• Warehousing
• Distribution
• Industrial processing
• Heavy manufacturing
• Material handling

Advantages Over Conventional Coil Lifters

Safety Information

• Verify the load does not exceed the rated capacity.
• Ensure coils are properly supported on 5/8-inch or larger blocking before engagement.
• Confirm the lifting feet are fully seated beneath the coil before lifting.
• Inspect all moving components before each use.
• Follow OSHA, ASME, and facility lifting procedures.
• Never transport personnel with the lifting device.

Frequently Asked Questions

What is the Caldwell Model 83E used for?

The Model 83E is designed for safely lifting vertically stacked eye coils with 16-inch, 20-inch, or 24-inch inside diameters while improving ergonomics and operator efficiency.

What capacities are available?

The Model 83E is offered in 3-ton and 5-ton capacities.

Which coil sizes can it handle?

The adjustable leg system accommodates 16-inch, 20-inch, and 24-inch inside diameter coils.

What makes the Model 83E ergonomic?

It features a horizontal operating handle, spring-loaded locking lever, reversible controls for right- or left-handed users, and a unique 360° guide handle for improved operator comfort and control.

What blocking is required?

The tapered alloy steel feet are designed to work with 5/8-inch blocking or thicker beneath the coil.

Does the Model 83E comply with industry standards?

Yes. The Model 83E is designed to comply with applicable ASME standards for below-the-hook lifting devices.
