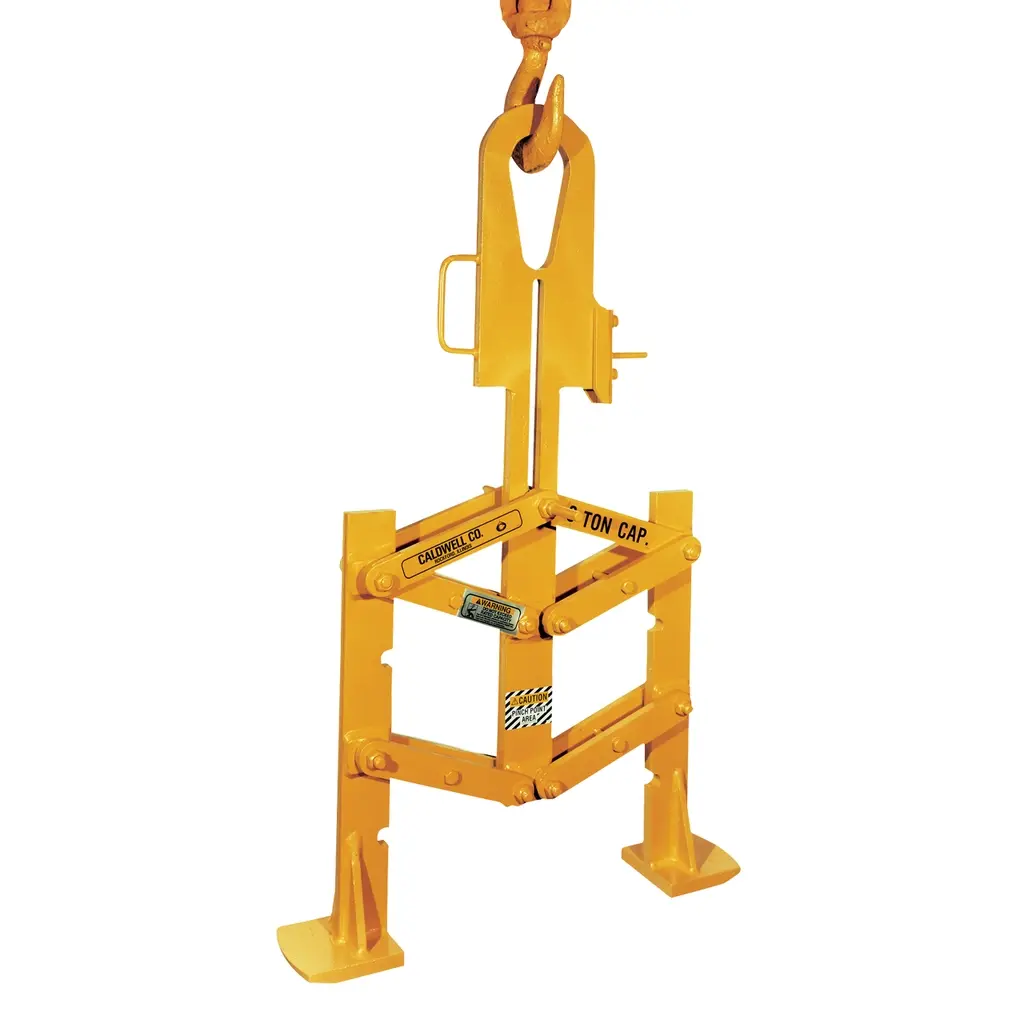

The Caldwell Model 83EW Ergonomic Vertical Eye Coil Lifter with Wide Legs is engineered to safely lift, transport, and position vertically stored eye coils while accommodating wider coil widths than the standard Model 83E. Featuring an ergonomic operating system, adjustable lifting legs, and a heavy-duty welded steel construction, the 83EW improves operator comfort, enhances safety, and increases productivity in steel service centers, metal processing facilities, manufacturing plants, and warehouses.

Designed for 16-inch, 20-inch, and 24-inch inside diameter coils, the 83EW incorporates extra-wide adjustable lifting legs, allowing it to handle a broader range of coil widths while maintaining proper balance and load stability. The ergonomic operating handle, spring-loaded locking system, adjustable centering stops, and 360° rotating guide handlemake positioning and releasing coils faster and easier during repetitive lifting operations.

The lifter is available in 3-ton, 5-ton, and 10-ton capacities and is manufactured in accordance with applicable ASME B30.20 and ASME BTH-1 design standards for below-the-hook lifting devices.

Features

Wide Leg Design

• Designed for wider vertical eye coils
• Increased leg spacing for larger coil widths
• Improved load stability
• Better support across wider coils
• Excellent for heavy industrial applications
• Adjustable leg configuration

Ergonomic Operation

• Horizontal ergonomic operating handle
• Reduces operator fatigue
• Smooth engagement and release
• Right- or left-hand operation
• Faster production cycles
• Improved operator comfort

Adjustable Coil ID Compatibility

Compatible with:

• 16 in. coil ID
• 20 in. coil ID
• 24 in. coil ID

Adjustable lifting legs allow one lifter to handle multiple common coil inside diameters without additional tooling.

360° Rotating Guide Handle

• Full-circle guide handle
• Easy positioning from any angle
• Better operator control
• Improved safety
• Easier alignment
• Faster load engagement

Adjustable Centering Stops

• Maintains proper coil alignment
• Improves load balance
• Faster positioning
• Consistent lifting performance
• Increased operating efficiency

Spring-Loaded Locking Mechanism

• Positive locking action
• Automatic engagement
• Quick release
• Reliable operation
• Reduces manual effort
• Built for repetitive use

Heavy-Duty Lifting Feet

• Tapered alloy steel lifting feet
• Designed for 5/8 in. minimum blocking
• Easy insertion beneath coils
• High-strength construction
• Long service life

Heavy-Duty Steel Construction

• Welded structural steel frame
• Commercial-grade durability
• Industrial powder-coated finish
• Built for continuous operation
• Long operating life

ASME Compliant

• Designed to applicable ASME standards
• Manufactured for below-the-hook lifting
• Commercial lifting equipment
• Industrial safety design

Benefits

• Accommodates wider eye coils
• Improves operator ergonomics
• Reduces lifting effort
• Faster coil engagement
• Handles multiple coil IDs
• Excellent visibility during operation
• Heavy-duty industrial construction
• Long service life
• Improves workplace productivity

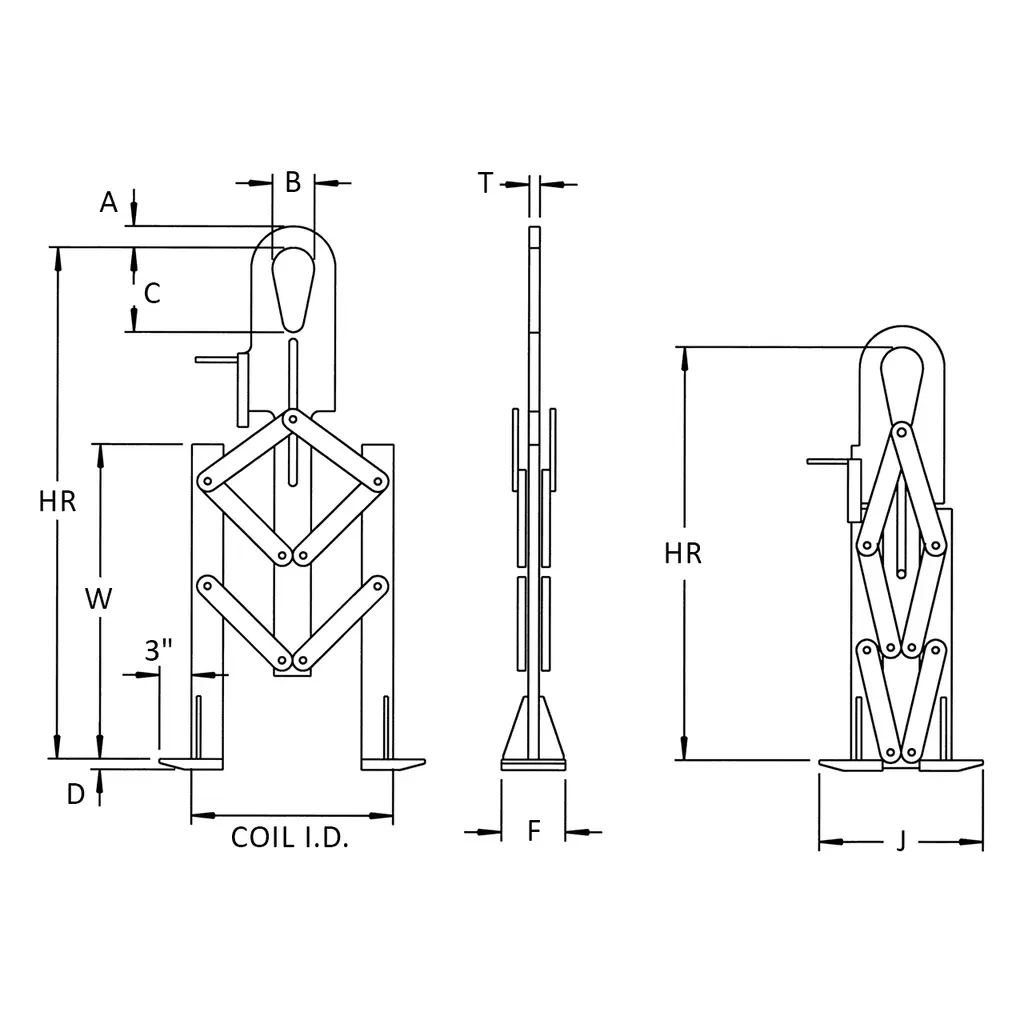

Technical Specifications

Available Models

Standard Features

• Wide adjustable lifting legs
• Ergonomic operating handle
• Reversible operating controls
• Spring-loaded locking system
• Adjustable leg positions
• Adjustable centering stops
• 360° rotating guide handle
• Heavy-duty welded construction
• Tapered alloy steel lifting feet
• Industrial powder-coated finish

Ideal Applications

• Steel service centers
• Coil processing facilities
• Manufacturing plants
• Steel warehouses
• Roll forming operations
• Stamping facilities
• Metal fabrication
• Distribution centers
• Industrial material handling
• Heavy manufacturing

Industries Served

• Steel processing
• Automotive
• Appliance manufacturing
• Metal fabrication
• Manufacturing
• Warehousing
• Distribution
• Industrial processing
• Heavy equipment manufacturing
• Material handling

Advantages of the Wide Leg Design

Safety Information

• Always verify the load is within the rated lifting capacity.
• Ensure coils are supported on 5/8-inch minimum blocking before engaging the lifting feet.
• Confirm the lifting feet are fully inserted beneath the coil before lifting.
• Inspect all pins, locking mechanisms, and moving parts before each use.
• Follow OSHA, ASME B30.20, and ASME BTH-1 requirements for below-the-hook lifting devices.
• Never lift or transport personnel.

Frequently Asked Questions

What is the Caldwell Model 83EW used for?

The Model 83EW is designed to safely lift and transport vertical eye coils, particularly wider coils that require increased leg spacing for improved stability.

What capacities are available?

The 83EW is available in 3-ton, 5-ton, and 10-ton capacities.

What coil inside diameters can it handle?

The adjustable lifting legs accommodate 16-inch, 20-inch, and 24-inch coil inside diameters.

What is the advantage of the wide leg design?

The wide leg configuration provides greater support and stability for wider coils while maintaining proper load balance during lifting.

Does the Model 83EW include ergonomic features?

Yes. It includes an ergonomic horizontal operating handle, a 360° rotating guide handle, adjustable centering stops, and a spring-loaded locking mechanism to reduce operator effort and improve productivity.

Does the Model 83EW meet industry standards?

Yes. The Model 83EW is designed in accordance with ASME B30.20 and ASME BTH-1 standards for below-the-hook lifting equipment.
