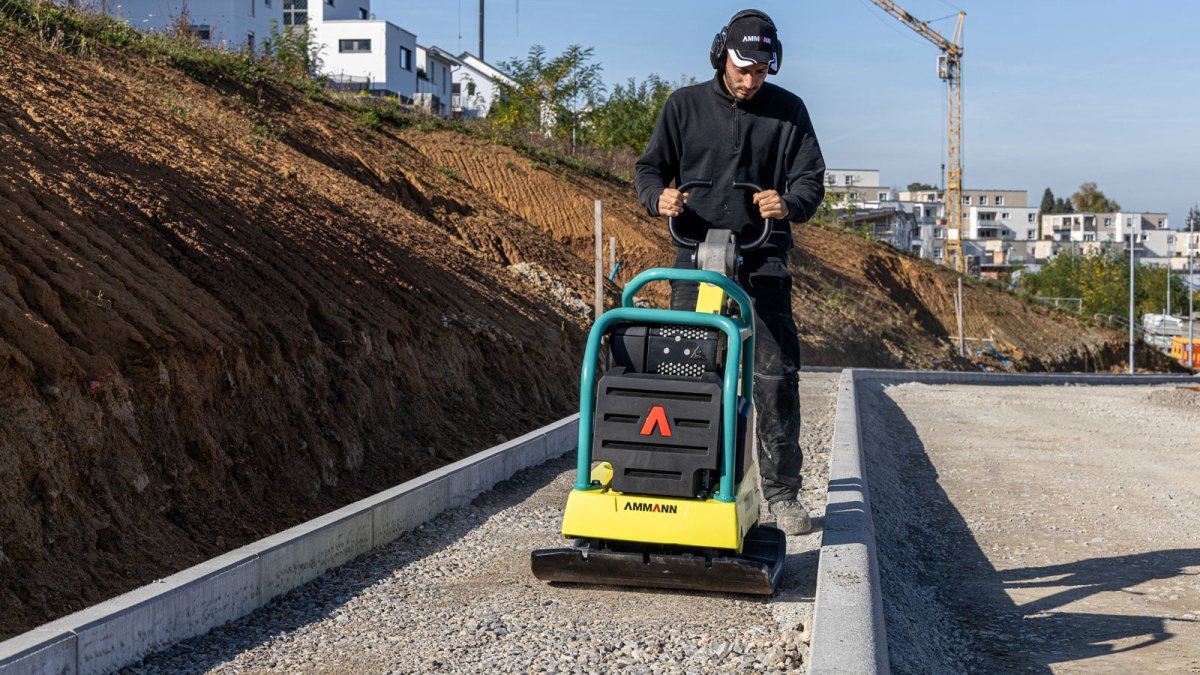

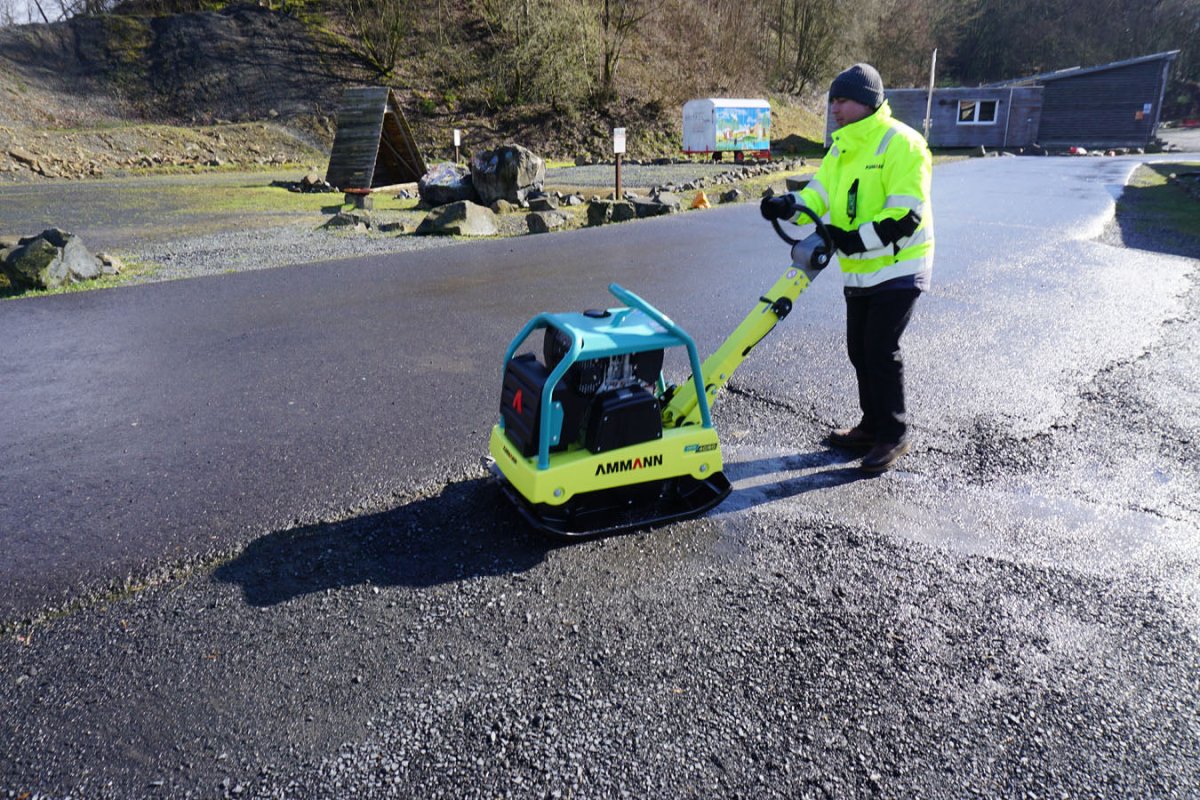

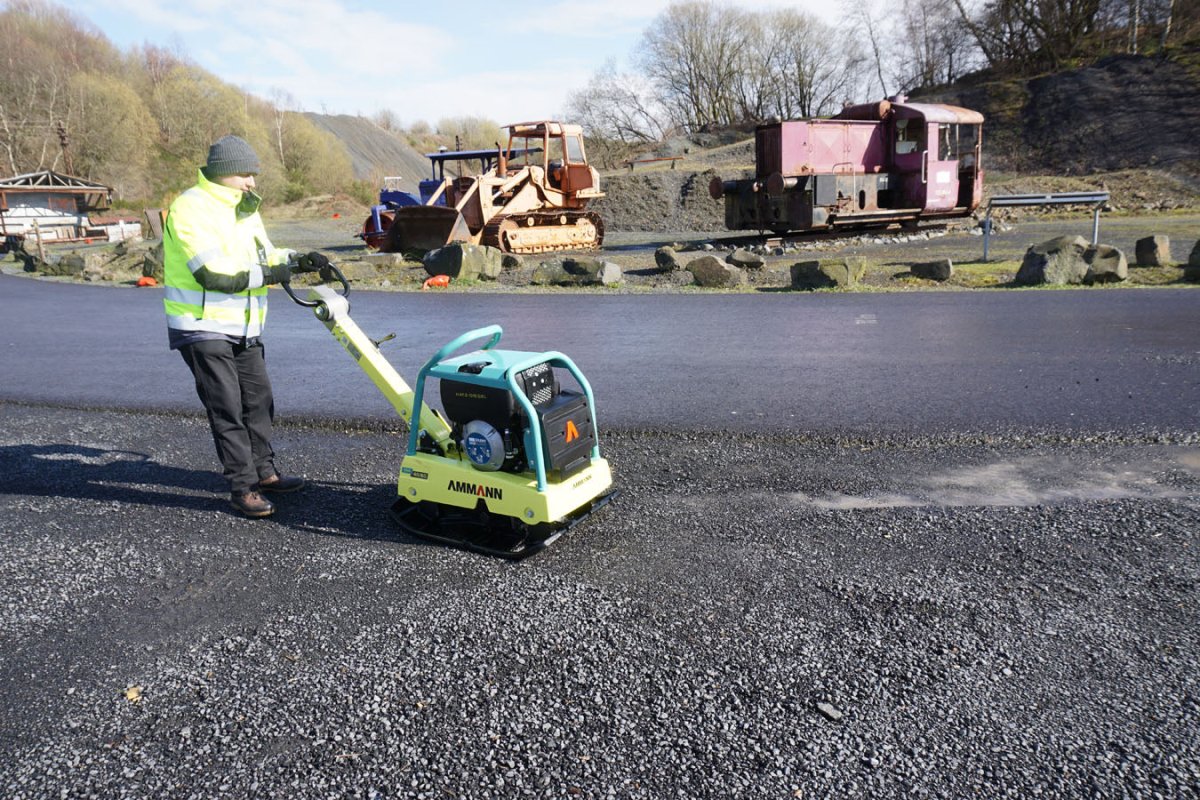

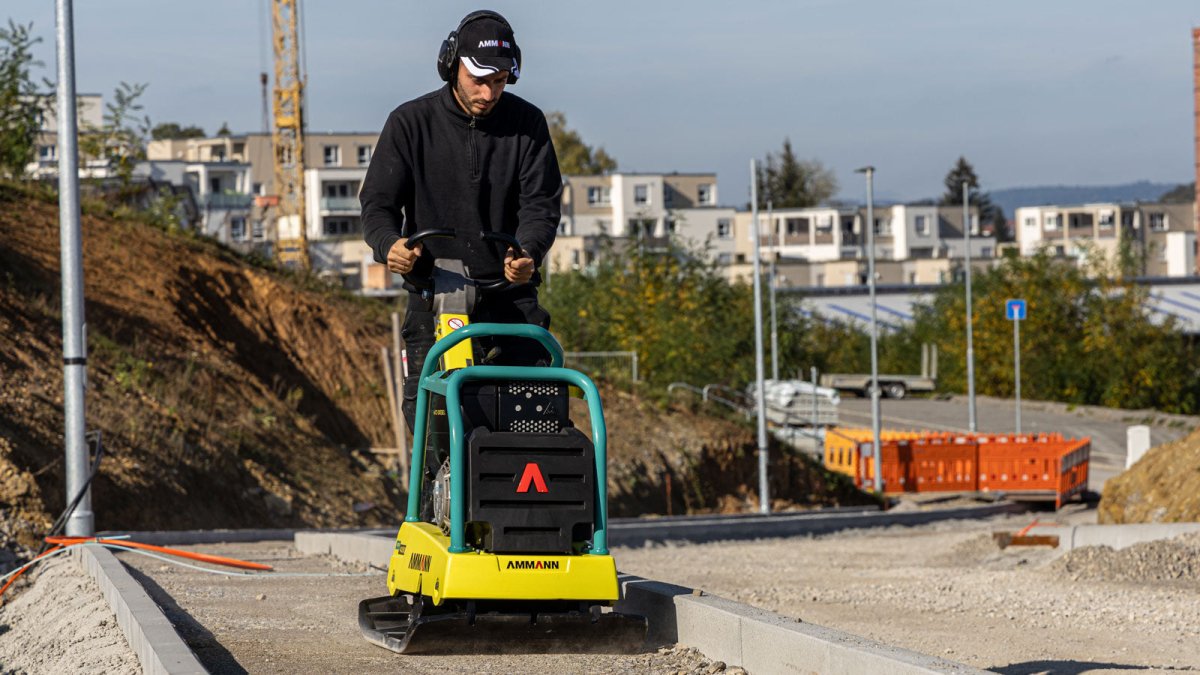

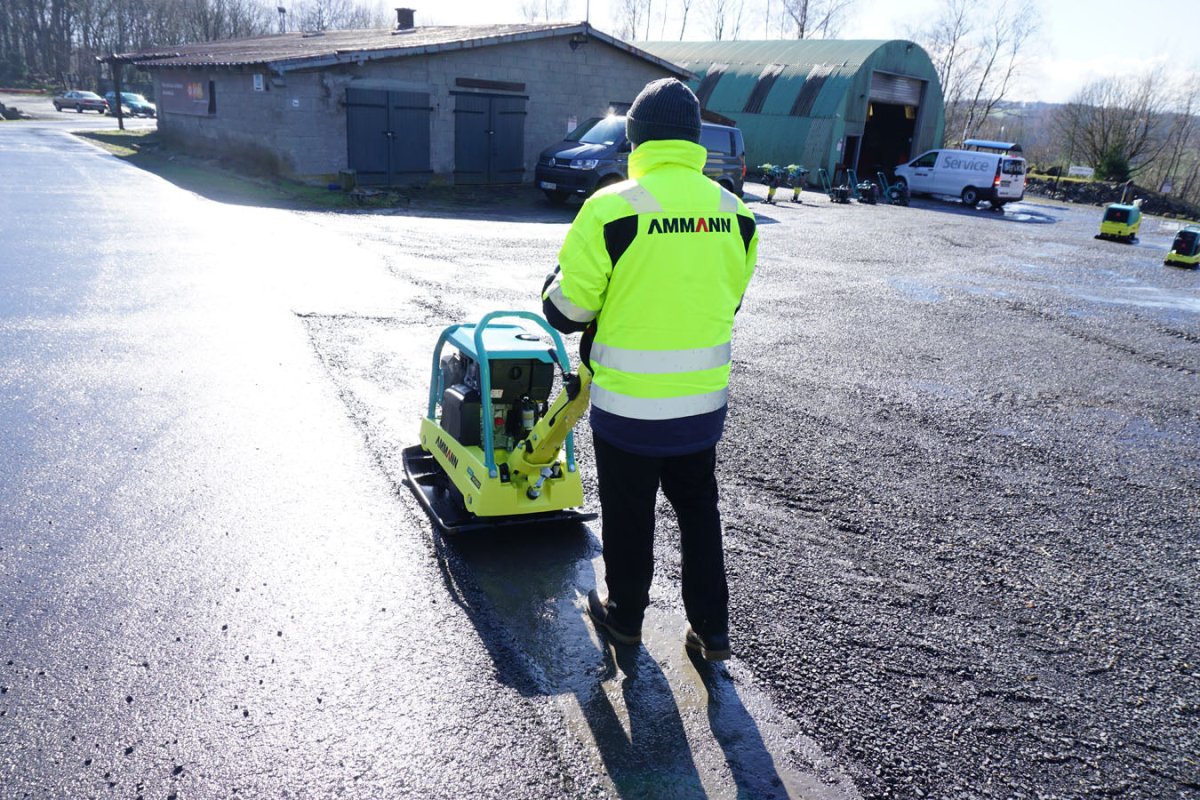

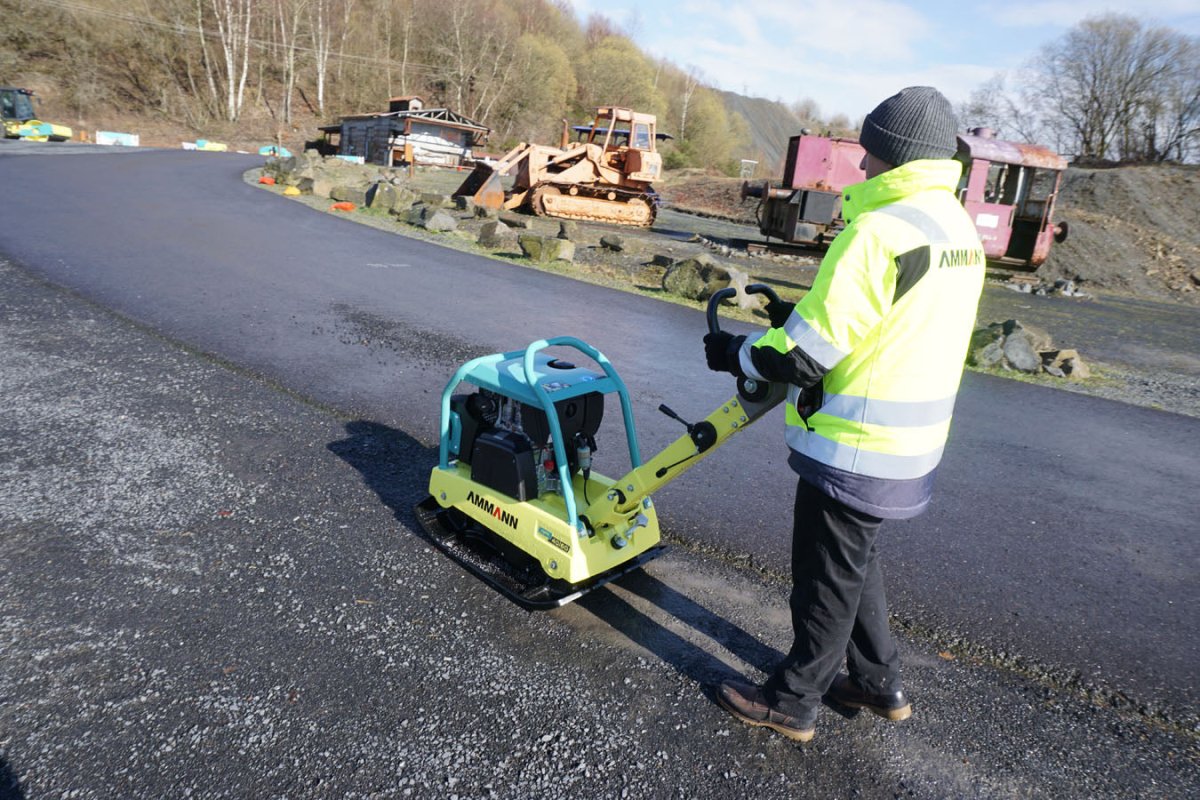

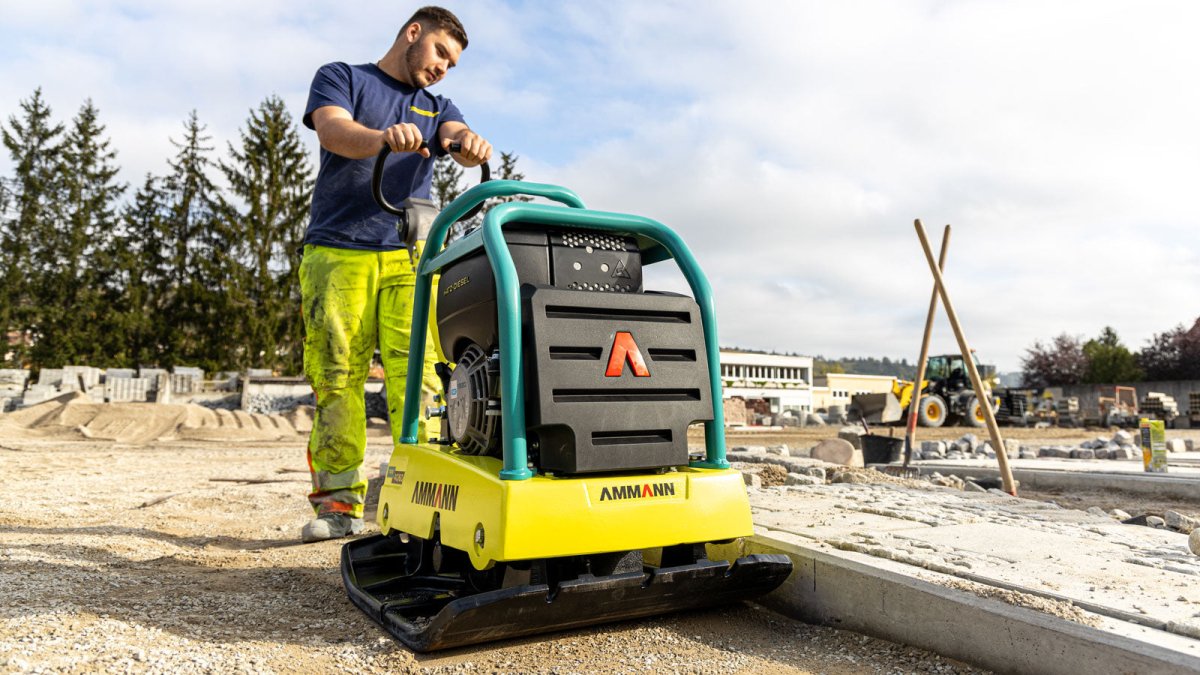

Productivity on any ground.  The APR 40/60 has good capabilities with a working width of 60 cm. It is often the vibratory plate of choice for contractors working with pavement blocks with thicknesses up to 10 cm.

An optional available, toolless mountable rubber mat helps prevent damage during the compaction process. When working on other surfaces and in other applications. the APR 40/60 showcases operator friendly features and performance characteristics of all Ammann Vibratory Plate Compactors.



HYDROSTATIC STEERING

The hydrostatic forward and reverse steering of APR plates enables quick directional changes and the ability to compact in tight and hard-to-reach spaces.



INDUSTRY-LEADING LOW HAV LEVELS

An innovative handle concept lowers the hand-arm vibration (HAV) values on Ammann APR plates to a level of less than 2.5 m/sec², making work more comfortable and safer. The vibration levels are so low that safety codes do not require documentation of operator hours.

+ better machine control
+ reduced operator fatigue
+ optimal operator health and safety

INTUITUVE OPERATION AND SAFETY

The handle provides ideal grip and enables simple, intuitive machine operation by simply pushing or pulling. The open design of the handle prevents machine damage that can result from accidental lifting. The handle folds for easy transport.

BUILT-IN DURABILITY

A robust and durable frame protects the plate from tough jobsites or improper use. The open design grants easy access for service and machine operation, ensuring the proper maintenance is undertaken to maximise machine life. The centrifugal clutch and wear resistant V belt are well protected by an additional cover that keeps out water and dirt.

BUILT-IN EFFICIENCY

The hydrostatic setting enables “on-the-spot” vibration in particularly challenging areas. The machine essentially hovers – no forward or reverse movement is required – while providing maximum compaction output that enables quick results.

BUILT-IN SAFETY

The innovative handle improves safety by reducing HAV values below 2.5 m/sec2 while also enabling precise control. The operator simply pushes or pulls the handle to engage the machine in forward or reverse. No separate controls or steering are required.

WEIGHT & DIMENSIONS
Petrol Diesel
MACHINE WEIGHT 263 kg 269 kg
MACHINE WEIGHT (WITH OPTIONS) 284 kg
A = BASE PLATE LENGTH 410 mm 410 mm
B = MACHINE LENGTH 860 mm 860 mm
C = WITH HANDLE 1364 mm 1364 mm
D = MACHINE HEIGHT 780 mm 810 mm
E = HANDLE HEIGHT (WORK) 1000 mm 1000 mm
F = HANDLE HEIGHT (TRANSPORT) 1180 mm 1180 mm
G = MACHINE WIDTH 600 mm 600 mm



ENGINE
ENGINE Honda GX 270 Hatz 1B30
FUEL Petrol Diesel
ENGINE OUTPUT 6.0 kW / 8.0 HP 4.5 kW / 6.0 HP
AT RPM 3100 2900
FUEL CONSUMPTION 2.1 l/h 1.3 l/h



COMPACTION FORCES
MAX. VIBRATION FREQUENCY 65 Hz 65 Hz
MAX. CENTRIFUGAL FORCE 42 kN 42 kN
WORKING SURFACE 1044 m²/h 900 m²/h
SPEC. SURFACE PRESSURE 17,1 N/cm² 17,1 N/cm²
AMPLITUDE 2.5 mm 2.5 mm



MISCELLANEOUS
HAND-ARM VIBRATIONS < 2.5m/sec² < 2.5m/sec²
SPEED 29 m/min 25m/min
FUEL TANK 5.3 l 5.0 l
GRADEABILITY 35% 35%
MAX. INCLINE TO ALL SIDES 20° 30°
