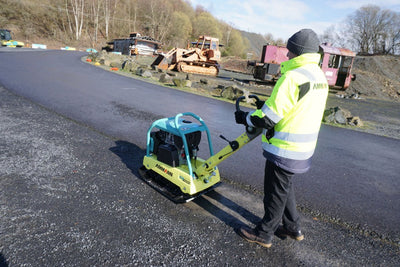

APR 40/60 Reversible Plates

Productivity on any ground.  The APR 40/60 has good capabilities with a working width of 60 cm. It is often the vibratory plate of choice for contractors working with pavement blocks with thicknesses up to 10 cm.

An optional available, toolless mountable rubber mat helps prevent damage during the compaction process. When working on other surfaces and in other applications. the APR 40/60 showcases operator friendly features and performance characteristics of all Ammann Vibratory Plate Compactors.



HYDROSTATIC STEERING

The hydrostatic forward and reverse steering of APR plates enables quick directional changes and the ability to compact in tight and hard-to-reach spaces.



INDUSTRY-LEADING LOW HAV LEVELS

An innovative handle concept lowers the hand-arm vibration (HAV) values on Ammann APR plates to a level of less than 2.5 m/sec², making work more comfortable and safer. The vibration levels are so low that safety codes do not require documentation of operator hours.

+ better machine control
+ reduced operator fatigue
+ optimal operator health and safety

INTUITUVE OPERATION AND SAFETY

The handle provides ideal grip and enables simple, intuitive machine operation by simply pushing or pulling. The open design of the handle prevents machine damage that can result from accidental lifting. The handle folds for easy transport.

BUILT-IN DURABILITY

A robust and durable frame protects the plate from tough jobsites or improper use. The open design grants easy access for service and machine operation, ensuring the proper maintenance is undertaken to maximise machine life. The centrifugal clutch and wear resistant V belt are well protected by an additional cover that keeps out water and dirt.

BUILT-IN EFFICIENCY

The hydrostatic setting enables “on-the-spot” vibration in particularly challenging areas. The machine essentially hovers – no forward or reverse movement is required – while providing maximum compaction output that enables quick results.

BUILT-IN SAFETY

The innovative handle improves safety by reducing HAV values below 2.5 m/sec² while also enabling precise control. The operator simply pushes or pulls the handle to engage the machine in forward or reverse. No separate controls or steering are required.

WEIGHT & DIMENSIONS
	Petrol	Diesel
MACHINE WEIGHT	263 kg	269 kg
MACHINE WEIGHT (WITH OPTIONS)	–	284 kg
A = BASE PLATE LENGTH	410 mm	410 mm
B = MACHINE LENGTH	860 mm	860 mm
C = WITH HANDLE	1364 mm	1364 mm
D = MACHINE HEIGHT	780 mm	810 mm
E = HANDLE HEIGHT (WORK)	1000 mm	1000 mm
F = HANDLE HEIGHT (TRANSPORT)	1180 mm	1180 mm
G = MACHINE WIDTH	600 mm	600 mm



ENGINE
ENGINE	Honda GX 270	Hatz 1B30
FUEL	Petrol	Diesel
ENGINE OUTPUT	6.0 kW / 8.0 HP	4.5 kW / 6.0 HP
AT RPM	3100	2900
FUEL CONSUMPTION	2.1 l/h	1.3 l/h



COMPACTION FORCES
MAX. VIBRATION FREQUENCY	65 Hz	65 Hz
MAX. CENTRIFUGAL FORCE	42 kN	42 kN
WORKING SURFACE	1044 m²/h	900 m²/h
SPEC. SURFACE PRESSURE	17,1 N/cm²	17,1 N/cm²
AMPLITUDE	2.5 mm	2.5 mm



MISCELLANEOUS
HAND-ARM VIBRATIONS	< 2.5m/sec²	< 2.5m/sec²
SPEED	29 m/min	25m/min
FUEL TANK	5.3 l	5.0 l
GRADEABILITY	35%	35%
MAX. INCLINE TO ALL SIDES	20°	30°
