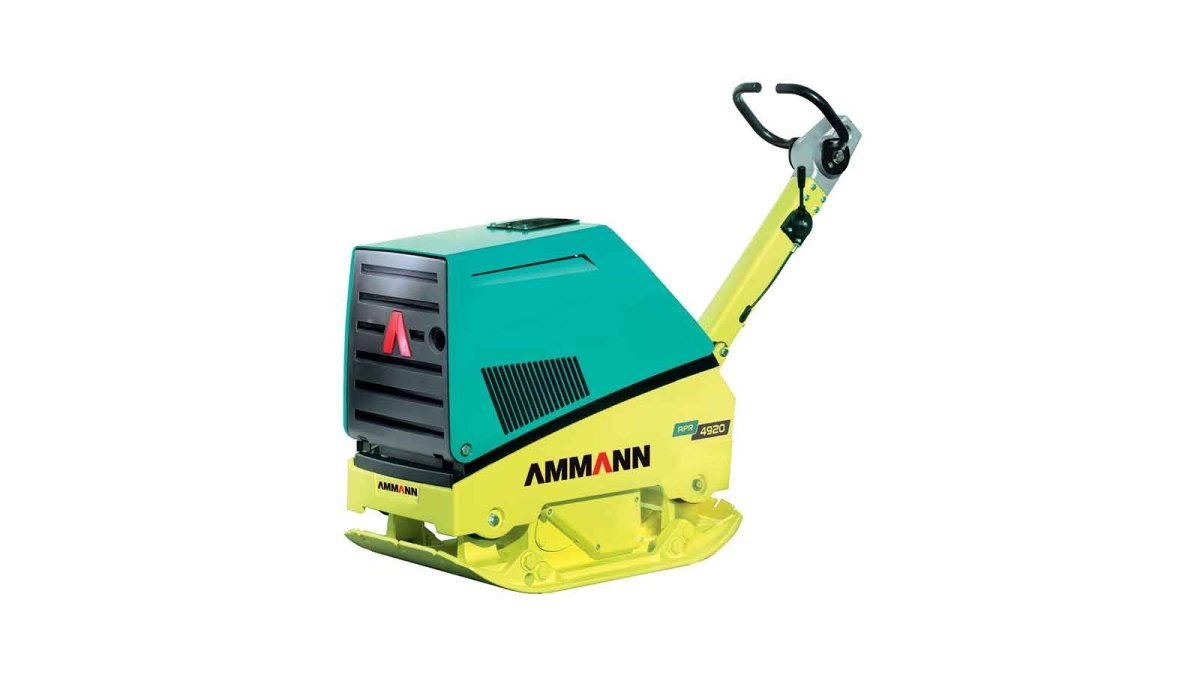

The APR 49/20 features good manoeuvrability and power with an 8,2 kw engine available to help with climbing and, ultimately, compaction.

The machine performs at grades up to 30 per cent.

The APR 49/20 is heavier than most of the vibratory plates with the exception of the APR 59/20.

Working widths of 450 mm can be broadened with extensions of 75 mm and 150 mm. The engine hood is durable and protective but also grants great accessibility for servicing.

  • Operator friendly, vibration-cushioned guide handle that is foldable for easy transportation
  • Smooth variable hydrostatic forward and reverse motion including the possibility for “on-the-spot” vibration
  • Easy, ergonomic handling
  • Maintenance friendly two-shaft exciter unit with long service intervals and lifetime
  • Wear-resistant, self-cleaning base plate
  • Well-protected, robust centrifugal clutch with wear-resistant V belt
  • Powerful petrol or diesel engine
  • Other options include a rubber mat for asphalt paver applications, hour meter and an electric starter
WEIGHT & DIMENSIONS
MACHINE WEIGHT 391 kg
WITH EXTENSION PLATES 75 mm 413 kg
WITH EXTENSION PLATES 150 mm 424 kg
A = BASE PLATE LENGTH 450 mm
B = MACHINE LENGTH 898 mm
C = WITH HANDLE 1485 mm
D = MACHINE HEIGHT 817 mm
E = HANDLE HEIGHT (WORK) 1000 mm
F = HANDLE HEIGHT (TRANSPORT) 1285 mm
G = MACHINE WIDTH 450 mm



ENGINE
ENGINE Hatz 1B40
FUEL Diesel
ENGINE OUTPUT 6.6 kW / 8.8 HP
AT RPM 2900



COMPACTION FORCES
MAX. VIBRATION FREQUENCY 65 Hz
MAX. CENTRIFUGAL FORCE 49 kN
WORKING SURFACE 945 m²/h
WITH EXTENSION PLATES 75 mm 1260 m²/h
WITH EXTENSION PLATES 150 mm 1575 m²/h



MISCELLANEOUS
SPEED 35 m/min
FUEL TANK 5 l
GRADEABILITY 30 %
MAX. INCLINE TO ALL SIDES 25 °
