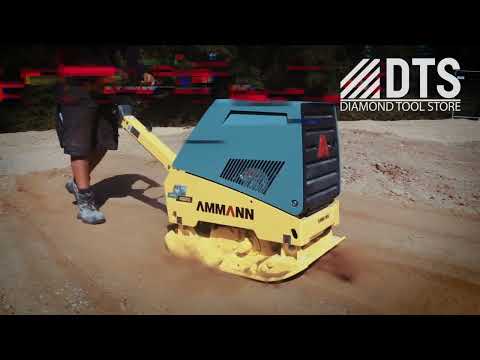

APR 49/20 Reversible Plates

The APR 49/20 features good manoeuvrability and power with an 8,2 kw engine available to help with climbing and, ultimately, compaction.

The machine performs at grades up to 30 per cent.

The APR 49/20 is heavier than most of the vibratory plates with the exception of the APR 59/20.

Working widths of 450 mm can be broadened with extensions of 75 mm and 150 mm. The engine hood is durable and protective but also grants great accessibility for servicing.

• Operator friendly, vibration-cushioned guide handle that is foldable for easy transportation
• Smooth variable hydrostatic forward and reverse motion including the possibility for “on-the-spot” vibration
• Easy, ergonomic handling
• Maintenance friendly two-shaft exciter unit with long service intervals and lifetime
• Wear-resistant, self-cleaning base plate
• Well-protected, robust centrifugal clutch with wear-resistant V belt
• Powerful petrol or diesel engine
• Other options include a rubber mat for asphalt paver applications, hour meter and an electric starter

WEIGHT & DIMENSIONS
MACHINE WEIGHT	391 kg
WITH EXTENSION PLATES 75 mm	413 kg
WITH EXTENSION PLATES 150 mm	424 kg
A = BASE PLATE LENGTH	450 mm
B = MACHINE LENGTH	898 mm
C = WITH HANDLE	1485 mm
D = MACHINE HEIGHT	817 mm
E = HANDLE HEIGHT (WORK)	1000 mm
F = HANDLE HEIGHT (TRANSPORT)	1285 mm
G = MACHINE WIDTH	450 mm



ENGINE
ENGINE	Hatz 1B40
FUEL	Diesel
ENGINE OUTPUT	6.6 kW / 8.8 HP
AT RPM	2900



COMPACTION FORCES
MAX. VIBRATION FREQUENCY	65 Hz
MAX. CENTRIFUGAL FORCE	49 kN
WORKING SURFACE	945 m²/h
WITH EXTENSION PLATES 75 mm	1260 m²/h
WITH EXTENSION PLATES 150 mm	1575 m²/h



MISCELLANEOUS
SPEED	35 m/min
FUEL TANK	5 l
GRADEABILITY	30 %
MAX. INCLINE TO ALL SIDES	25 °
