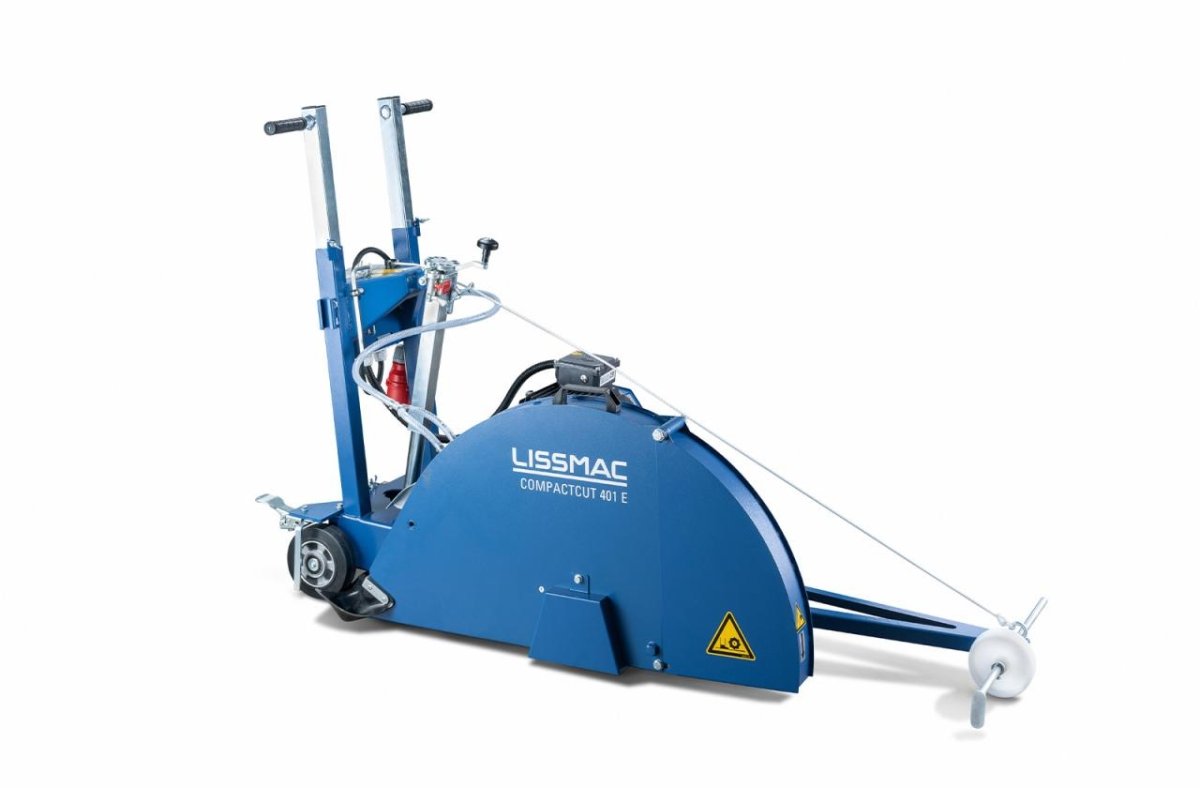

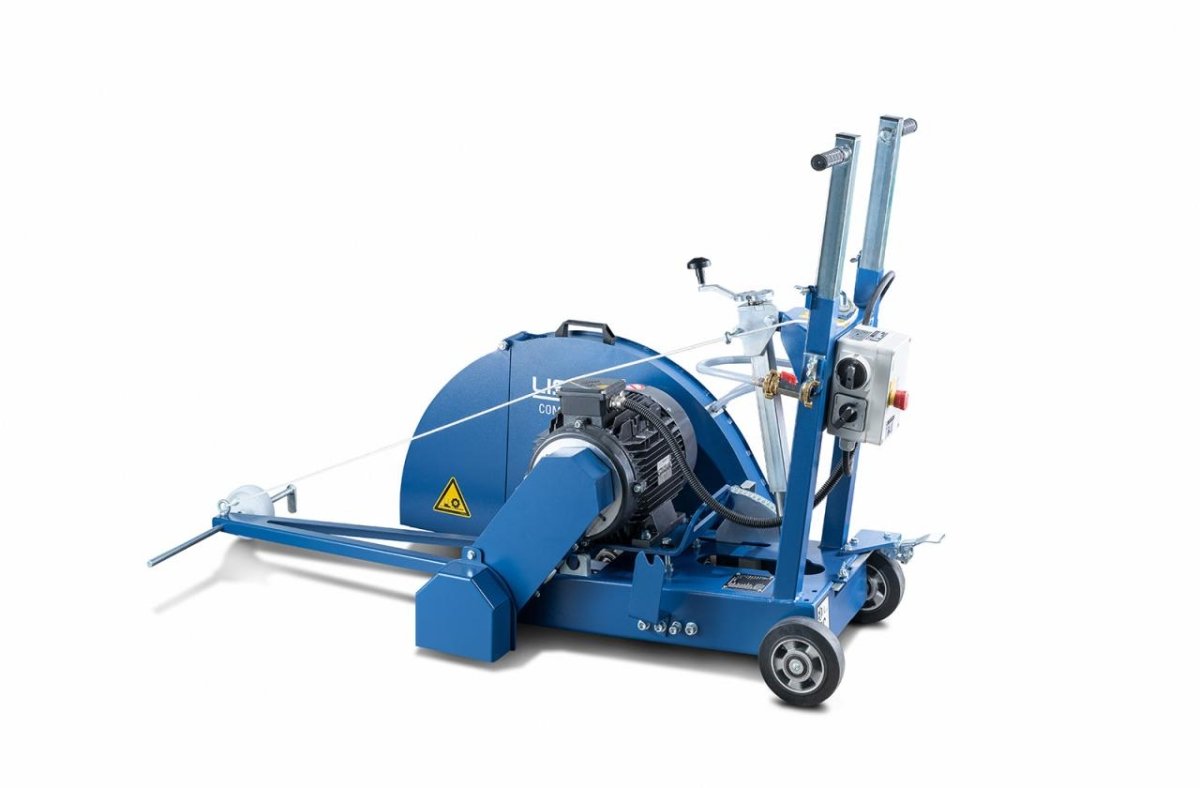

COMPACTCUT 401 E Floor Saw does not come with a blade guard.  Blade Guard is an optional choice

Excellent All-Rounder Which Is Especially Good For Interiors And Tight Construction Sites. With Optional Equipment, It Masters The Task Of Joint Cutting Flush With The Wall.


  • The LISSMAC electric floor saws operate quietly and are thus particularly suitable for cutting work on and in buildings
  • The lowering and lifting of the saw blade is continuous by means of a threaded spindle,thus damage to the saw blade can be avoided.
  • Optimum speed of the saw blade shaft.
  • Saw hood foldable at the front for overcuts
  • Excellent directional stability due to optimal centre of gravity of the machine to the blade

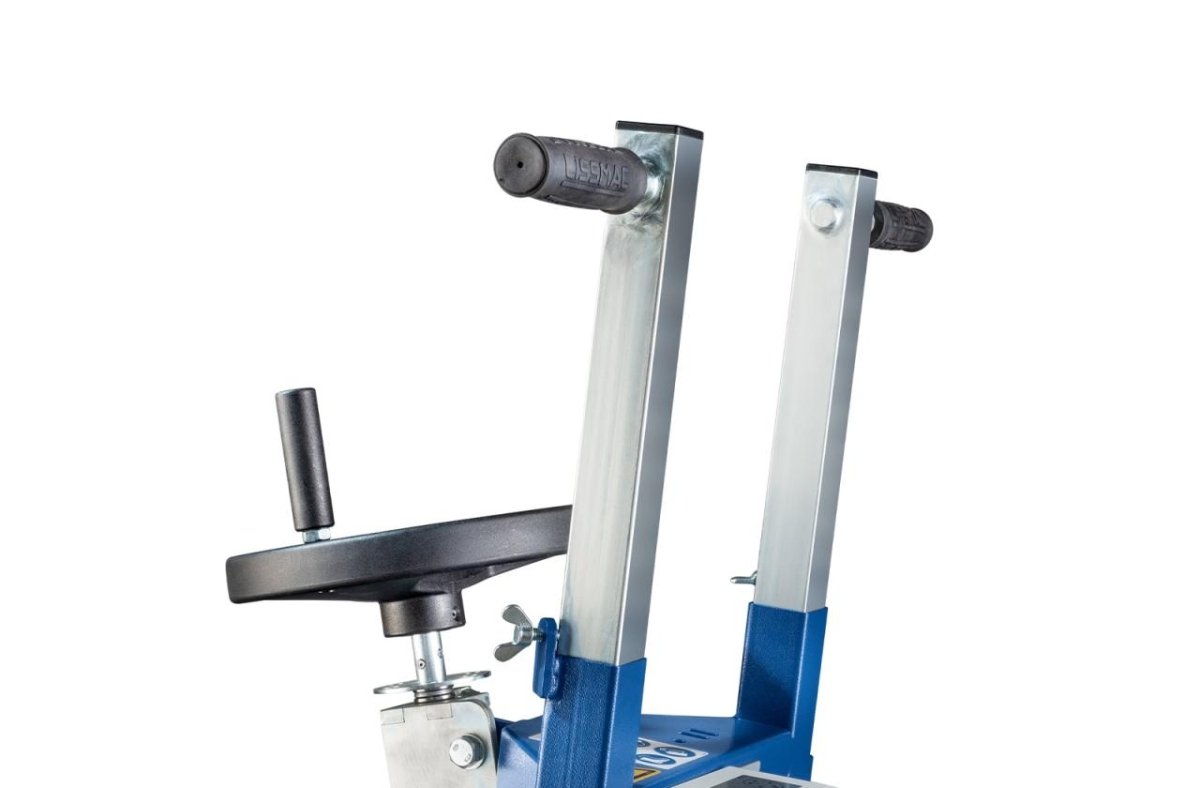

  • Handles height adjustable and variably pluggable for ergonomic work
  • Easily convertible from left to right cut in just a few simple movements
  • Fork spray directly through the hood
  • Optimum weight distribution on the front wheels ensures high tracking and sawing accuracy
  • Adjustable depth of cut display
  • Stable dipstick in H-shape
  • Continuous saw blade shaft with V-belt drive
  • Saw blade excavation via low-maintenance rocker design

Optionally available with wall-flush hood:

  • Patented wall-flush saw system with 800 mm wall-sliding saw hood and wall-flush saw blade holder.
  • Wall-flush joint cutting according to the current machinery directive or C-norm guaranteed.
  • The machine is equipped with the required protective device according to DIN EN 13862.


  • cutting depth: 320 mm
  • cutting depth setting: handwheel - threaded spindle
  • saw blade Ø max.: 800 mm
  • arbor size: 25.4 mm (6 x M8 - TK125)
  • drive motor: electric
  • output power max.: 7.5 kW / 400 V / 32 A
  • saw blade speed: 1250 1/min
  • left/right cut: yes
  • dimensions (L/W/H): 990 / 580 / 850 mm
  • weight: 156 kg
