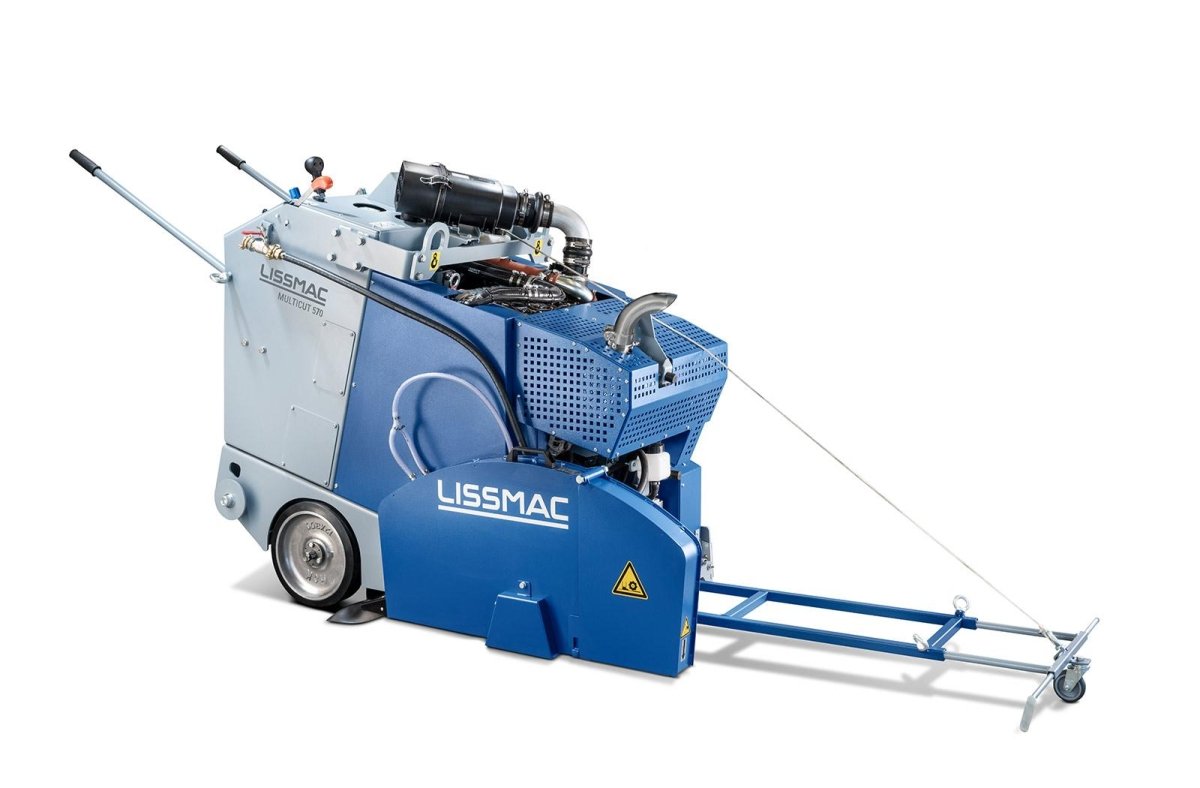

Multicut 570 Concrete Diesel Flat Saws

Power And Comfort With No Compromises. The Diesel Floor Cutter With 4-Speed Gearbox Impresses With Cutting Performance, Versatility And Ease Of Use. It Has Been Designed For Big Tasks.

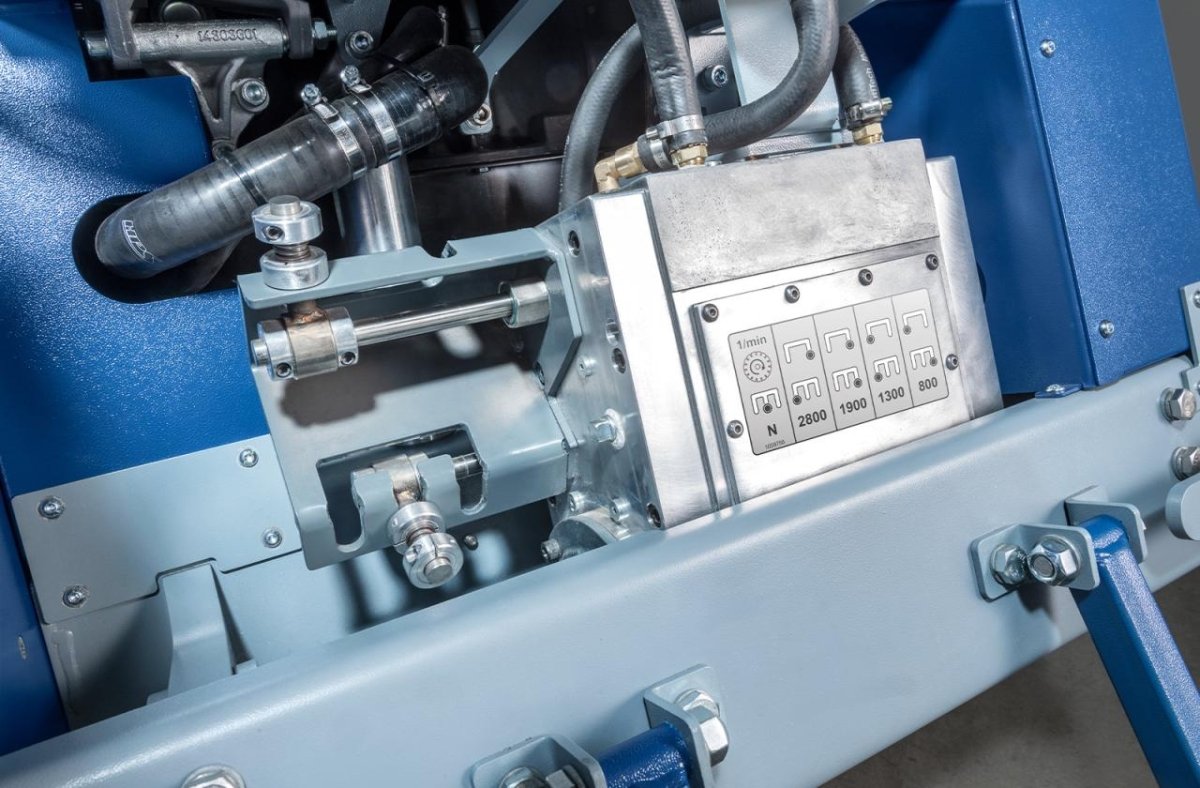

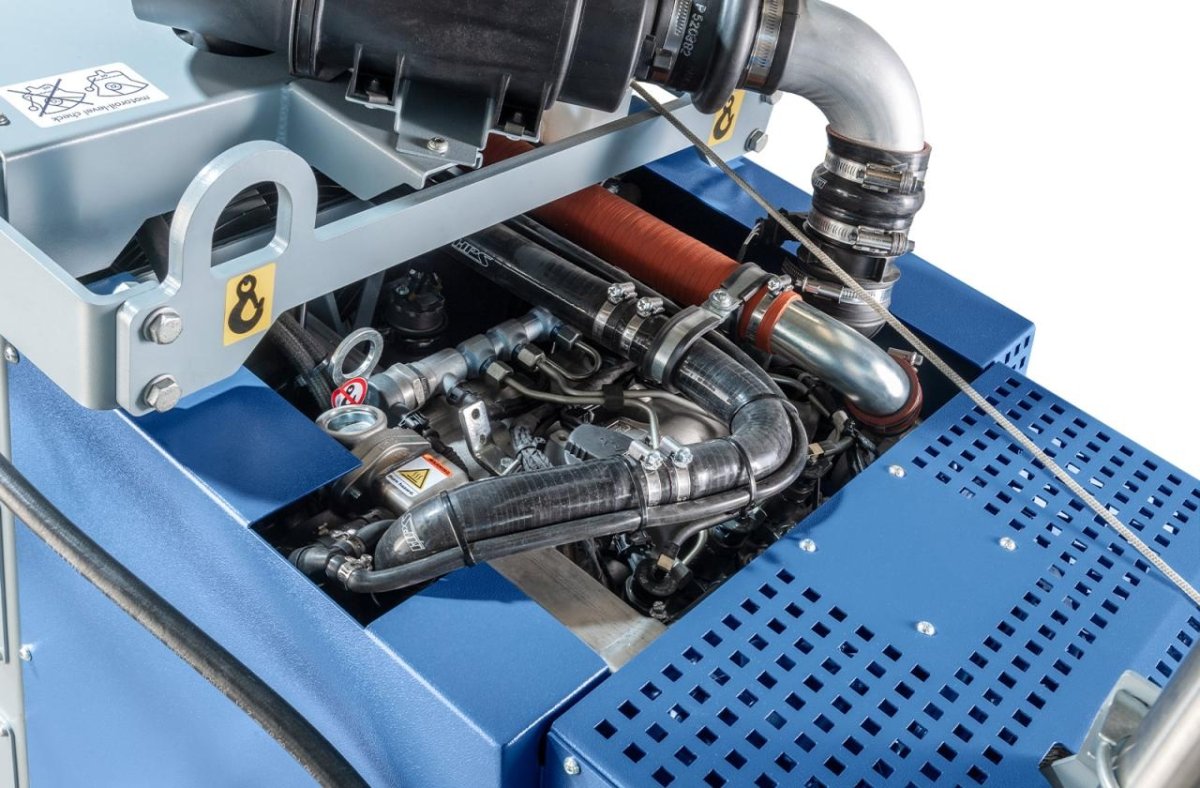

The high-performance diesel floor cutter was designed in close collaboration with customers and is top of the class for cutting performance and user-friendliness. Its 42 kW / 57 hp Hatz diesel engine meets the Euro Stage V emissions standard consistently driving saw blades with a diameter of up to 1,000 mm at their optimum speed via its torque-increasing 4-speed manual transmission. The maximum cutting depth of the diesel floor cutter is 420 mm. The diesel floor saw, designed for demanding continuous operation in road construction, renovation work and repair work, has a hydrostatic drive that is both powerful and sensitively adjustable. This extremely durable and reliable floor cutter has proven itself when making separating cuts in asphalt and concrete as well as for powerful floor cutting in fresh concrete.

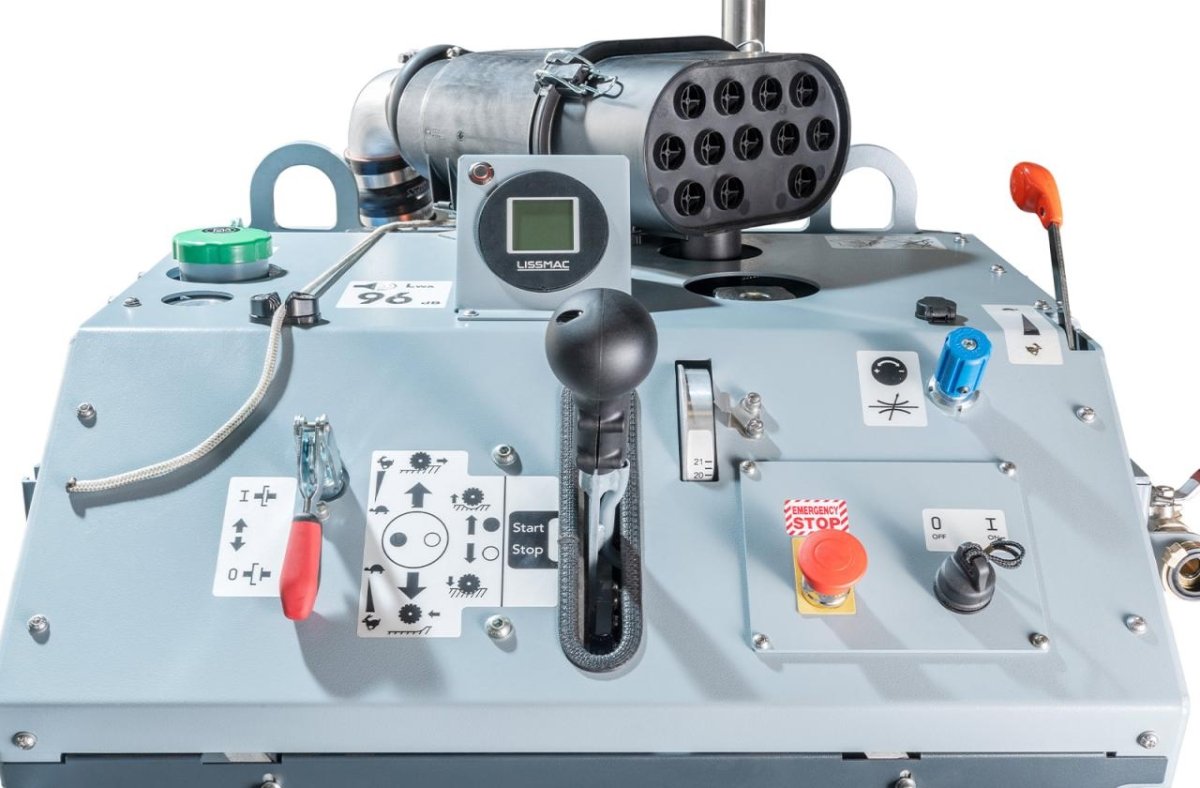

The compact design and the balanced chassis make it easy to move the machine around the construction site. The extremely low center of gravity ensures an exact saw cut every time. Raising and lowering the saw blade can be controlled electro-hydraulically. This saves the operator's energy but also extends the service life of the valuable cutting blade. Ergonomic features include height-adjustable handles and the possibility of manoeuvring the diesel floor saw with its weight over the rear axle in a way that is easy on the operator’s back. For overcuts, the saw blade protective hood can be folded up at the front as standard. The rapid conversion of the saw from left to right cutting also speeds up the progress of work on the construction site.

The diesel floor cutter is number one for performance and reliability. The ergonomics of the machine, which were developed in collaboration with users, is also first class. Discover the advantages of the MULTICUT 570:

TECHNICAL DATA
