Wood's Powr-Grip MRTALPCH Series Panel Channel Plus Lifter

Wood's Powr-Grip MRTALPCH Series Panel Channel Plus Lifter Low-Profile Vacuum Lifting for Glass & Panel Installation

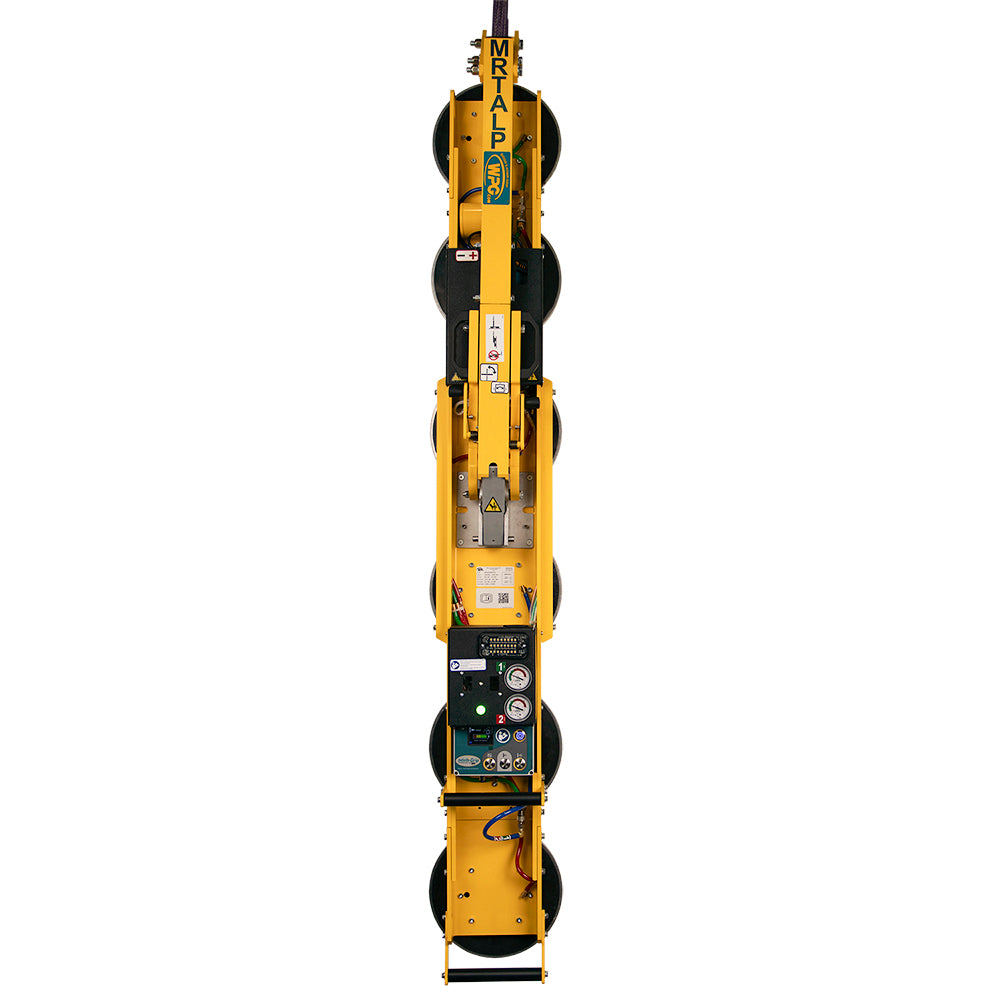

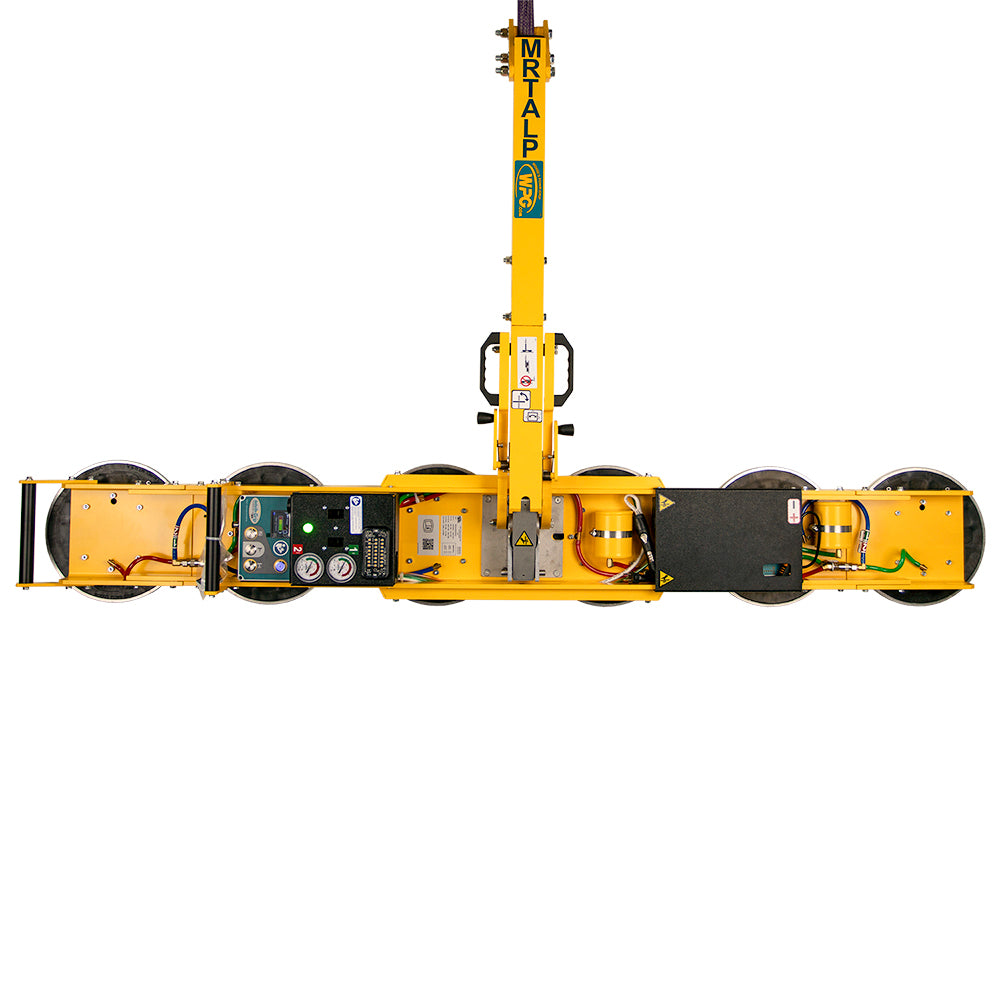

The Wood's Powr-Grip MRTALPCH Series Panel Channel Plus Lifter is a professional-grade, DC-powered vacuum panel lifter engineered for contractors and glazing professionals who need reliable lifting performance in confined or tight spaces. Available in two configurations—Stock #98738 (MRTALPCH611LDC3) for flat, smooth glass up to 1,100 lbs (500 kg), and Stock #98736 (MRTALPCH610TDC3) for textured surfaces, Insulated Metal Panels, and Cold Storage Panels up to 900 lbs (410 kg)—this lifter covers a broad range of panel and glazing applications. Its channel-style, low-profile design allows it to operate in narrow spaces where conventional lifters cannot fit, making it a practical choice for complex installation environments.

Unlike standard vacuum lifters, the MRTALPCH Series is equipped with Intelli-Grip® Technology, which actively monitors vacuum and power systems in real time to maximize safety and operational efficiency while simplifying maintenance and diagnostics. The dual vacuum system provides redundant holding security, and the optional Remote Control System (Stock #59906) extends operational range up to 250 ft (76 m), enabling single-operator installation on multi-story buildings. An optional Adaptor Kit (Stock #57326) allows VPFS10T Pads to be installed for expanded Insulated Metal Panel handling capability.

Key Features & Benefits

Intelli-Grip® Technology

Intelli-Grip® continuously monitors both the vacuum and power systems, displaying diagnostic codes and operational data to keep the operator informed at all times. This automated monitoring reduces the risk of undetected vacuum loss and streamlines troubleshooting and maintenance, lowering downtime on the job site. The system is compatible with a mobile app for submitting lifter data directly to Wood's Powr-Grip for remote support.

Dual Vacuum System

The dual vacuum circuit design provides two independent vacuum paths, so if one circuit experiences a leak or fault, the other continues to hold the load securely. This redundancy is critical when lifting large glass panels or heavy cold storage and insulated metal panels where load drops are unacceptable. The system also features a vacuum reserve tank to maintain holding pressure during pump cycling.

Low-Profile Channel Design

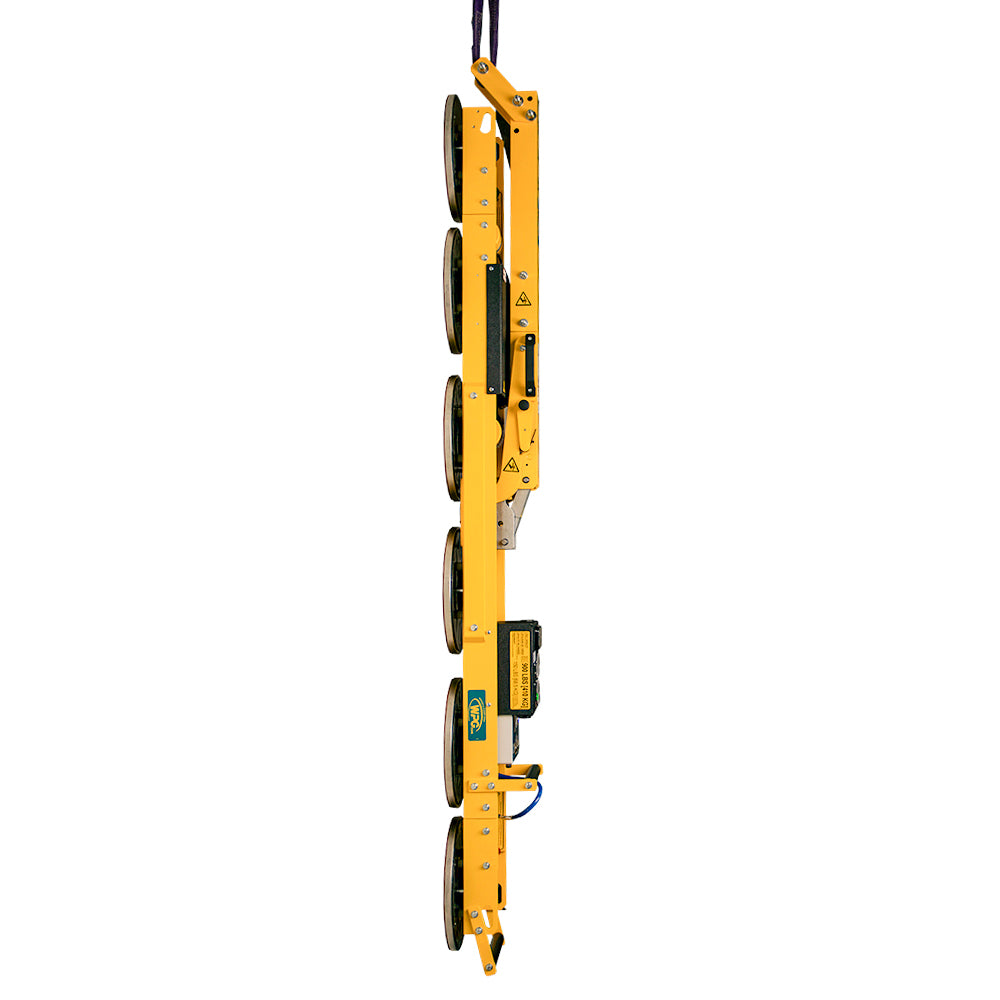

The MRTALPCH Series uses a channel-style frame based on Wood's Powr-Grip's proven P1 Lifter Series architecture, purpose-built with a low-profile geometry that allows it to fit into narrow gaps and tight installation zones. Contractors working in curtain wall, storefront, and panel installation applications frequently encounter clearance limitations that this design directly addresses. The configurable pad frame also supports extensions for varying load sizes.

Manual Rotator / Tilter

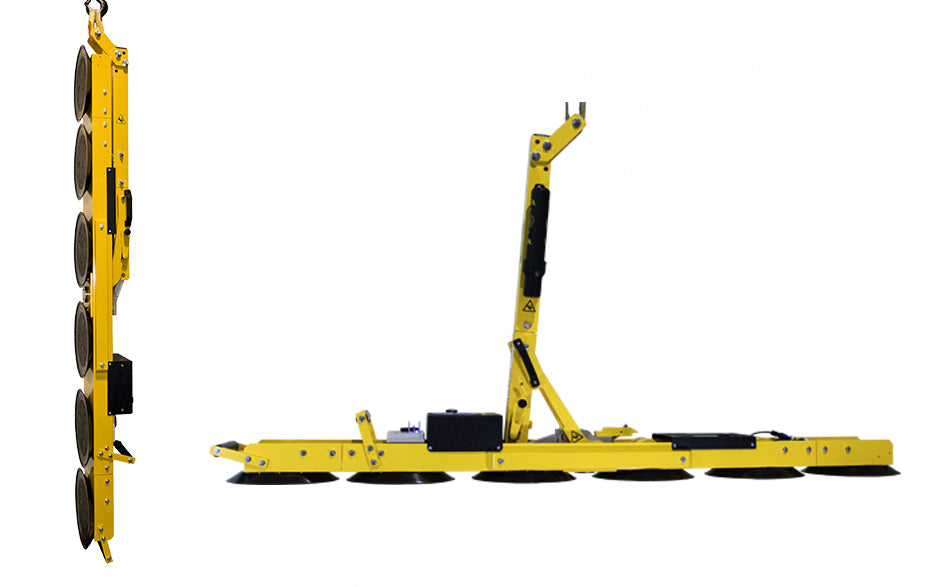

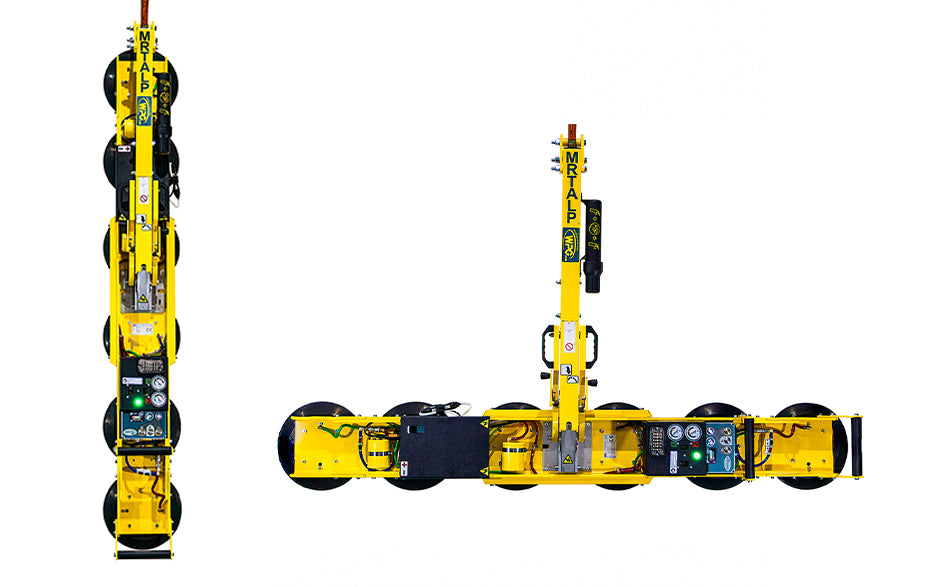

An integrated manual rotator and tilter allows the operator to reposition and angle loads precisely during installation without removing the lifter from the panel. This is essential for setting glass into frames, aligning panel seams, and achieving correct orientation in curtain wall and panel installation. The tilt linkage and rotation release lever are operator-accessible from the control handle.

Optional Remote Control System (Stock #59906)

The plug-and-play Remote Control System provides wireless operation of all lifter functions from up to 250 ft (76 m) away, enabling a single operator to safely manage lifts on multi-story buildings without a second ground-level crew member. Installation is straightforward with no special wiring required. This option is particularly valuable for window and curtain wall installation on high-rise structures.

Configurable Pad System with Adaptor Kit Option (Stock #57326)

The optional Adaptor Kit for VPFS10T Pads allows the lifter to be reconfigured for Insulated Metal Panel handling, extending the utility of the same base lifter across glass and panel scopes of work. Pad frame extensions can be installed or removed in the field to accommodate different load dimensions. This modularity reduces the need for multiple specialized lifters on a single project.

Common Applications

Commercial Glazing & Storefront Installation

Handles large flat glass panels for storefront, curtain wall, and structural glazing applications with up to 1,100 lbs (500 kg) capacity on smooth glass surfaces.

Insulated Metal Panel (IMP) Installation

The textured-surface model (Stock #98736) and the optional VPFS10T Adaptor Kit (Stock #57326) make this lifter well-suited for lifting and placing insulated metal panels used in commercial and industrial building envelopes.

Cold Storage Panel Installation

Specifically suited for cold storage panel applications where panel surfaces may be coated, embossed, or otherwise textured, the MRTALPCH610TDC3 handles loads up to 900 lbs (410 kg) safely.

Multi-Story Window Installation

With the optional Remote Control System, a single operator can control the lifter from up to 250 ft away, making window installation on upper floors of multi-story buildings practical without additional ground crew.

Tight-Space Panel Placement

The low-profile channel frame allows the lifter to operate in narrow spaces between structural elements, mechanical equipment, or adjacent panels where conventional lifters cannot be positioned.

Curtain Wall System Assembly

The manual rotator and tilter, combined with high load capacity and remote operation, make this lifter effective for setting and aligning curtain wall units with precision during facade construction.

Compatible Materials

• Flat, smooth glass (annealed, tempered, laminated)
• Textured glass surfaces
• Insulated Metal Panels (IMP)
• Cold Storage Panels
• Smooth, nonporous panel surfaces

Product Documents

• Operating Instructions (Stock #98738 & #98736)
• Instructions Supplement — Panel Lifting (Stock #98736)
• Service Manual — DC3 Dual Vacuum System with Intelli-Grip®
• Troubleshooting / Leak Test Procedure — DC3 Intelli-Grip Lifters
• Specifications Sheet — MRTALPCH611LDC3
• Operating Instructions — Remote Control System (Stock #59906)
• Specifications Sheet — Remote Control System Option
• Legacy Instructions — MRTALPCH611LDC (Discontinued Model Reference)
• Legacy Troubleshooting — MRTALP Channel DC Series

Application Instructions

Stage 1: Pre-Operation Preparation

1. Read and understand all Operating Instructions before using the lifter. For panel lifting applications (Stock #98736), also read and follow the Instructions Supplement.
2. Select the appropriate screen language on the Intelli-Grip® Control Unit.
3. Perform all required inspections and tests as described in the Operating Instructions before each use.
4. Check the 12-volt DC battery charge level and ensure it is adequately charged prior to operation.
5. If using the Remote Control System (Stock #59906), prepare and pair the remote using the plug-and-play connection procedure described in the remote control instructions.
6. Configure the pad frame—install or remove pad frame extensions as needed for the load dimensions, and route vacuum hoses according to the hose routing diagrams in the instructions.

Stage 2: Attaching the Lifter to the Load

1. Position the lifter over the load surface, centering the vacuum pads on a clean, smooth, nonporous area of the panel or glass.
2. Power up the lifter using the Intelli-Grip® Control Unit.
3. Seal the vacuum pads onto the load surface and verify that the vacuum gauges on both circuits read above the red zone (above 16" Hg / -54 kPa).
4. Monitor the vacuum indicators and confirm that no high leak rate warnings are displayed on the Intelli-Grip® screen before proceeding.
5. Verify the lift light status to confirm the system is ready to lift.

Stage 3: Lifting, Moving, and Positioning the Load

1. Lift and move the load using the crane or lifting equipment connected at the lift bar and lift point.
2. Monitor vacuum indicators continuously throughout the lift. If a warning code appears, stop the lift and address the fault before continuing.
3. Use the manual rotator to rotate the load to the required orientation using the rotation release lever.
4. Use the tilt linkage to tilt the load as needed for installation alignment. Refer to the tilt linkage operating section for correct tilt procedure and load angle limits.
5. If using the Remote Control System, control all lifter functions from up to 250 ft (76 m) away as needed for multi-story placement.
6. In the event of a power failure, follow the power failure procedure in the Operating Instructions to safely lower the load.

Stage 4: Releasing the Load and Post-Use Storage

1. Once the load is placed and secured, follow the pad release procedure in the Operating Instructions to safely release vacuum and detach the pads from the load.
2. Power down the lifter and disconnect the remote control system if used.
3. Inspect all pads, hoses, fittings, and frame components for damage after each use.
4. Store the lifter as directed in the storage section of the Operating Instructions.

Technical Specifications

Safety Data Summary

Hazard Information

• Vacuum loss during a lift can result in sudden load drop, causing serious injury or death — monitor vacuum gauges and Intelli-Grip® indicators at all times during operation.
• Severe vacuum leakage is indicated when the lifter cannot hold or draw full vacuum on a clean, smooth, nonporous surface — the pump will cycle every few seconds or run continuously and vacuum will remain below 16" Hg (-54 kPa).
• Moderate leakage triggers an on-screen warning ("High leak rate on circuit #") when leakage exceeds 4" Hg in 5 minutes — do not continue lifting if this warning appears repeatedly.
• Disconnect the power source before performing any service or maintenance to prevent electrical shock.
• Never apply soapy water to fittings or vacuum hoses to locate leaks — it will be drawn into the vacuum system and cause damage.
• In the event of a power failure during a lift, follow the dedicated power failure procedure in the Operating Instructions before attempting to lower the load.
• For panel lifting applications (Stock #98736), read, understand, and follow the Instructions Supplement in addition to the standard Operating Instructions before use.

Personal Protective Equipment

• Appropriate PPE required per site safety plan and applicable regulations for overhead and panel lifting operations.
• Hard hat, safety glasses, and steel-toed footwear recommended when operating vacuum lifting equipment.
• Gloves recommended when handling glass panels and vacuum pad assemblies.

Safe Handling

• This equipment is intended for use by professional equipment operators — read and understand all Operating Instructions before use.
• Service must be performed by qualified service personnel only — refer to the Service Manual.
• Perform all required inspections and tests before each use as described in the Operating Instructions.
• Do not exceed rated load capacity for the surface type being lifted.
• Ensure vacuum pads are properly seated and vacuum levels are confirmed before lifting any load.
• Keep all personnel clear of the load's swing path and drop zone during lifting operations.
• Ensure the lifter's 12-volt battery is adequately charged before beginning operations.
• Remove covers cautiously during service — wiring and hoses may be connected to components inside the cover.

Frequently Asked Questions

Q: What is the difference between Stock #98738 and Stock #98736?
A: Stock #98738 (MRTALPCH611LDC3) is configured for flat, smooth glass with a 1,100 lb (500 kg) load capacity. Stock #98736 (MRTALPCH610TDC3) is designed for textured surfaces including Insulated Metal Panels and Cold Storage Panels, with a 900 lb (410 kg) capacity. Panel lifting applications using Stock #98736 also require reading the Instructions Supplement in addition to the standard Operating Instructions.

Q: What does Intelli-Grip® Technology do?
A: Intelli-Grip® automatically monitors both the vacuum system and power system in real time, displays diagnostic codes on-screen, and alerts the operator to faults such as high leak rates. This simplifies maintenance and troubleshooting and improves overall job site safety. Lifter data can also be submitted to Wood's Powr-Grip remotely via a mobile app.

Q: Can I use the Remote Control System on either lifter model?
A: Yes. The Remote Control System (Stock #59906) is an optional add-on compatible with the MRTALPCH Series and features plug-and-play installation. It provides control of all lifter functions from up to 250 ft (76 m) away, making it especially useful for multi-story window and panel installation.

Q: What is the Adaptor Kit (Stock #57326) used for?
A: The Adaptor Kit allows VPFS10T vacuum pads to be installed on the lifter in order to handle Insulated Metal Panels. This expands the range of panel types the lifter can work with and is particularly useful on projects that include both glass and metal panel scopes of work.

Q: How do I know if my lifter has a vacuum leak?
A: Severe leakage is indicated when the pump cycles continuously or every few seconds and vacuum remains below 16" Hg (-54 kPa). Moderate leakage causes the Intelli-Grip® system to display a "High leak rate on circuit #" warning when leakage on either vacuum circuit exceeds 4" Hg in 5 minutes. If this warning appears at the end of each cycle, the vacuum system must be inspected and repaired before continued use. Refer to the Leak Test Procedure (TST-021) for detailed diagnosis steps.

Q: Can the pad frame configuration be changed in the field?
A: Yes. Pad frame extensions can be installed or removed in the field to accommodate different load sizes. Vacuum hoses must be rerouted when changing the pad frame configuration — refer to the hose routing section of the Operating Instructions for correct procedures.
