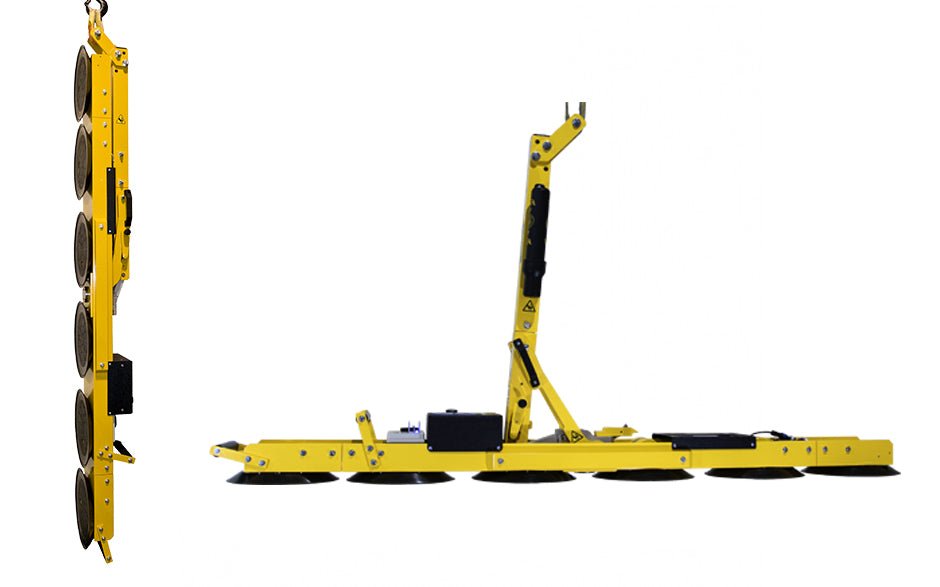

Manual Rotator/Tilter 1100 - MRTALPCH Lifter Series

MRTALPCH611LDC ─ Manual Rotator / Tilter -  Low-Profile Pad Channel for lifting and transporting heavy material.  Made when ordered, typically 5-6 weeks lead time.

Rotator/Tilter

Full Specs and Literature

With a dual vacuum system, 1100 lbs [500 kg] load capacity, removable pad frame extensions and a remarkably low profile, this Powr-Grip® rotator/tilter provides maximum versatility and ease of use in tight work locations.

Standard Pad Spread:
With 6 pads in use - 79-1/4" x 12" [2010 x 305 mm]
With 4 pads in use - 54" x 12" [1371 x 305 mm]

Number / Size of Vacuum Pads:
6 / 11" [28 cm] dia. lipped pads

Load Capacity:
With 6 pads in use - 1100 lbs [500 kg]
With 4 pads in use - 736 lbs [334 kg]

Weight of Lifter:
130 lbs [59 kg]

Standard Operating Power:
12 volts DC, 10 amps

Load Movement:
Manual rotation, 180° edgewise, with locking in 3 positions
Assisted manual tilt, 90° between upright and flat, with automatic latching in upright position

Profile Thickness:
7-3/4" [197 mm] (does not include load)

Standard Features:
Adjustable-position lift spool
Dual vacuum system
Low vacuum warning buzzer
Green lift light
On-board battery and charger
Battery energy gauge
Vacuum gauges
Vacuum line filters
Vacuum reserve tanks
Spring-mounted vacuum pads
Removable pad frame extensions
Blow-off for quick release

Load Capacity	1100 lbs [500 kg]
Per-Pad Capacity	175 lbs [79 kg]
Pad Model	G3370
DC Power	Standard
DC Volts	12 VDC
DC Amps	10
Charger Voltage	100/120/240
Charger Hertz	50/60
Charger Phase	1
Duty Cycle (Lifts/Hr) (DC)	55 hr
Weight (DC)	130 lbs [59 kg]
Manipulation	Continuous
Tilt	90°
Tilt Power	Assisted Manual
Rotation	180°
Rotation Power	Manual
Max Pad Spread (L)	79.25"
Min Pad Spread (L)	12"
Max Pad Spread (W)	70.25"
Min Pad Spread (W)	12"
Max Height	83.25"
Min Ambient Temp	32° F
Min Load Temp	32° F
Max Ambient Temp	100° F
Max Load Temp	100° F
