Wood's Powr-Grip MT1 Heavy Duty Lifter — Ergonomic Single-Operator Vacuum Lifting

The Wood's Powr-Grip MT1 Heavy Duty Lifter is a professional-grade vacuum material lifter engineered for contractors and trades professionals who need to safely handle heavy, flat loads without additional labor. Designed for single-operator use, it provides a flat lifting capacity of 300 lbs (135 kg) and a load capacity of 150 lbs (70 kg), making it suitable for demanding construction and installation environments. The MT1 is available in three power configurations — DC (Battery), AC, and Compressed Air — allowing jobsite flexibility regardless of available power sources. A manual tilter function is built in, enabling precise load positioning during installation tasks.

Unlike basic material handlers, the MT1 series is built by Wood's Powr-Grip, an industry-recognized manufacturer of vacuum lifting equipment, and is sold exclusively through authorized dealers — ensuring product authenticity, warranty coverage, and access to full technical documentation. The availability of multiple power source variants (DC, AC, and Air) in a single product family means contractors can standardize on one lifter platform across varied jobsite conditions.

Key Features & Benefits

Multiple Power Source Options

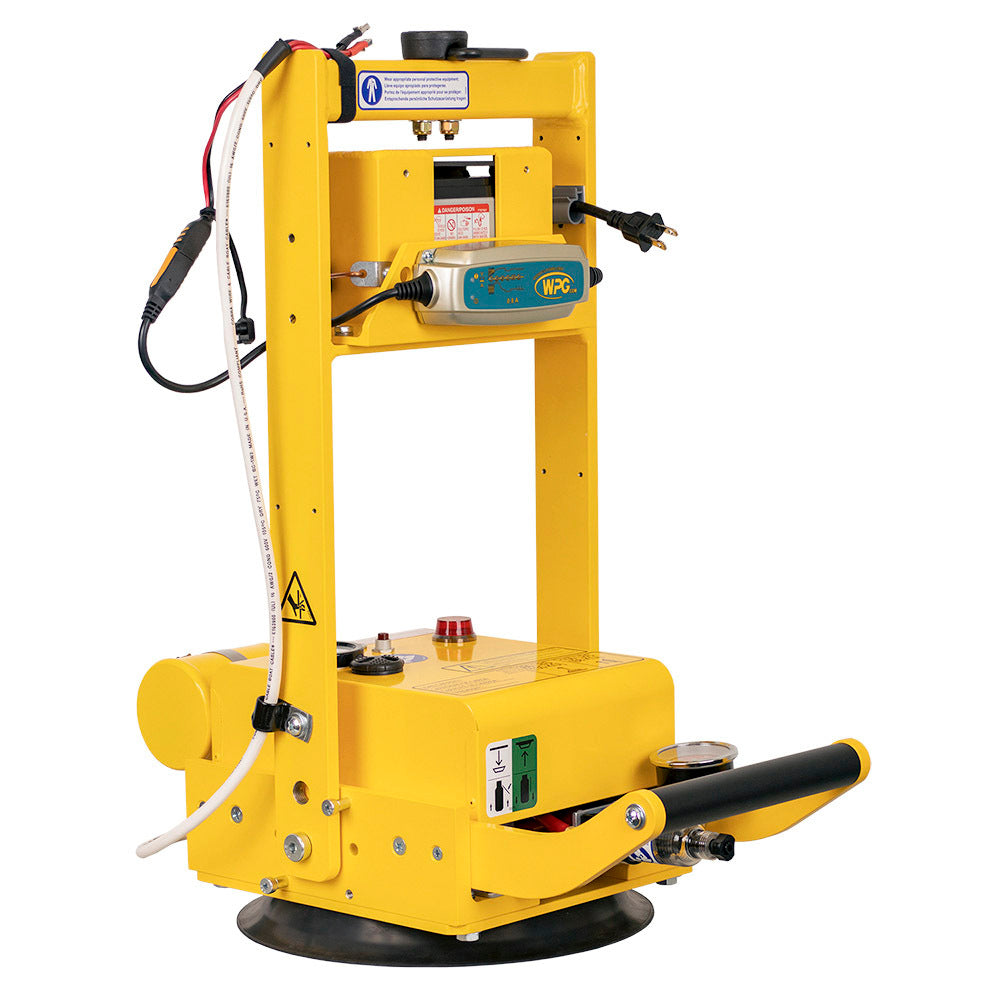

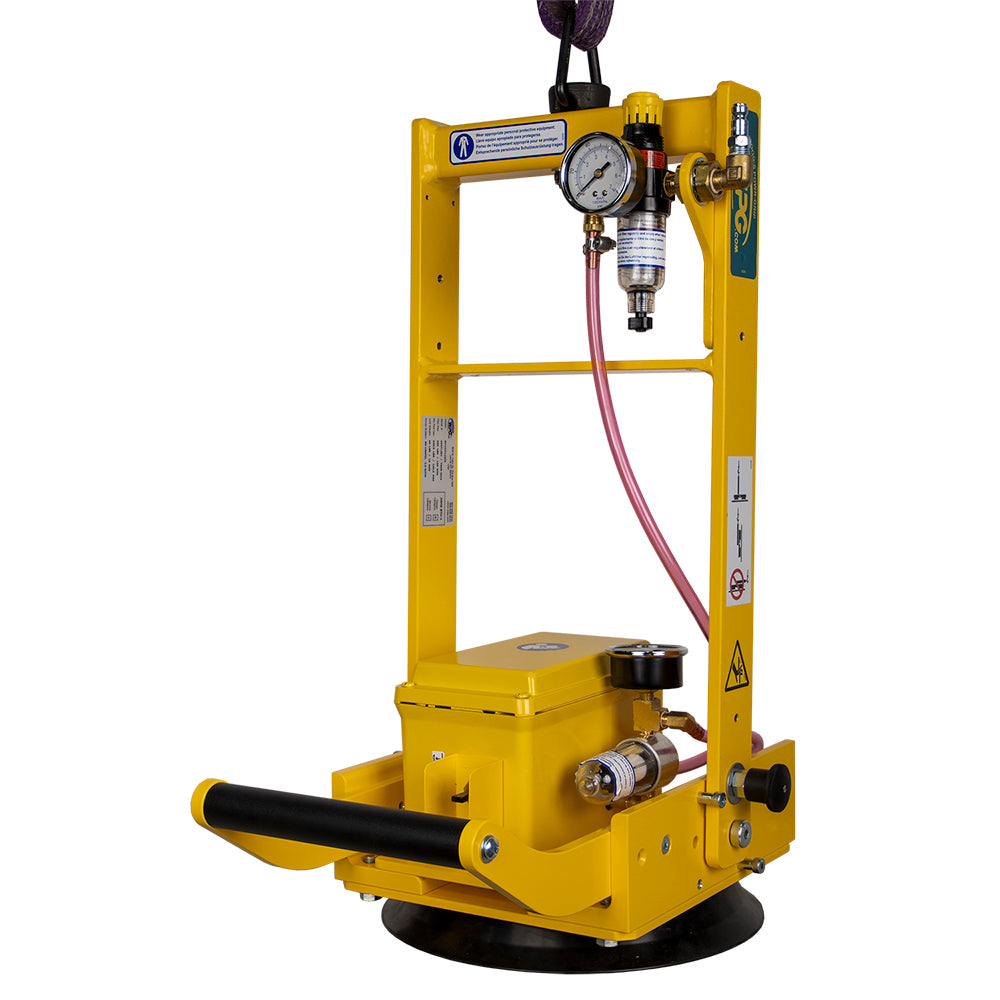

The MT1 is available in DC (battery-powered), AC (electric), and compressed air configurations, giving contractors the ability to select the right power source for their specific jobsite setup. Battery-powered models offer cordless mobility, AC models provide continuous operation without battery management, and air-powered models suit environments with existing compressed air infrastructure. This flexibility eliminates the need for multiple specialized lifters.

High Flat Lifting Capacity

With a flat lifting capacity of 300 lbs (135 kg), the MT1 handles large, heavy panels and sheets that would otherwise require a multi-person crew or separate mechanical equipment. This capacity enables a single operator to manage loads safely and efficiently, reducing labor costs and scheduling complexity on the jobsite.

Integrated Manual Tilter

The built-in tilter function allows the operator to reposition the load from horizontal to vertical (or intermediate angles) without detaching and re-attaching the lifter. This is critical for applications like glass installation, panel setting, or overhead material placement where load orientation must change during the lift sequence.

Ergonomic Single-Operator Design

The MT1 is specifically engineered to allow one person to handle heavy loads that would otherwise demand a second worker, improving jobsite efficiency and reducing physical strain. Control handles and the vacuum system are positioned for intuitive, low-fatigue operation throughout the workday.

Vacuum Safety Monitoring System

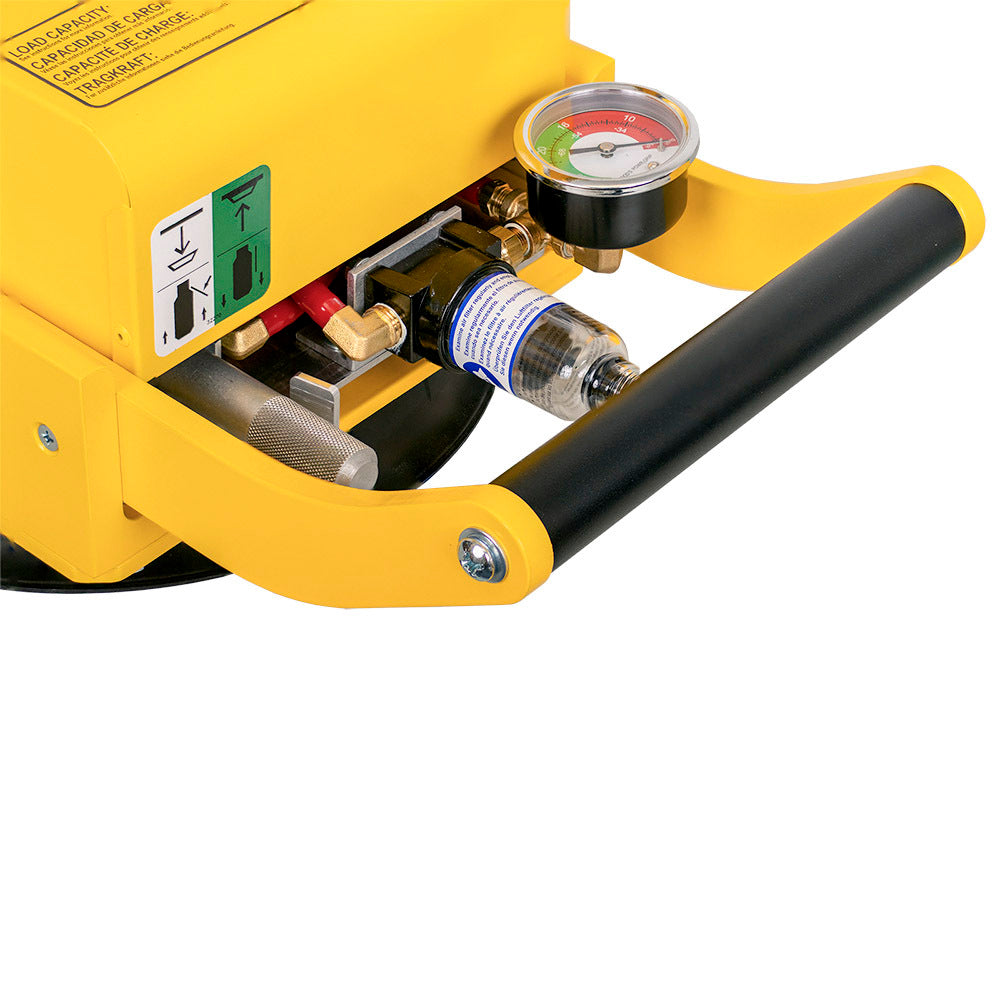

The lifter includes a low vacuum warning light and warning buzzer system that alerts the operator if vacuum levels drop below safe operating thresholds during a lift. A vacuum gauge and vacuum reserve tank provide additional redundancy, helping to prevent unexpected load release. These features are critical for jobsite safety compliance.

Authorized Dealer Product with Full Documentation Support

The MT1 is sold only through authorized dealers, ensuring customers receive genuine Wood's Powr-Grip equipment backed by manufacturer support. Complete operating instructions, service manuals, troubleshooting guides, and specification sheets are available for all models, supporting proper operation, maintenance, and regulatory compliance.

Common Applications

Glass Panel Installation

The MT1's vacuum pad system securely grips smooth glass surfaces, allowing a single glazier to position and set large glass panels during curtain wall, storefront, or window installation projects.

Large Format Tile and Stone Setting

Heavy natural stone slabs, large-format porcelain tiles, and engineered stone panels can be lifted and placed accurately without manual carrying, reducing breakage risk and installer fatigue.

Drywall and Panel Lifting

Full sheets of drywall, cement board, and composite panels can be lifted and held in position for fastening, eliminating the need for a second worker to support the material during installation.

Prefabricated Component Placement

Prefab panels, HVAC equipment covers, and structural flat components can be positioned with the MT1 on both interior and exterior construction sites where precise placement is required.

Countertop and Solid Surface Installation

Granite, quartz, and solid surface countertops up to the rated capacity can be lifted and set into place by a single installer, improving workflow and reducing the risk of material damage during handling.

Manufacturing and Industrial Handling

In light manufacturing or pre-construction fabrication environments, the MT1 supports repeated material handling tasks involving flat, non-porous workpieces without manual strain or additional personnel.

Compatible Materials

• Flat glass (annealed, tempered, laminated)
• Large-format ceramic and porcelain tile
• Natural stone slabs (granite, marble, limestone)
• Engineered stone and quartz surfaces
• Drywall and gypsum board
• Cement board and fiber cement panels
• Composite and structural flat panels
• Solid surface and countertop materials
• Sheet metal and smooth non-porous flat materials

Product Documents

• Operating Instructions — DC (Battery) Models (MT1HV11DC / MT2HV11DC)
• Service Manual — DC Single Vacuum System with Manual Valve
• Troubleshooting Guide — Generic Leak Test
• Specifications Sheet — MT1 DC
• Operating Instructions — Compressed Air Models (MT1HV11AIR / MT2HV11AIR)
• Service Manual — Air-Powered Models

Application Instructions

Before Using the Lifter

1. Read and understand all operating instructions before operating the equipment.
2. Take all required safety precautions for the jobsite and load type.
3. Perform all required pre-use inspections and operational tests per the manufacturer's inspection schedule.
4. For DC (battery) models: check battery charge level using the battery gauge; charge as needed before beginning work.
5. Verify that the vacuum pads are in good condition and free of damage or contamination that could affect sealing.

Attaching the Lifter to a Load

1. Position the lifter pad(s) squarely on the load surface, ensuring full pad contact with a clean, non-porous area of the material.
2. Activate the vacuum system and allow the pad(s) to seal completely against the load surface.
3. Read the vacuum gauge to confirm that vacuum level is within the safe operating range before lifting.
4. Verify that the low vacuum warning light is not illuminated and the warning buzzer is silent before proceeding.

Lifting and Moving the Load

1. Monitor the vacuum gauge and warning indicators continuously throughout the lift and move sequence.
2. Use the control handles to guide the lifter and load — do not exceed the rated load capacity for the model in use.
3. In the event of a power failure during a lift, follow the power failure procedures specified in the operating instructions for your model.
4. Keep all bystanders clear of the load path during lifting and movement.

Tilting the Load

1. With the load securely held by the vacuum system, engage the tilt release lever to unlock the tilter mechanism.
2. Carefully tilt the load to the desired angle using the control handles.
3. Re-engage the tilt lock as appropriate before final placement.

Releasing the Lifter from the Load

1. Ensure the load is fully supported in its final resting position before releasing vacuum.
2. Release vacuum according to the valve handle procedure in the operating instructions.
3. Remove the lifter from the load surface and inspect pads for wear or damage after each use.

After Use — Storage and Transport

1. Store the lifter in a clean, dry location per the manufacturer's storage guidelines.
2. For DC models, disconnect battery connectors when servicing or storing for extended periods.
3. Transport the lifter per the manufacturer's transporting guidelines to prevent damage to the vacuum system or pads.
4. Perform all post-use inspections per the inspection schedule in the operating instructions.

Technical Specifications

Safety Data Summary

Hazard Information

• Risk of serious injury or death if load is dropped due to vacuum failure — monitor vacuum indicators at all times during a lift.
• EU regulations require a secondary safety device when the lifter is used on construction sites or in other high-risk zones.
• Do not exceed the rated load capacity for the specific model being used.
• In case of power failure during a lift, follow the emergency procedures outlined in the operating instructions for your model.
• Liquid contamination in the air filter bowl must be removed immediately — do not use the bowl drain to remove liquid as this may cause an air leak.
• Electrical shock risk — disconnect battery connectors before servicing DC models.
• Only professional equipment operators should operate the lifter; only skilled technical professionals should perform service.

Personal Protective Equipment

• Appropriate hand protection when handling heavy loads and equipment.
• Safety footwear to protect against dropped loads.
• Eye protection as required by jobsite conditions.
• All PPE required by applicable local jobsite safety regulations.

Safe Handling

• Read and fully understand all operating instructions before using the lifter.
• Perform all required pre-use inspections and tests, including the lifter/load compatibility test, vacuum test, and rated load test, before each use.
• Inspect vacuum pads before each use — replace pads showing overall dirty appearance or causing increased time to attain full vacuum.
• Keep all bystanders clear of the load and lift path during operation.
• Service the lifter according to the manufacturer's service schedule; do not resume normal operation if a deficiency is found until service is completed.
• Store and transport the lifter per manufacturer guidelines to prevent damage to the vacuum system.
• Do not use the lifter for any application outside its intended use as defined in the operating instructions.

Frequently Asked Questions

Q: What is the difference between the MT1 and MT2 models?
A: MT1 models have a load capacity of 150 lbs (70 kg), while MT2 models provide full capacity of 300 lbs (135 kg) for both vertical and flat lifting. If your application requires lifting heavy loads in a vertical orientation at full rated capacity, the MT2 is the appropriate choice.

Q: Which power source model should I choose for my jobsite?
A: Choose the DC (battery) model for maximum mobility and cordless operation. Select the AC model if you have reliable electrical power at the point of use and prefer continuous operation without battery recharging. Choose the compressed air model if your jobsite already has an active compressed air supply infrastructure.

Q: Is a secondary safety device required when using the MT1?
A: Under EU regulations, a secondary safety device is required whenever the MT1 is used on construction sites or in other high-risk zones. Contractors operating in EU-regulated environments must ensure this requirement is met. Consult your local regulatory authority for specific requirements applicable to your jurisdiction.

Q: Where can I find service and troubleshooting documentation for the MT1?
A: Full operating instructions, service manuals, troubleshooting guides, and specification sheets are available as PDF downloads in the Product Documents section above. These documents cover DC, AC, and air-powered models and include wiring/hose-routing diagrams, vacuum pump maintenance procedures, and inspection schedules.

Q: Can this lifter be used by a single operator?
A: Yes — the MT1 is specifically designed for ergonomic single-operator handling of heavy loads up to the rated capacity. The control handles, vacuum monitoring system, and tilter mechanism are all designed to be managed by one person, reducing the labor requirements for heavy material handling tasks.

Q: How do I know if the vacuum level is safe before and during a lift?
A: The lifter is equipped with a vacuum gauge, a low vacuum warning light, and a low vacuum warning buzzer. Before lifting, confirm the vacuum gauge reads within the safe operating range and neither warning indicator is active. Monitor these indicators continuously throughout the lift — if the warning light or buzzer activates, safely return the load to a supported position and investigate the cause before continuing.
