Manual Tilter 150 - MT1 Lifter Series

SKU:
Original price $2,341.55 - Original price $2,528.87
Original price
$2,341.55
$2,341.55 - $2,528.87
Current price $2,341.55
WPG Vacuum Lifters:
Please note: Wood's Powr-Grip products are made to order and have an expected lead time of 5-6 weeks. Please contact us at +1 (800) 342-3876 for additional information.

Manual Tilter 150 | Custom Lifting and Handling Equipment that is made to order

Tilter

Full Specifications

Stock# Model# Description Load Capacity Power MSRP Price
97480 MT1HV11DC Mobile, battery powered lifter. 150 lbs [70 kg] DC $2,667.76
MT1HV11AIRS MT1HV11AIRS
SPECIAL ORDER:

Lifter powered by compressed air supply.

150 lbs [70 kg] Air $2,528.87
MT1HV11ACS MT1HV11ACS
SPECIAL ORDER:

Lifter powered by corded, AC outlet.

150 lbs [70 kg] AC $2,528.87

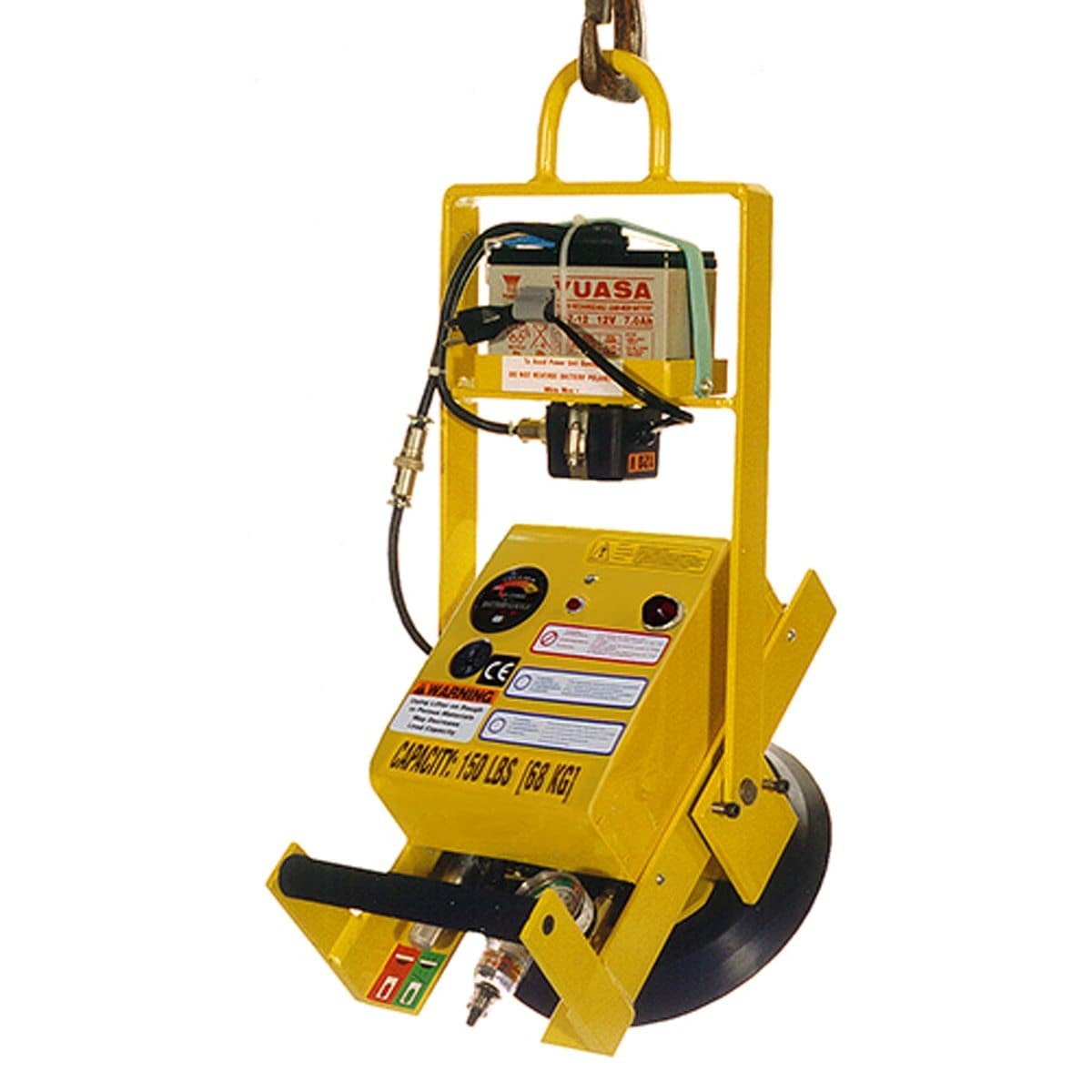

With a single vacuum pad for quick attachment and release, this Powr-Grip® vacuum lifter enables ergonomic handling of heavy loads by a single person.

Standard Pad Spread:
11" x 11" [28 x 28 cm]

Standard Vacuum Pad:
10" [25 cm] dia. lipped pad

Maximum Load Capacity:
150 lbs [70 kg]

Weight of Lifter:
45 lbs [21 kg]

Standard Operating Power:
12 volts DC, 10 amps (Other voltages available)

Apply / Release Times:
2 seconds / 3 seconds (approx)

Load Movement:
Manual tilt, 90° between upright and flat

Standard Features:
On-board battery and charger
Battery energy gauge
Low vacuum warning light
Low vacuum warning buzzer
Vacuum gauge
Vacuum line filter
Vacuum reserve tank

Alternative Power Systems:
AC power system (MT1HV11ACS)
Air (venturi) power system (MT1HV11AIRS)
(Specifications may not be as listed above. Please contact us for more information.)

Load Capacity 150 lbs [70 kg]
Per-Pad Capacity 150 lbs [70 kg]
Pad Model HV11
DC Power Standard
DC Volts 12 VDC
DC Amps 10
Charger Voltage 100/120/240
Charger Hertz 50/60
Charger Phase 1
Apply Time (DC) 3 seconds
Release Time (DC) 2 seconds
Weight (DC) 45 lbs [21 kg]
Manipulation Continuous
Tilt 90°
Tilt Power Manual
Max Pad Spread (L) 11" [28 cm]
Min Pad Spread (L) 11" [28 cm]
Max Pad Spread (W) 11" [28 cm]
Min Pad Spread (W) 11" [28 cm]
Max Height 26.5"
Min Ambient Temp 32° F
Min Load Temp 32° F
Max Ambient Temp 100° F
Max Load Temp 100° F
