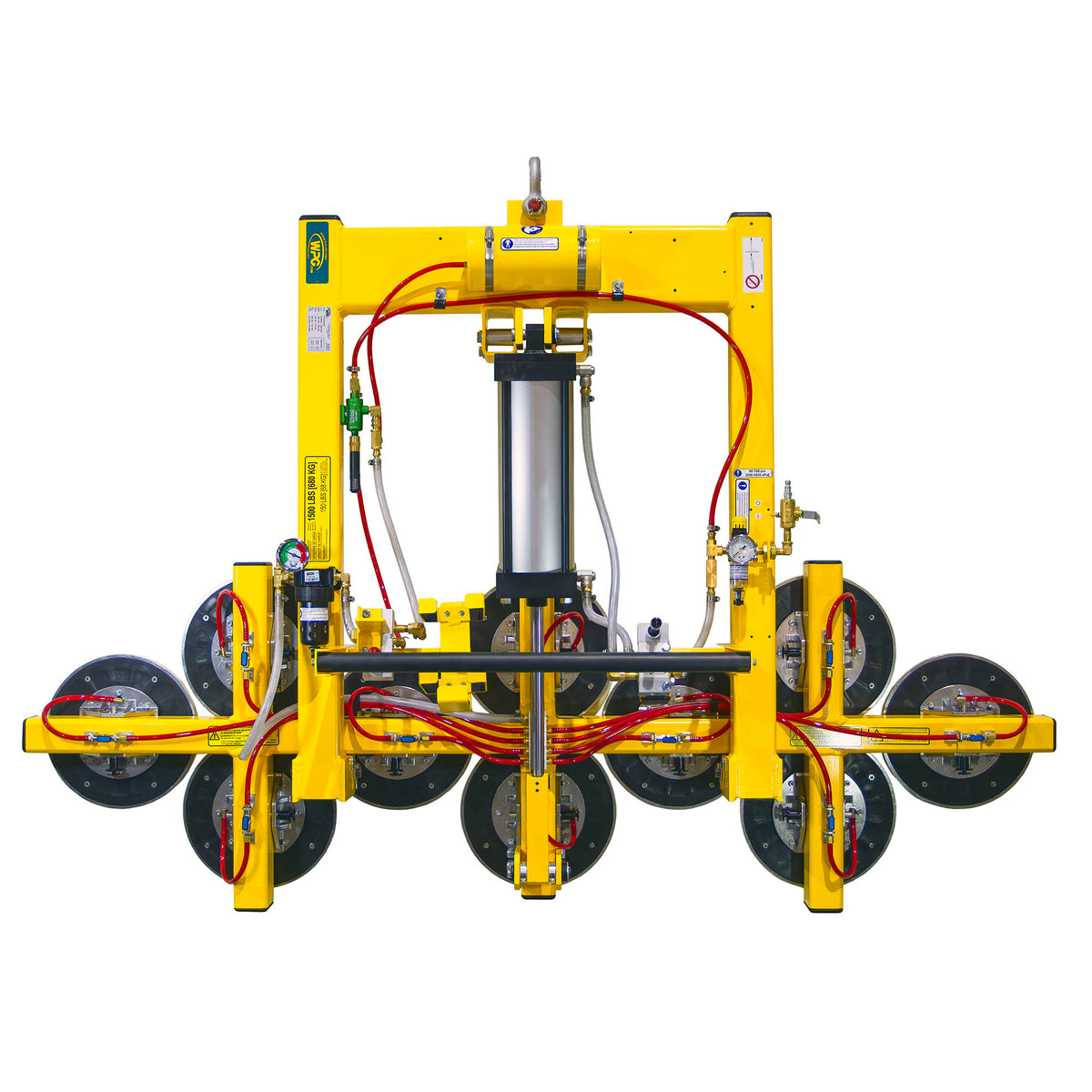

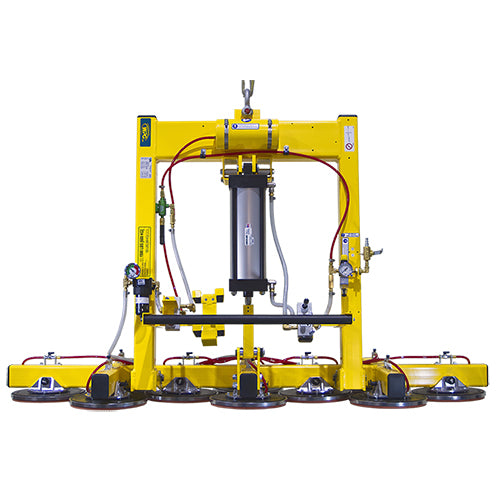

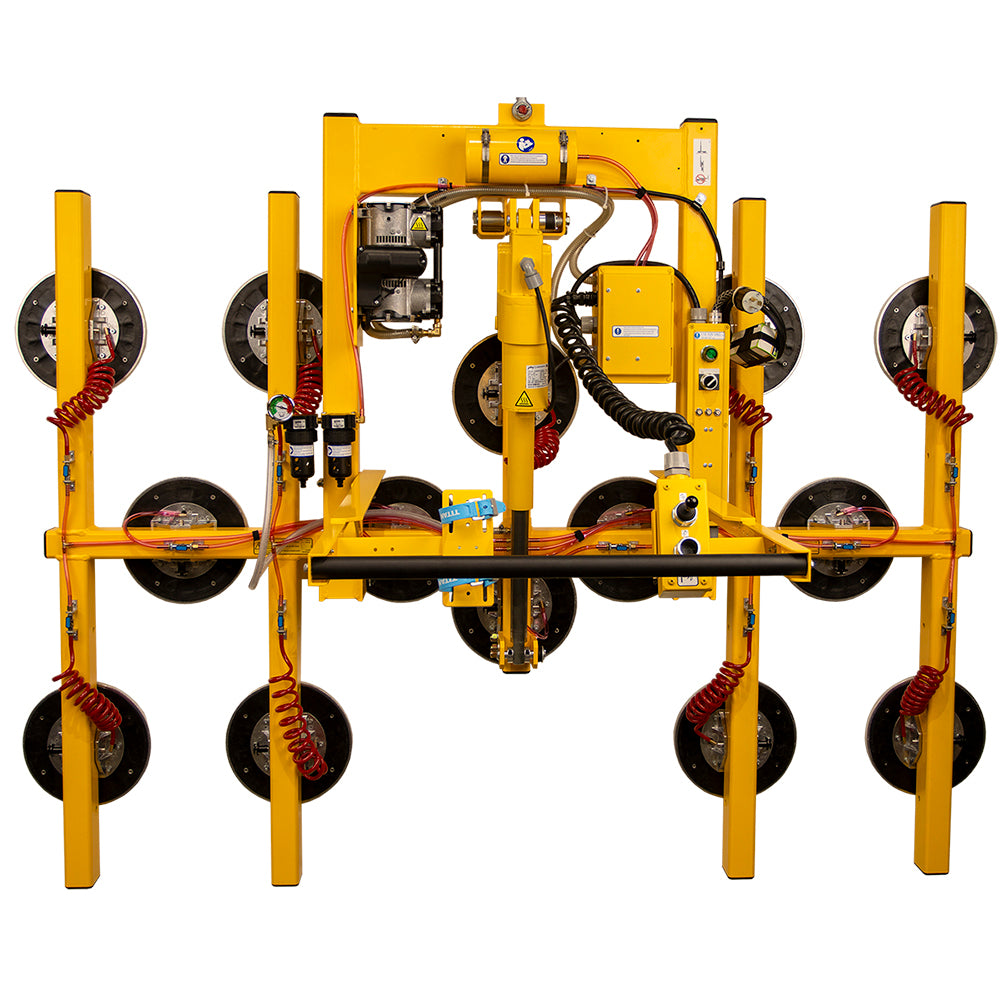

Wood's Powr-Grip PT1010TAIR Compressed-Air Vacuum Tilter

Wood's Powr-Grip PT1010TAIR Compressed-Air Vacuum Tilter 1,500 lb Powered Tilting for Heavy Stone

The Wood's Powr-Grip PT1010TAIR is a compressed-air powered vacuum lifter with integrated powered tilting, designed for contractors and stone installation professionals who need to handle large, heavy slabs efficiently and safely. Rated at 1,500 lbs (680 kg), it uses a venturi-style vacuum pump driven by a compressed air supply to generate and maintain suction across a configurable pad array spanning up to 23¾" x 74¾" (60 cm x 190 cm). It is part of Wood's Powr-Grip's PT10/PT14 Lifter Series and is intended for use by professional equipment operators.

Unlike fixed vacuum lifters that require manual repositioning to change slab orientation, the PT1010TAIR's powered tilt mechanism lets operators rotate loads without breaking suction, dramatically reducing the risk of slab damage and crew injury during installation. Individual pad shutoffs allow the lifter to conform its active pad footprint to irregular stone shapes and sizes, making it more versatile than single-zone vacuum lifters on varied slab formats.

Key Features & Benefits

Compressed-Air Powered Vacuum System

The PT1010TAIR uses a venturi-style vacuum pump driven by a standard compressed air supply, eliminating the need for electrical cords or battery packs on the job site. This makes it well suited for shop environments and sites where compressed air is already available. The air supply also powers the tilt actuator, consolidating power requirements to a single source.

Powered Tilting Mechanism

The integrated powered tilt actuator allows operators to rotate the load while it remains under vacuum, enabling precise slab positioning for vertical installation, seaming, or alignment without manual intervention. Tilt speed valves and tilt stop valves provide controlled, repeatable movement, while the tilt master valve governs overall tilt function. This powered tilting capability is the defining advantage of the PT series over standard vacuum lifters.

Individual Pad Shutoffs

Each vacuum pad can be independently shut off, allowing the operator to deactivate pads that fall over cutouts, holes, or edges of irregularly shaped stone. This feature ensures that only pads with full contact contribute to the vacuum circuit, maintaining system integrity and maximizing holding force on non-rectangular slabs.

1,500 lb (680 kg) Load Capacity

The PT1010TAIR is rated for loads up to 1,500 lbs (680 kg), covering the majority of large-format natural stone, engineered stone, and glass slabs encountered in commercial and residential installation. This capacity, combined with the wide pad spread, allows a single lifter to handle full slabs that would otherwise require multiple workers or rigging systems.

Wide Max Pad Spread — 23¾" x 74¾"

The maximum pad spread of 23¾" x 74¾" (60 cm x 190 cm) accommodates long, narrow slab formats common in countertop, cladding, and flooring applications. The adjustable pad frame allows the operator to match pad positions to the specific dimensions of each load, distributing vacuum force evenly across the slab surface.

Vacuum Reserve Tank

An onboard vacuum reserve tank maintains suction in the event of a momentary interruption to the compressed air supply, providing a critical safety buffer during lifting operations. The vacuum gauge allows the operator to continuously monitor vacuum levels and respond to any loss before it becomes a drop hazard. In the event of a full power failure, the reserve system provides time for controlled load management.

Common Applications

Large-Format Stone Slab Handling

Lifting and transporting full granite, marble, quartzite, or engineered stone slabs from storage racks to fabrication tables or installation areas. The wide pad spread and high load capacity make this the primary use case for the PT1010TAIR.

Countertop Installation

Tilting slabs from horizontal transport position to vertical installation orientation without breaking vacuum, allowing precise placement of countertops against walls or cabinets with minimal crew involvement.

Wall Cladding and Facade Installation

Rotating large stone panels from flat to vertical for placement on wall substrates, where powered tilting eliminates the need for manual re-rigging between horizontal and vertical orientations.

Flooring and Paving Installation

Picking and placing large-format floor tiles or paving slabs where precise positioning and damage-free handling are required. Individual pad shutoffs allow the lifter to handle slabs with cutouts or irregular profiles.

Glass Panel Handling

Lifting and tilting large glass panels in glazing applications where surface contact must be distributed and controlled to prevent breakage. The vacuum pad system provides even load distribution across the panel face.

Fabrication Shop Material Handling

Moving slabs between saw, edge profiler, and finishing stations in stone fabrication facilities where overhead crane or hoist systems are used in conjunction with the vacuum lifter.

Compatible Materials

• Natural granite slabs
• Natural marble slabs
• Quartzite and other natural stone
• Engineered quartz surfaces
• Porcelain and large-format ceramic tile
• Glass panels (smooth, non-porous surface required)
• Smooth concrete panels
• Smooth, clean, non-porous surfaces generally

Product Documents

• Operating Instructions — PT1010TAIR
• Service Manual — Compressed Air Power System
• Troubleshooting — Leak Test Procedure (PT Air Models)
• Troubleshooting — Generic Leak Test Procedure
• Specifications Sheet — PT1010TAIR
• Instructions — PT10 Extension Arms
• Instructions — Vacuum Loss Warning Buzzer
• Specifications — Vacuum Loss Warning Buzzer (OPT-4)
• Instructions — VPFS10T Installation
• Instructions — PT10 HV11 Air (Alternate Configuration)

Application Instructions

Before Each Use

1. Perform all required inspections and tests as outlined in the Operating Instructions before each use.
2. Take all required safety precautions.
3. Connect the compressed air supply to the lifter's air inlet.
4. Verify the vacuum gauge reads correctly and the system holds vacuum.
5. Inspect all vacuum pads for cuts, abrasions, contamination, or damage on the pad face and suction stem.

Using Pad Shutoffs

1. Identify which pads will make full, unobstructed contact with the load surface.
2. Close (shut off) any pads that fall over holes, cutouts, or edges of the slab.
3. Ensure all active pads are positioned to seal against a clean, smooth, non-porous surface area of the load.

Attaching the Pads to a Load

1. Position the lifter over the load, aligning the active pads with the intended contact area.
2. Activate airflow through the compressed air supply to generate vacuum at the pads.
3. Lower the lifter so all active pads make contact with the load surface.
4. Press the pads firmly against the load surface to initiate sealing.
5. Read the vacuum gauge to confirm adequate vacuum level is achieved. Vacuum must register in the safe operating zone (above the red zone threshold of 16" Hg / -54 kPa).
6. Monitor the vacuum gauge continuously during the lift. If vacuum drops more than 4" Hg (-13.5 kPa) within 5 minutes with power off, inspect for leaks before proceeding.

Tilting the Load

1. Confirm vacuum level is adequate before initiating tilt.
2. Use the tilt control valve on the control handle to activate the powered tilt actuator.
3. Adjust tilt speed using the tilt speed valves as needed for controlled movement.
4. Use the tilt stop valves to arrest tilt at the desired angle.
5. Monitor vacuum gauge throughout the tilting operation.

Releasing the Load

1. Lower the load to its final resting position.
2. Activate the release function to break vacuum and detach the pads from the load surface. Note: Do not use release mode when any section of the vacuum system is capped or sealed off during testing.
3. Lift the lifter clear of the load.

After Each Use

1. Disconnect the compressed air supply.
2. Clean vacuum pads and inspect for damage.
3. Store and transport the lifter per the instructions in the Operating Instructions manual.

Technical Specifications

Safety Data Summary

Hazard Information

• A severe vacuum leak is indicated when the lifter cannot reach 16" Hg (-54 kPa) on a clean, smooth, non-porous surface — do not lift loads under these conditions.
• A moderate vacuum leak (loss of more than 4" Hg / -13.5 kPa in 5 minutes during a power-off vacuum test) requires immediate repair before resuming operation.
• Do not use the lifter's release mode when any section of the vacuum system is capped or sealed during testing — pressure buildup may damage components.
• Disconnect the compressed air supply before performing any service or maintenance.
• Do not apply soapy water to fittings or vacuum hoses to locate leaks — it will be drawn into the vacuum system and cause damage.
• Never use the bowl drain on air filters to remove liquid — this can cause an air leak.
• Monitor the vacuum gauge continuously during all lifting and tilting operations.

Personal Protective Equipment

• Follow all PPE requirements as specified in the Wood's Powr-Grip Operating Instructions for the PT1010TAIR.
• Use appropriate hand protection when handling stone slabs.
• Use appropriate foot protection on the job site.
• Use eye protection when working with compressed air systems.

Safe Handling

• Read and fully understand the Operating Instructions before operating the lifter.
• Intended for use by professional equipment operators only.
• Perform all required inspections and the Lifter/Load Compatibility Test, Operational Tests, Vacuum Test, and Rated Load Test per the inspection schedule before use.
• Service must be performed whenever a deficiency is identified during routine inspections or tests — do not resume normal operation until service is complete.
• Service must be performed by qualified service personnel who have read and understood the Operating Instructions, especially the Inspections and Tests and Maintenance sections.
• When removing hoses from barbed fittings, avoid nicking or cutting the barbs — damage can introduce new leaks.
• When reinstalling hoses on barbed fittings after removal, cut approximately 1/8" to 1/4" (3–6 mm) off the hose end to remove damaged material before reinstalling.
• Store and transport the lifter per the procedures in the Operating Instructions.

Frequently Asked Questions

Q: What compressed air supply is required to operate the PT1010TAIR?
A: The PT1010TAIR requires a standard compressed air supply connected to the lifter's air inlet. The onboard air pressure regulator and pressure gauge allow the operator to set and monitor supply pressure. Refer to the Specifications Sheet (linked above) for specific pressure requirements.

Q: Can the PT1010TAIR handle irregularly shaped stone slabs?
A: Yes. The individual pad shutoff feature allows the operator to deactivate any pads that fall over cutouts, holes, or unsupported edges on irregular slabs, ensuring only pads with full surface contact are active in the vacuum circuit.

Q: How do I know if the lifter has a vacuum leak?
A: A severe leak is indicated if the lifter cannot reach 16" Hg (-54 kPa) on a clean, smooth, non-porous surface. A moderate leak is indicated by a loss of more than 4" Hg (-13.5 kPa) within 5 minutes during a power-off vacuum test. Use the Troubleshooting — Leak Test Procedure document (linked above) to systematically locate and address leaks.

Q: What happens if the compressed air supply is interrupted during a lift?
A: The onboard vacuum reserve tank maintains vacuum in the event of a momentary power interruption, providing a safety buffer. Monitor the vacuum gauge and follow the power failure procedures in the Operating Instructions if a full air supply failure occurs.

Q: Is the PT1010TAIR suitable for porous stone surfaces?
A: No. Vacuum lifters require a clean, smooth, non-porous surface to achieve and maintain proper seal. Porous surfaces such as unfinished natural stone faces, heavily textured surfaces, or surfaces with heavy contamination will prevent adequate vacuum and are not suitable for vacuum lifting.

Q: What other models are available in this series if I need a larger pad spread or different power source?

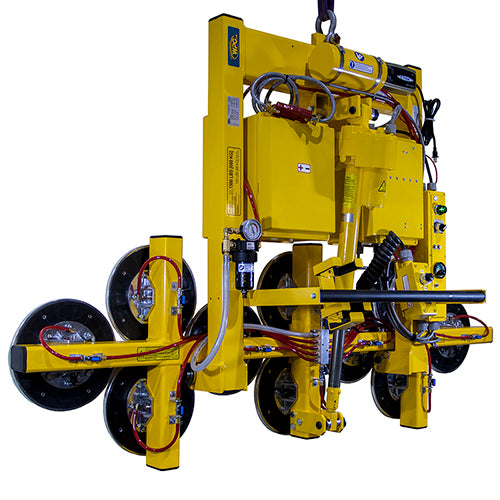

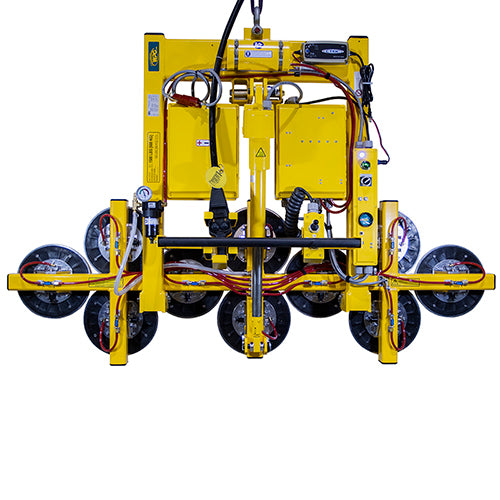

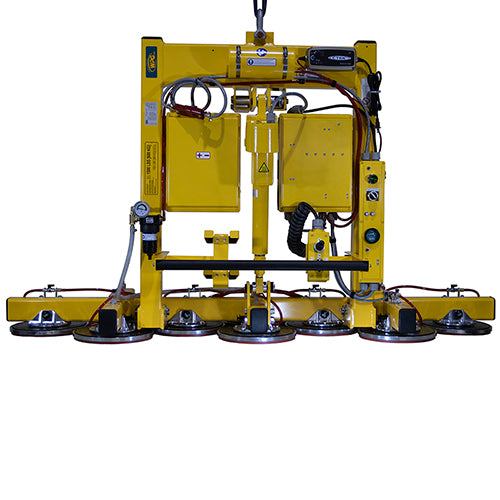

A: The PT10/PT14 Lifter Series includes the PT1410TAIR (Stock #97106) with a larger 60¾" x 90¾" (154 cm x 230 cm) pad spread and the same air power system. Battery-powered (DC) variants — PT1010TDC(S) (Stock #97110) and PT1410TDC(S) (Stock #97111) — are available as special orders for mobile applications. AC-powered variants — PT1010TAC(S) (Stock #97120) — are also available as special orders for use with a standard electrical outlet.
