PT10 Lifter Series - Power Tilter 1500

SKU:
Original price $7,204.09 - Original price $13,004.96
Original price
$7,204.09
$7,204.09 - $13,004.96
Current price $7,204.09
Power Tilter 1500 - Pad Size:
Power Options:
Please note: Wood's Powr-Grip products are made to order and have an expected lead time of 5-6 weeks. Please contact us at +1 (800) 342-3876 for additional information.

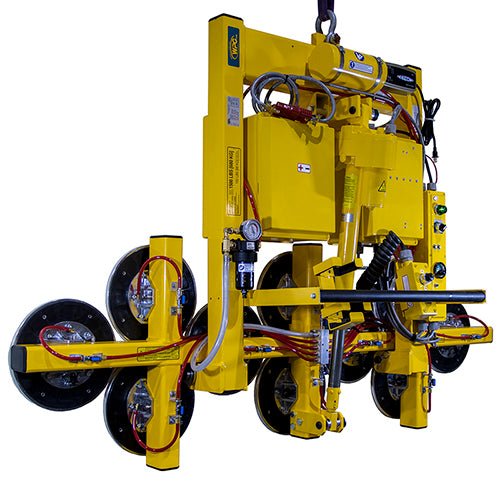

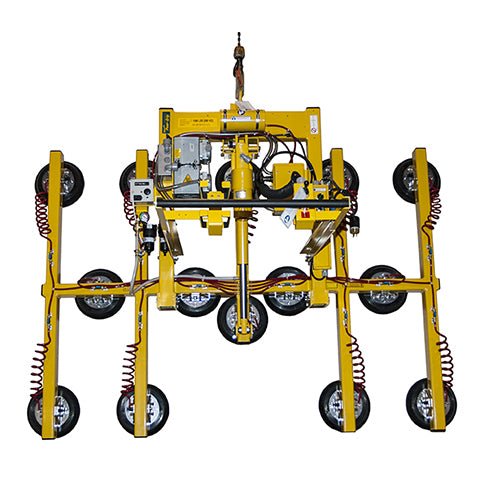

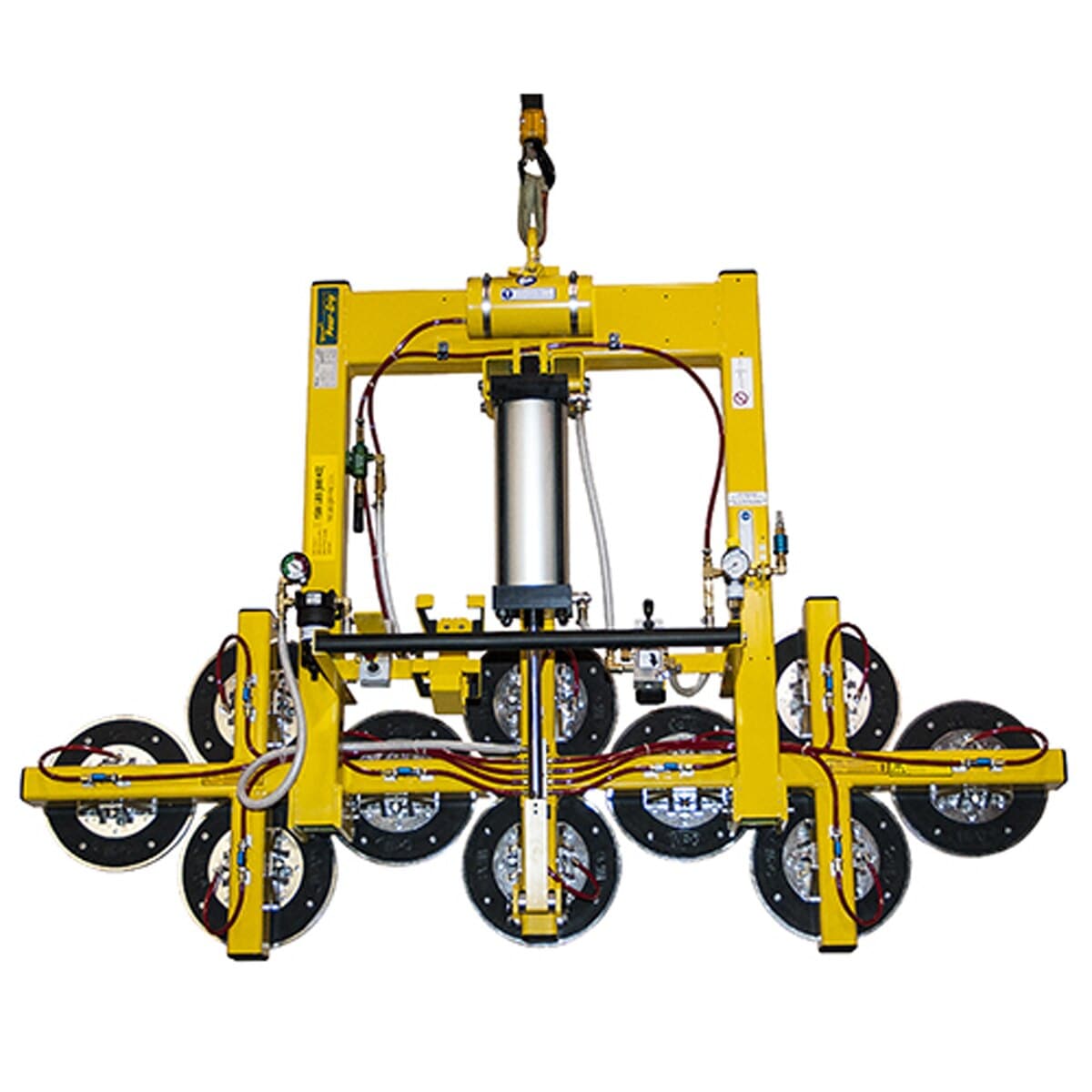

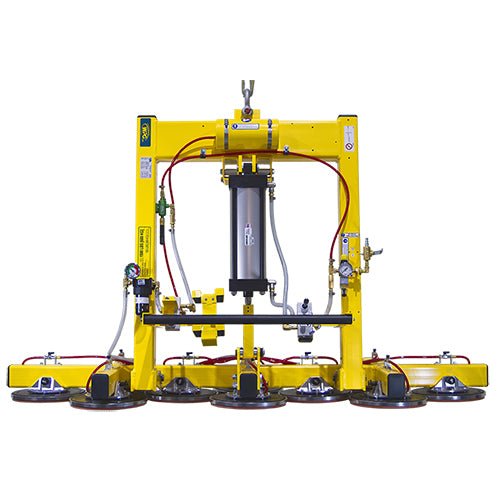

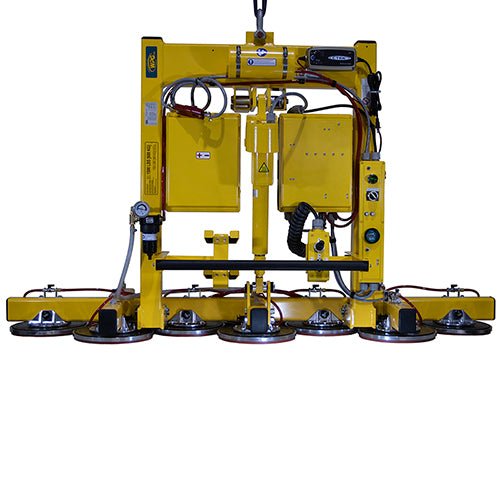

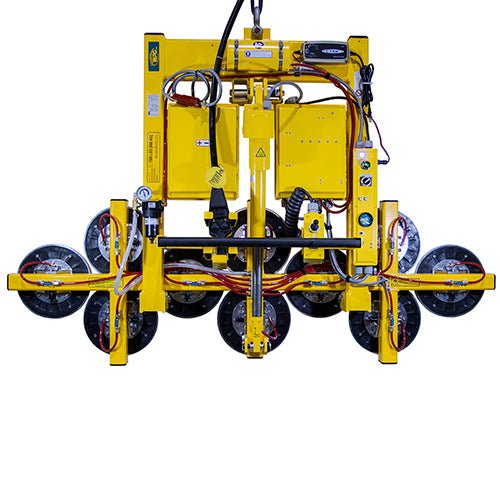

Power Tilter (Air-Powered) designed to reduce the risk of load damage, this vacuum lifter provides effortless power tilting and optimal support of stone and other high-density materials.

Made When Ordered

Instructions

Specifications

Stock# Model# Description Load Capacity Power
97106 PT1410TAIR Compressed-air powered lifter with 60-¾ x 90-¾" [154 x 230 cm] max pad spread. 1500 lbs [680 kg] Air
97105 PT1010TAIR Compressed-air powered lifter with 23-¾" x 74-¾" [60 cm x 190 cm] max pad spread. 1500 lbs [680 kg] Air
97111 PT1410TDC Mobile, battery-powered lifter with 60-¾" x 90-¾" [154 cm x 230 cm] max pad spread. 1500 lbs [680 kg] DC
97110 PT1010TDC Mobile, battery-powered lifter with 23-¾" x 74-¾" [60 cm x 190 cm] max pad spread. 1500 lbs [680 kg] DC
97121 PT1410TACS
SPECIAL ORDER:

Corded, AC outlet powered lifter with 60-¾" x 90-¾" [154 cm x 230 cm] max pad spread.

1500 lbs [680 kg] AC
97120 PT1010TACS
SPECIAL ORDER:

Corded, AC outlet powered lifter with 23-¾" x 74-¾" [60 cm x 190 cm] max pad spread.

1500 lbs [680 kg] AC



Standard Pad Spread:
23-3/4" x 74-3/4" [60 cm x 190 cm]

Number / Size of Vacuum Pads:
10 / 10" [25 cm] diameter pads with replaceable sealing rings

Maximum Load Capacity:
1500 lbs [680 kg]

Weight of Lifter:
360 lbs [163 kg]

Standard Operating Power:
Compressed air, 11 SCFM [311 liters/minute] @ 80 psi [552 kPa]

Apply / Release Times:
10 seconds / 3 seconds (approx)

Load Movement:
Power tilt, 90° between upright and flat

Time for 90° Tilt:
8 seconds (approx)

Tilt Duty:
Continuous

Standard Features:
Vacuum gauge
Vacuum reserve tank
Vacuum line filter
Spring-mounted vacuum pads
Individual shutoffs to all vacuum pads
Flexible rubber pad rings
Blow-off for quick release
