Please note: Wood's Powr-Grip products are made to order and have an expected lead time of 5-6 weeks. Please contact us at +1 (800) 342-3876 for additional information.

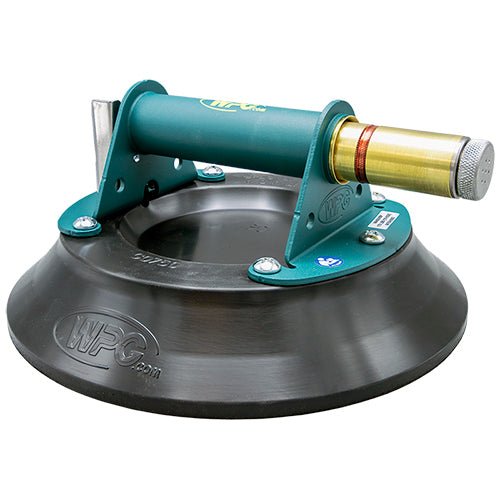

This metal-handle cup attaches easily to curved, nonporous surfaces weighing up to 175 lbs [79 kg]. Comes with Low Vacuum Audio Alarm. Not for use on thin, fragile materials.

Not for use on thin, fragile materials.

Instructions

Specifications

Features:

  • Red-line indicator provides user with visual warning of any vacuum loss
  • Low Vacuum Audio Alarm emits 70 dBa at 36" [91 cm] audible alarm for situtations when the red-line indicator is difficult to see
  • Environmentally-friendly design significantly increases lifespan of battery (about 30 hours of continuous use)

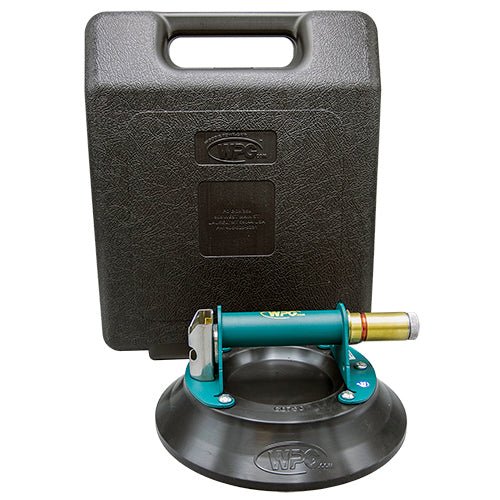

  • Supplied with protective carrying case and battery
Model N6450WBP
SKU 91807
Load Capacity 175 lbs [79 kg]
Surface Texture Smooth
Material Porosity Nonporous
Allowable Surface Curvature Curved
Minimum Radius for Curved Loads 13" [330 mm]
Minimum Material Thickness 1/4" [6.35 mm]
Maximum Elevation 5000 ft [1500 m]
Material and Ambient Temperature Range 10° F [-12° C] — 120° F [49° C]
Ideal Uses Curved or irregular nonporous surfaces when red-line indicator is difficult to see
Pad Diameter 10" [25 cm]
Pad Model G0750
Rubber Type Standard
Handle Type Metal
Plunger Type Metal
