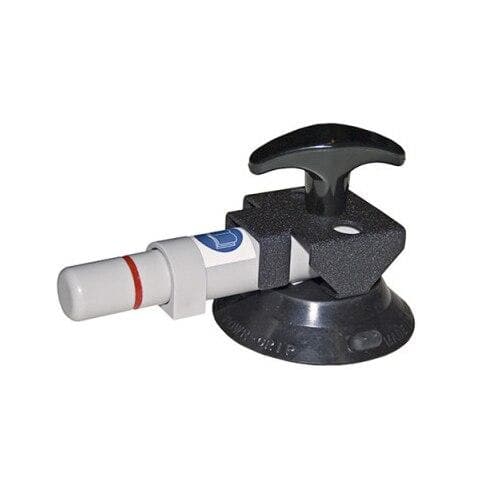

3" Hand Cup With T-Handle for Flat or Curved Surfaces

This compact hand cup has a 15 lbs [7 kg] lifting capacity for the accurate positioning of small flat or curved items. This hand cup can also be used as a mounting cup, with 1/4-20 threaded stud when its handle is removed.



  • Fast attach and release
  • Doubles as mounting cup - 1/4-20 threaded stud is exposed when handle removed
  • Red-line indicator warns user of any significant vacuum loss
  • Supplied with vacuum pad protector
Model TL3TH
SKU 91154
Load Capacity 15 lbs [7 kg]
Surface Texture Smooth
Material Porosity Nonporous
Allowable Surface Curvature Flat to Curved
Minimum Radius for Curved Loads 4" [102 mm]
Material and Ambient Temperature-Range 32°F [0° C] up to 100° F [38° C]
Pad Diameter 3" [8 cm]
Pad Model TL3
Rubber Type Standard
Handle Type Industrial-Grade Plastic
Plunger Type Industrial-Grade Plastic
