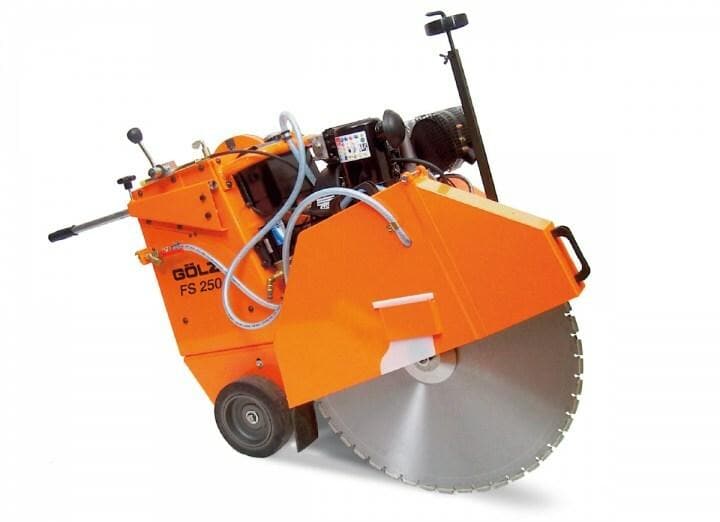

25HP Honda Gas Engine/20HP Hatz Diesel Engine

25HP Honda Gas Engine/20HP Hatz Diesel Engine
Blade Ø 800 mm, Cutting depth 310 mm

• Adjustable handle bars for operators comfort
• Control panel - user friendly
• Continuously adjustable cutting depth
• Cutting depth indicator
• Blade depth control and rapid blade lift by electro-hydraulic
• Self adjusting belt tensioner
• Self-priming water pump
• Right- and lefthand cutting
• Divisible blade guard - can be raised for intersections
• Electro-hydraulic drive, detachable. Saw can be moved without blade running.
• Lifting eye
• Well balanced chassis for best cutting performance

Specification

	Gölz FS 250 B	Gölz FS 250 D
Max Cutting depth	310 mm	310 mm
Blade diameter	800 mm	800 mm
Shaft size	25,4 mm	25,4 mm
Water-connection	Integrated water pump	Integrated water pump
Engine	Honda GX690	Hatz 2G40
Engine power (net power)	25HP/18,5kW (22HP/16,5kW)	20HP/14,7kW
Shaft speed	1.600 min-1	1.450 min-1
Feed motion	Electro-hydraulic drive	Electro-hydraulic drive
Blade depth control	Electro-hydraulic	Electro-hydraulic
Cutting depth adjustment	Continuously adjustable	Continuously adjustable
V-Belt tension	Self-adjusting belt tensioner	Self-adjusting belt tensioner
Hand Arm Vibrations
Dimensions (LxWxH)	1340x880x1040 mm	1340x880x1040 mm
Weight	285 kg	346 kg
Order-No.	0282 250 4506	0282 250 4510
