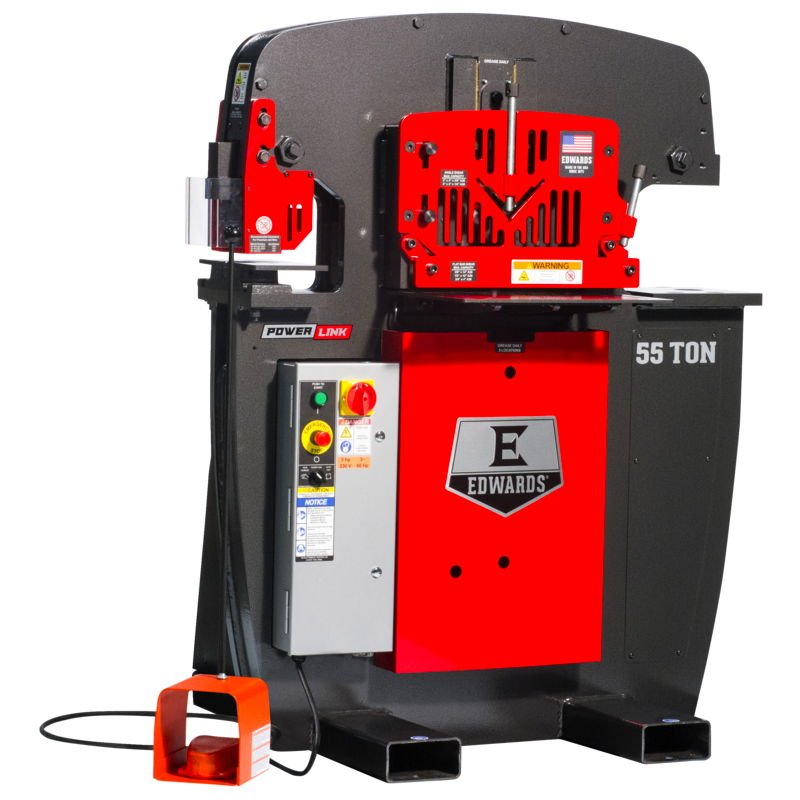

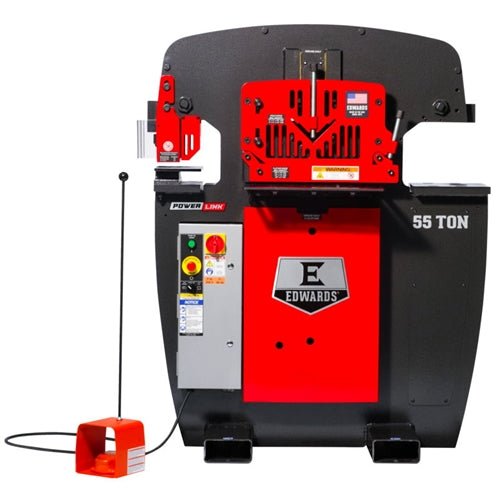

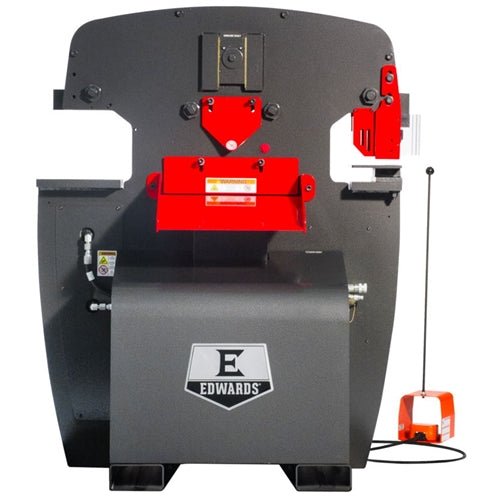

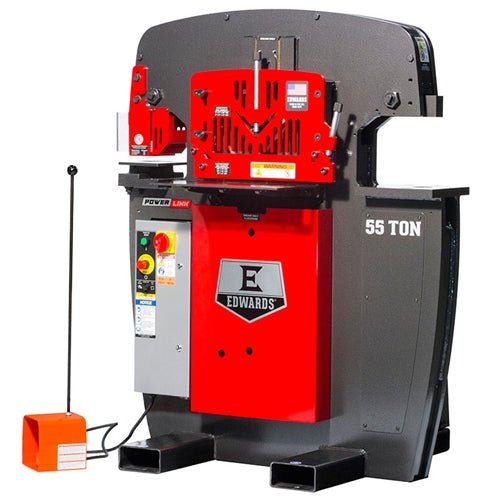

55 Ton Ironworker
SKU: ED9-IW55-1P208
The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small
Build to order: approx. 2-3 week lead time
- Four Available Workstations
- Universal Open Tooling Station
- Electric Stroke Control
- ANSI B11.5-1988R(02) Compliant
- ETL/UL Approved Controls
The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories.
The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
PUNCH
- Rating 55 Tons
- Max. Capacity 1-1/16" Dia. in 5/8" A36
- (65,000 PSI Tensile)
- Stroke 1-1/4"
- Throat Depth 7-1/2"
- Open Height 8-1/8"
- Shut Height 6-7/8"
- Work Height 36-9/16"
DIMENSIONS
- Height - 55-1/4"
- Width - 44-3/8"
- Depth - 36-1/8"
- Shipping Weight - 2480 lb
FLAT BAR SHEAR
- Max. Capacity 3/8" x 14"
- 1/2" x 12"
- 3/4" x 4"
- Max. Round 7/8"
- Max. Square 7/8"
- Work Height 34-1/2"
ANGLE SHEAR
- Max. Capacity 3" x 3" x 3/8"
- 4" x 4" x 1/4"
- Work Height 39-7/8"
OPTIONAL COPER NOTCHER
- Max. Capacity
- 2-1/2" x 4" x 5/16"
- Work Height
- 39-1/2"
OPEN STATION
- Throat Depth 11-3/16"
- Open Height 8-1/8"
- Shut Height 6-7/8"
- Stroke 1-1/4"
- Work Height 34-1/2"
GENERAL SPECIFICATIONS
- Standard Motor 5 HP 3~ 208 V or 230 V
- 1725 RPM 14 A
- Optional Motors 5 HP 3~ 460 V
- 1725 RPM 7 A
- 5 HP 3~ 575 V
- 1725 RPM 6 A
- 5 HP 1~ 230 V
- 1725 RPM 23 A
- Hydraulic Pump 3-1/2 GPM - 1 Stage
- Valve Pressure 2500 PSI
- Reservoir 7 Gallons
- Cylinder 2-1/2" Ram
