Aardwolf Auto Rotate Vacuum Glass Lifter

SKU AVGLP2-AR
Original price $3,200.00 - Original price $3,200.00
Original price
$3,200.00
$3,200.00 - $3,200.00
Current price $3,200.00

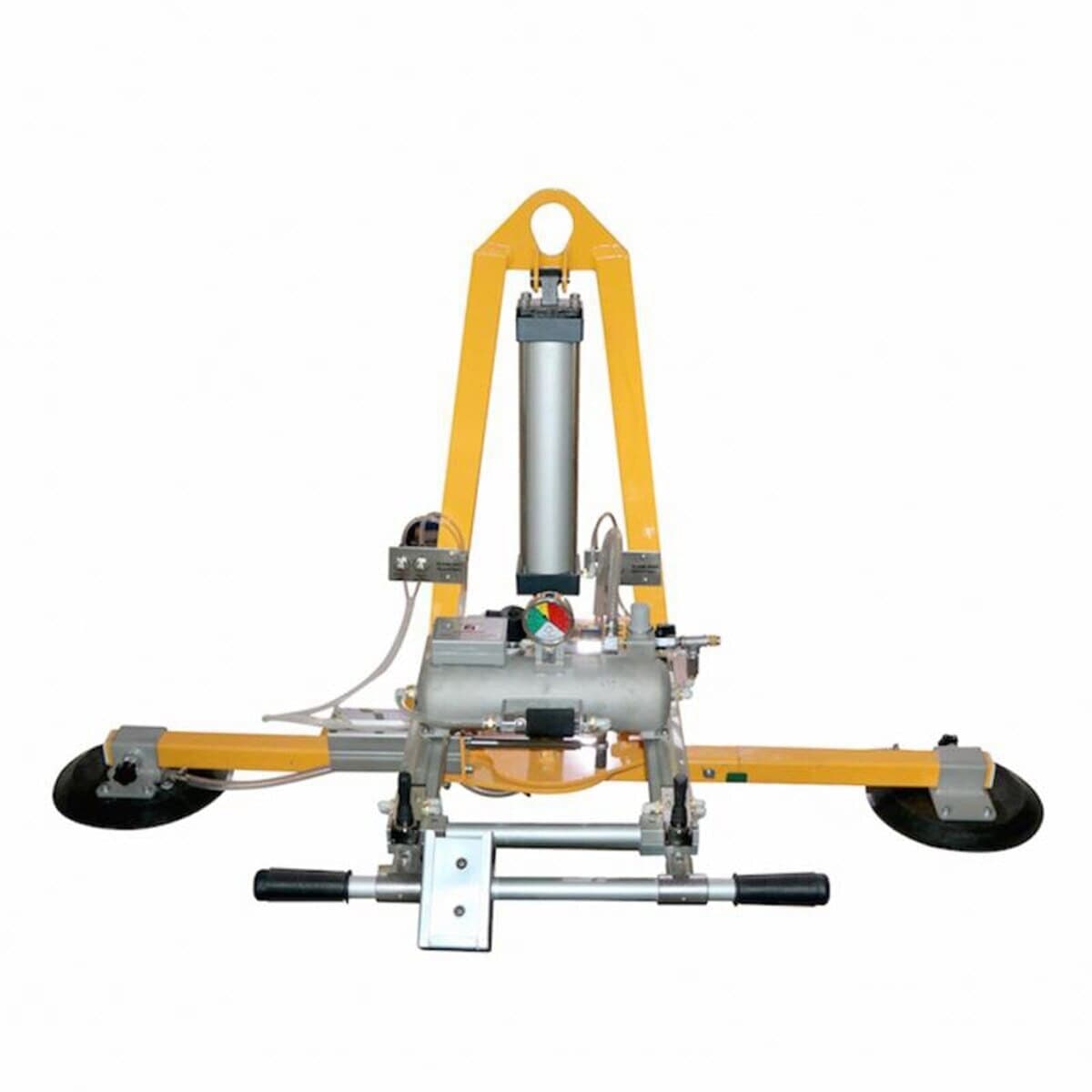

Aardwolf Auto Rotate Vacuum Glass Lifter - Designed for Lifting and Rotating Glass

The Auto Rotate Vacuum Glass Lifter AVGLP2-AR is designed to lift, tilt and rotate the glass at wide angles. In addition, the extended bars are equipped to widen the lifting coverage area.

Features:

  • Pneumatic vertical-horizontal tilting from 0 to 90°
  • 90° rotation by the air cylinder
  • Automatic vacuum pumping if vacuum loss occurs
  • Audio/visual warning system
  • Attach/release materials using the ON/OFF slide valve

Specifications:

Metric (mm-kg) Imperial (inch-lb)
Number of Pads 2 -
Pad Diameter Overall:300
Seal to seal:280
12"
11"
Working Load Limit 200 441
Net Weight 60 132
Packaging Dimensions 860 x 710 x 1170 33.8" x 28" x 46"

Battery Information for the Alarm System:

Power Supply 3.7V Lipo Battery
Battery Capacity 2000 mAh x 1
Standby Time 720 Hours
Charging Cycle 1000 Times
Charging Time 2 Hours
Non-Stop Working Time 7 Hours
6-Month Warranty -

Compressed Air Requirement:

Air Consumption 110 Liters/Minute
Supply Air Pressure 5 bars (72 psi)
