FMVLAC2 Fork Mounted Vacuum Lifting Attachment

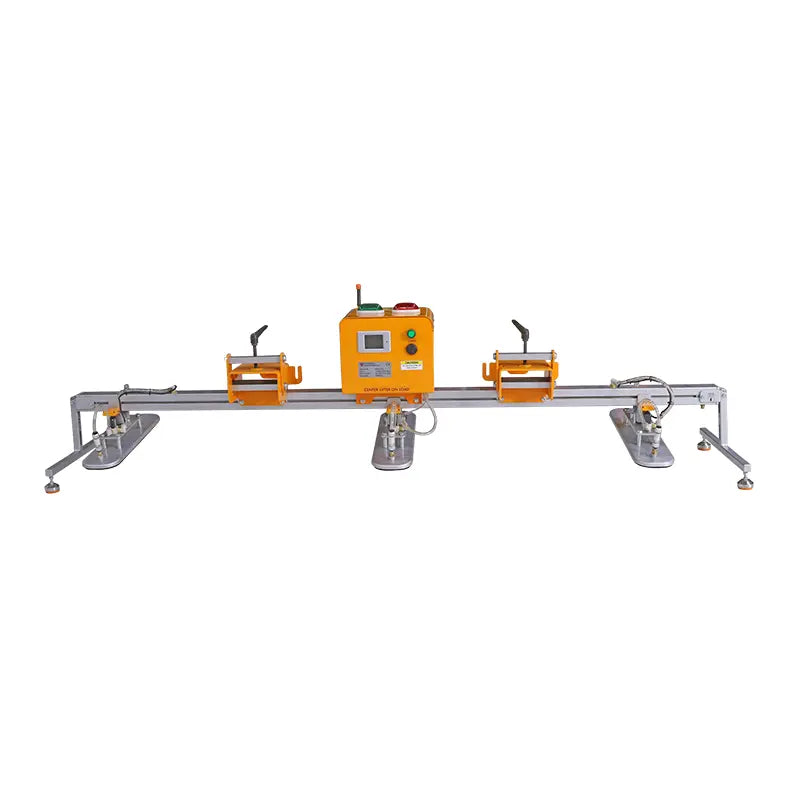

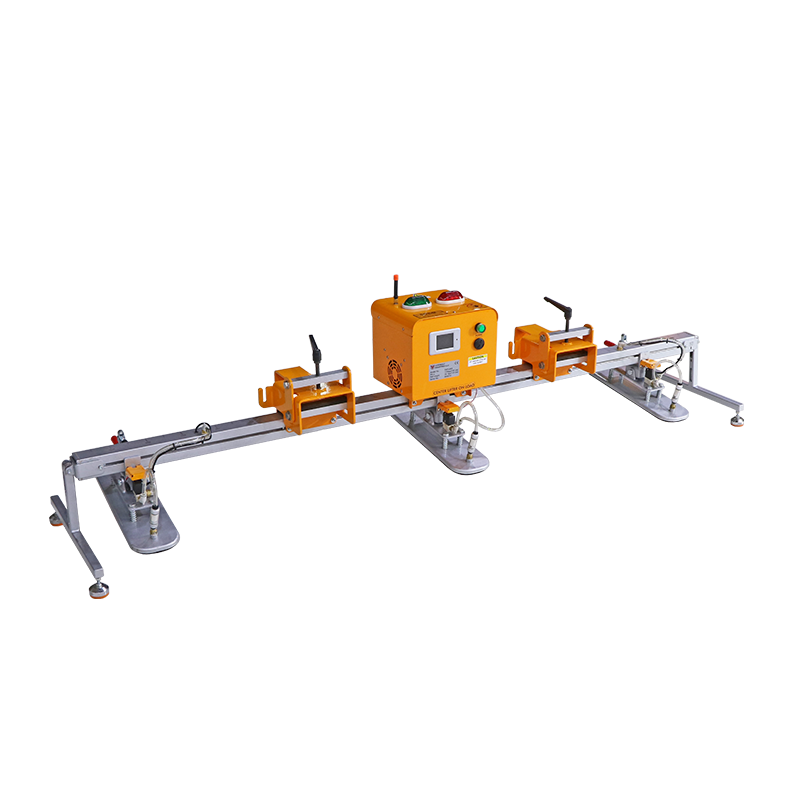

The Aardwolf Fork Mounted Vacuum Lifter (FMVLAC2) is a lightweight attachment for handling flat, non-porous materials such as stone, glass, or metal sheets.

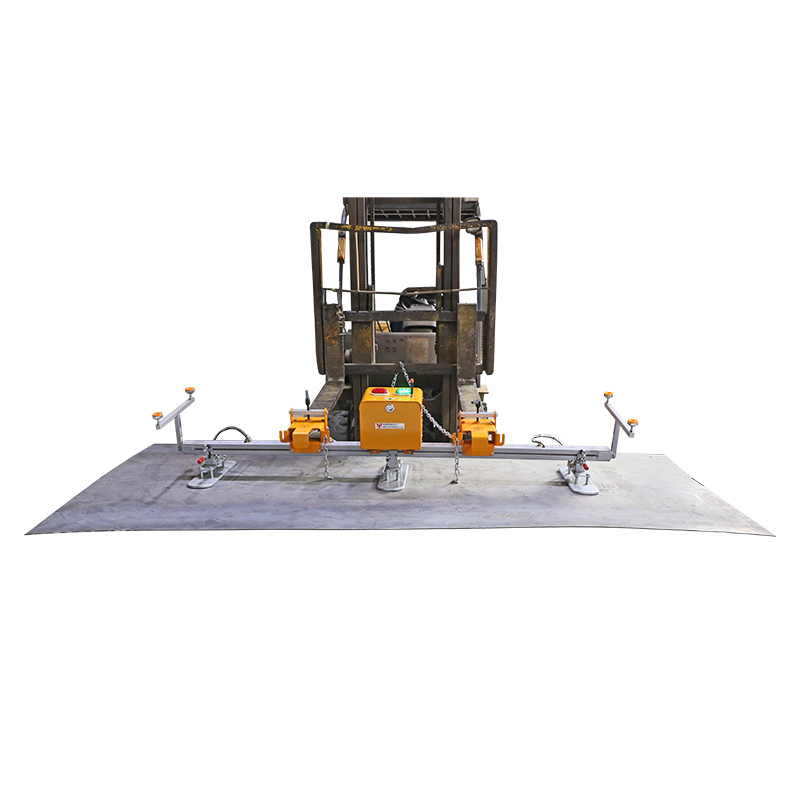

It mounts to standard forklift tines and uses a 3-pad vacuum system to lift loads up to 150 kg. The unit features remote control operation and a control box with visual and audible indicators for monitoring vacuum pressure. FMVLAC2 is suitable for workshop and job site applications requiring forklift-mounted lifting.
Features
- 3-Pad Vacuum System: Each pad includes its own filter and valve for effective suction.
- Load Positioning and Balance: Built-in measuring scale and self-locking stand ensure stable lifting.
- Easy Adjustments: Tool-free clamp adjustments for quick pad placement.
- Vacuum Pressure: Monitoring Control box displays real-time pressure with audio-visual alerts.
- Wireless Remote Control: Operate the system from a distance for greater safety and convenience.
Specifications
|
|
Metric |
Imperial |
|
Number of pads |
3 |
- |
|
Pad sizes |
500 x 133 mm |
19.7 x 5.2" |
|
Working load limit |
150 kg |
331 lbs |
|
Net weight |
65 kg |
143 lbs |
|
Gross weight |
100 kg |
220 lbs |
|
Packaging dimensions |
2390 x 600 x 735 mm |
94 x 23.6 x 28.9" |
- Battery Information
|
Power supply |
24V Lithium battery |
|
Standby time |
>100 hours |
|
Charging cycle |
1000 times |
|
Charging time |
5 hours |
|
Vacuum pump’s continous working time |
3 hours |
|
Vacuum flow rate |
70 litters/ minutes |
|
Motor |
24V – 4.5A |
