Aardwolf Billet Lifter
Aardwolf Billet Lifter

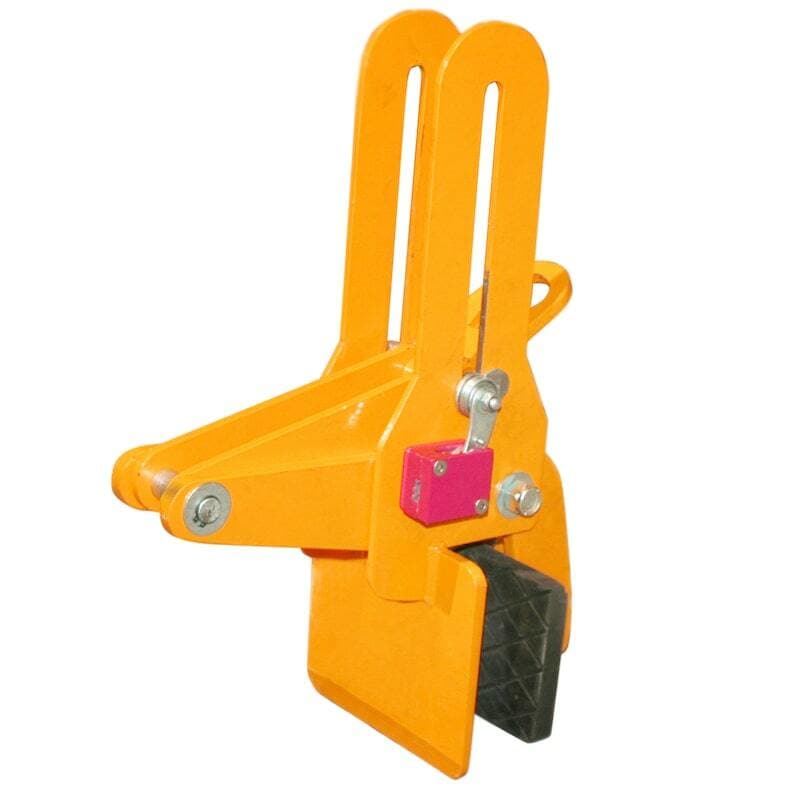

The Aardwolf Slab Billet Clamp utilizes gravity to grip and release materials. The machine is used for handling marble and granite slabs from the billet saw.
Features:
- A gravity hoisting device is used to control the opening and closing of the clamp
- The clamp has one movable jaw, which is lined with rubber
- The clamp uses the weight of the load to generate a closing force and the friction generated by the clamping force to clamp the slabs
Specifications:
Metric (mm-kg) |
Imperial (inch-lb) |
|
Grip Range | 5 - 60 | 0.2" - 2" |
Working Load Limit | 200 | 441 |
Net Weight | 16 | 35 |
Gross Weight | 17 | 38 |
Packaging Dimensions | 570 x 185 x 320 | 22.4" x 7.3" x 12.6" |
