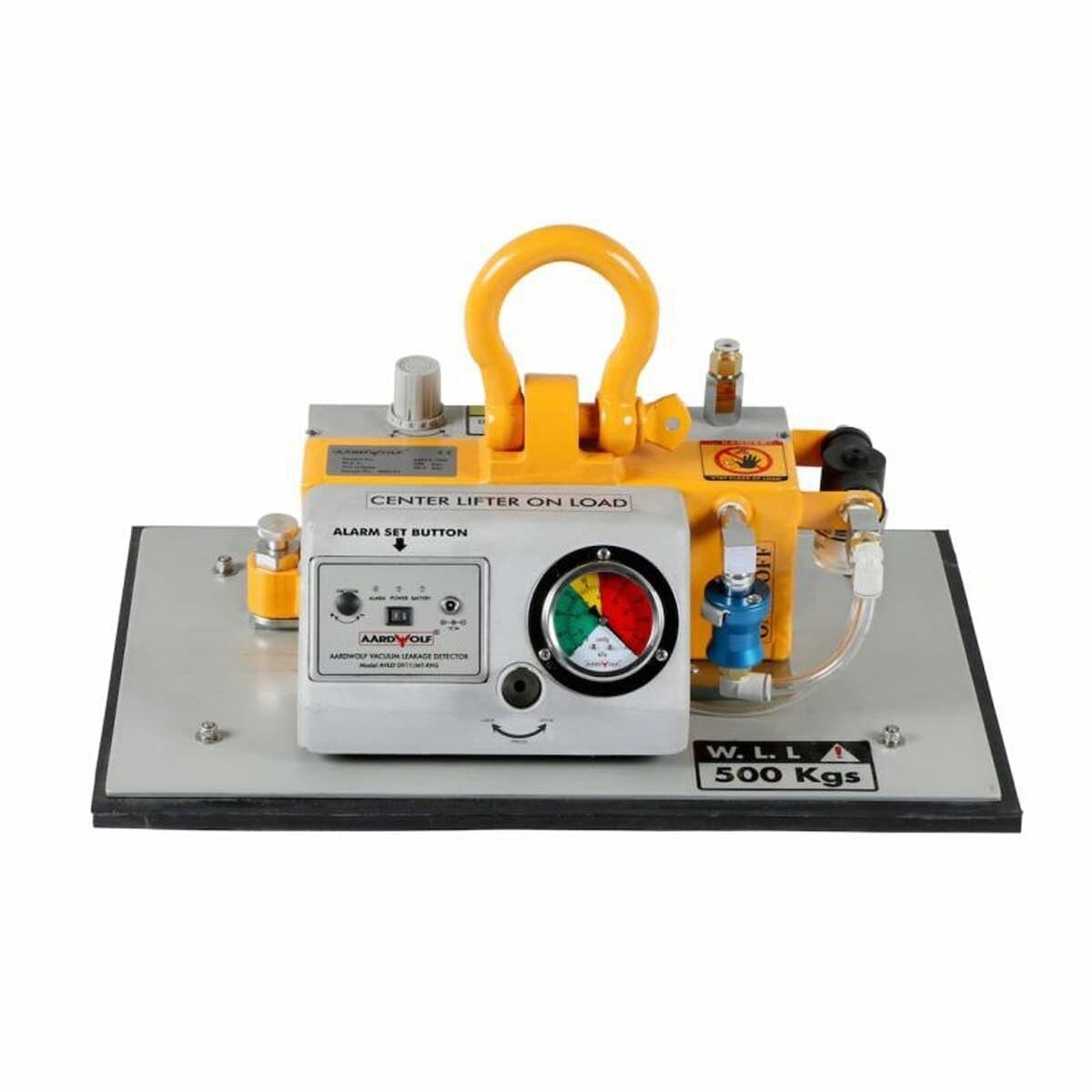

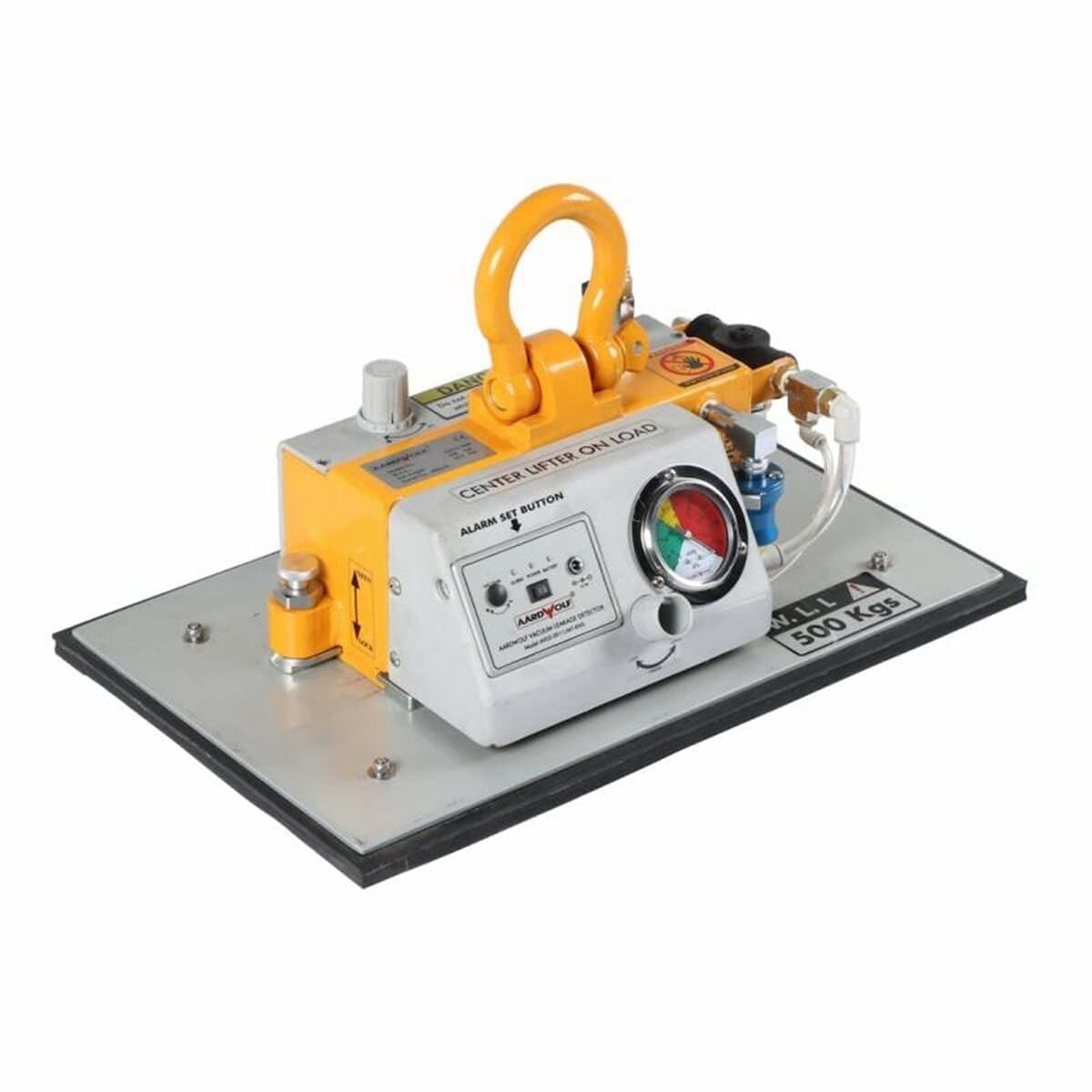

Single Pad Vacuum Lifter designed to used compressed air for lifting porous and non porous objects

Features of Vacuum Lifter:

Vacuum lifter, model AHVL 500 is powered by venturi vacuum generator, which requires a source of compressed air in order to function but require no electricity. The vacuum generator has no moving parts and therefore no lubrication is required.

  • Quick change vacuum pad system.
  • Slider valve with on & off position for the attachment of material to vacuum pads and release of material from vacuum pads.

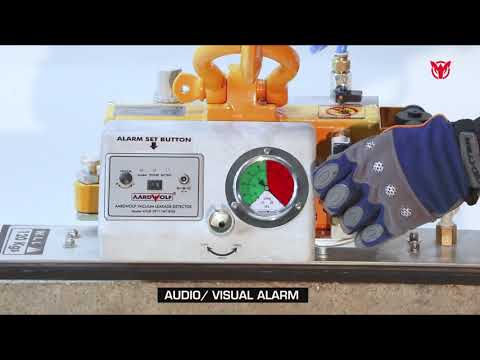

  • Acoustic alarm system. Independently powered by small a 9 V rechargeable battery.
  • Vacuum gauge for visual warning of low vacuum.
Model Working load limit Net weight Gross Weight
Package Dimension
AHVL500 20.5 x 5.5: 265 lbs
20.5 x 6.3: 397 lbs
20.5 x 8.7: 639 lbs
20.5 x 12.6: 1058 lbs
63 lbs 75 lbs 22 x 13.7 x 11.4

Some of Aardwolf Vacuum Lifter Models:

AVLP 2 - 2 Pad Vacuum Lifter

AVLP 4 - 4 Pad Vacuum Lifter

ABL380 - Block Lifter

ABL1000 - Block Lifter

ARGL0500DC - Vacuum Glass Lifter

AHVL500 - Handy Vacuum Lifter
