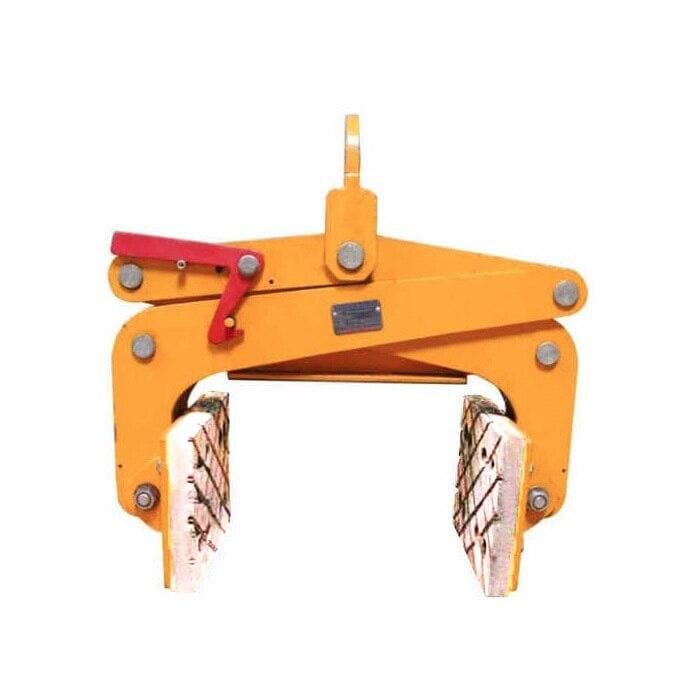

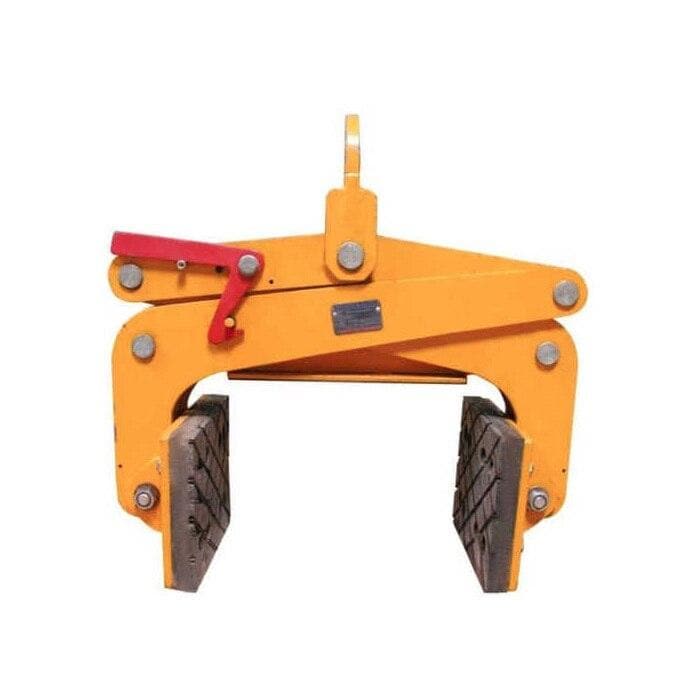

Abaco SC350 Scissor Clamp
Abaco Scissor Clamp 350 for moving stone slabs, concrete, blocks, and more!
Abaco Scissor Clamp 360 is a lifter for clamping and moving stone slabs. Abaco Machines makes several stone lifting clamps all with different lifting capabilities. The scissor lifting clamp comes with rubber pads making it safe to move the stone throughout the shop.
- Durable, fully vulcanized rubber pads.
- All natural rubber provides a better grip.
- Protected rubber across the jaws prevents chipping.
- Swivel Eye and Bow Shackle included.
- Replacement pads available

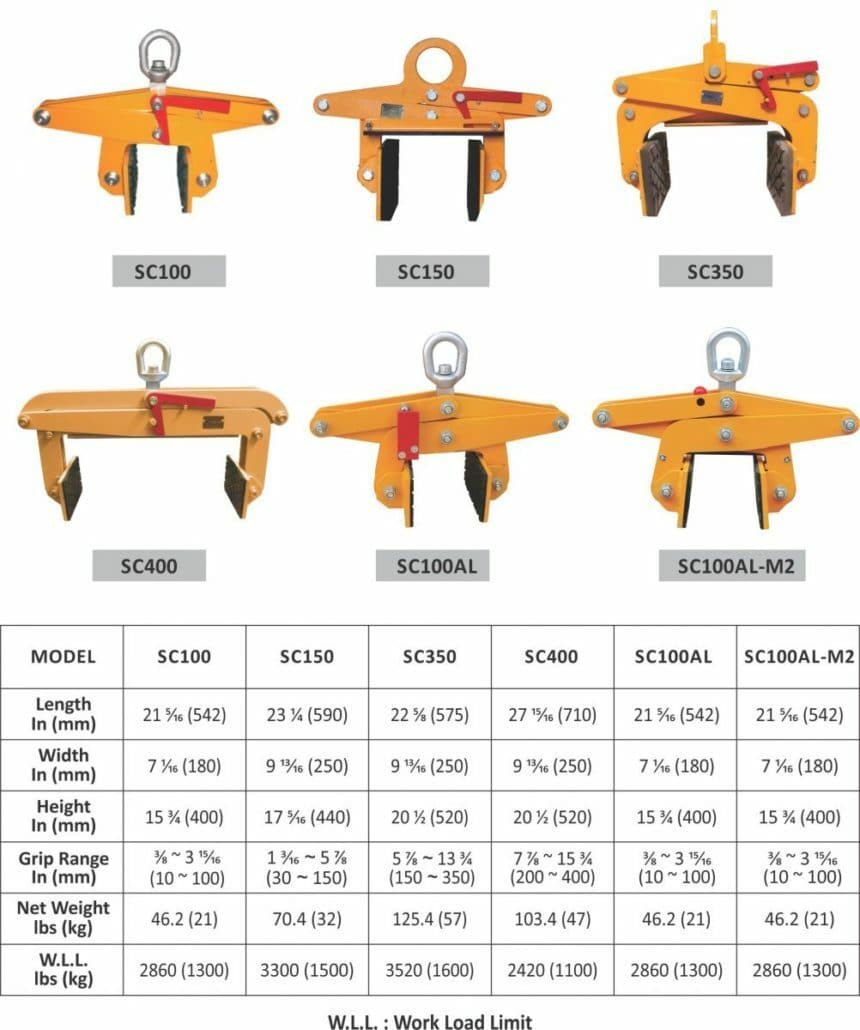

Abaco Scissor Clamps Comparison Chart
Model |
||||||
|
Length In (mm) |
21 5/16 (542) |
21 1/4 (540) |
21 5/16 (542) |
23 1/4 (590) |
22 5/8 (575) |
28 1/8 (715) |
|
Width In (mm |
7 1/16 (180) |
7 1/16 (180) |
7 1/16 (180) |
9 13/16 (250) |
9 13/16 (250) |
7 1/16 (180) |
|
Height In (mm) |
15 3/4 (400) |
15 3/4 (400) |
15 3/4 (400) |
17 5/16 (440) |
20 1/2 (520) |
18 7/8 (480) |
|
Grip Range In (mm) |
(3/8 - 3 15/16) (10 ~ 100) |
(3/8 ~ 3 15/16) (10 ~100) |
(3/8 - 3 15/16) (10 - 100) |
(1 3/16 - 5 7/8) (30 - 150) |
(5 7/8 - 13 3/4) (150 - 350) |
(7 7/8 - 15 3/4) (200 - 400) |
|
Net Weight lbs (kg) |
46.2 (21) |
46.2 (21) |
46.2 (21) |
70.4 (32) |
125.4 (51) |
103.4 (38) |
|
W.L.L. lbs (kg) |
2860 (1300) |
2860 (1300)
|
2800 (1300) |
3300 (1500) |
3520 (1600) |
2420 (1100) |
