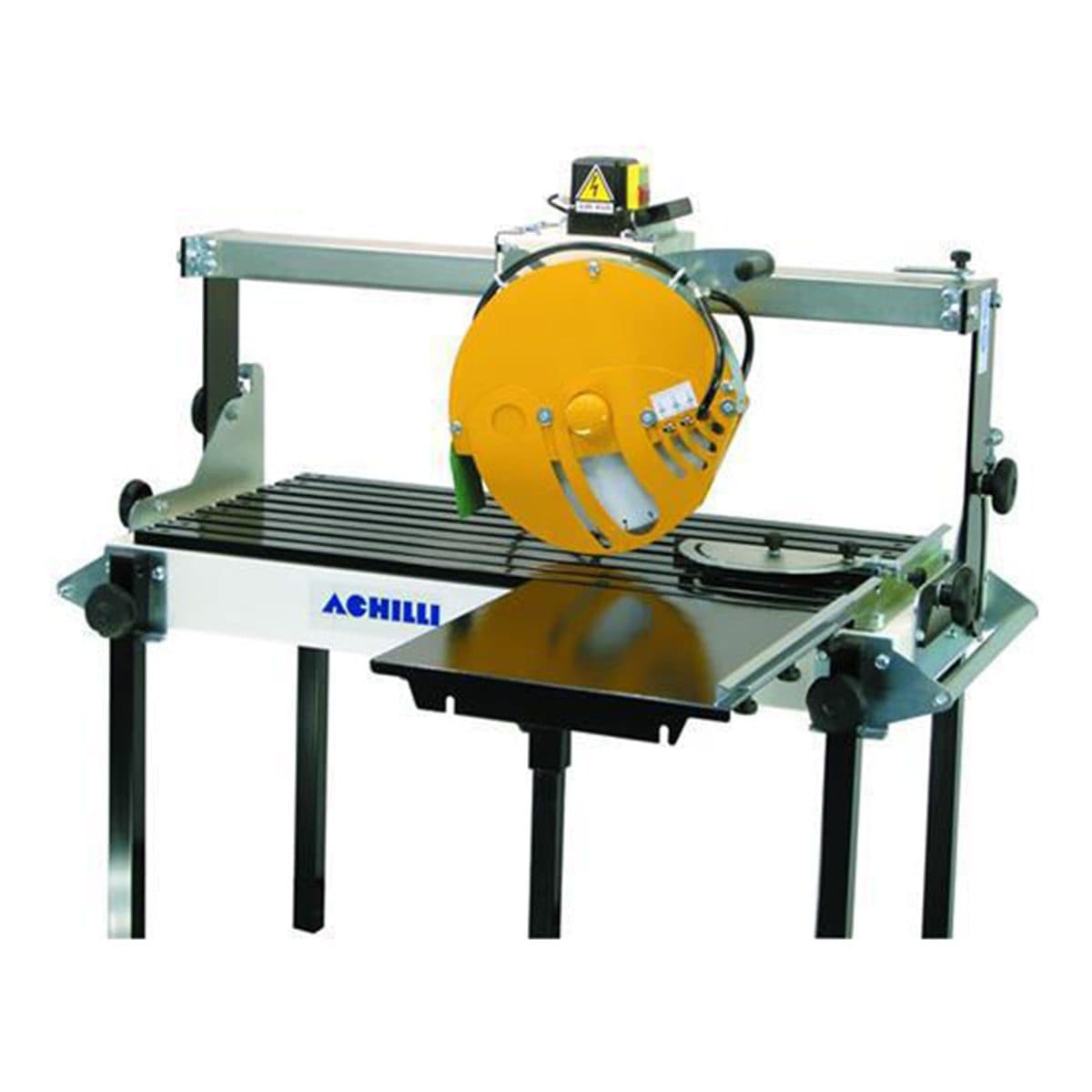

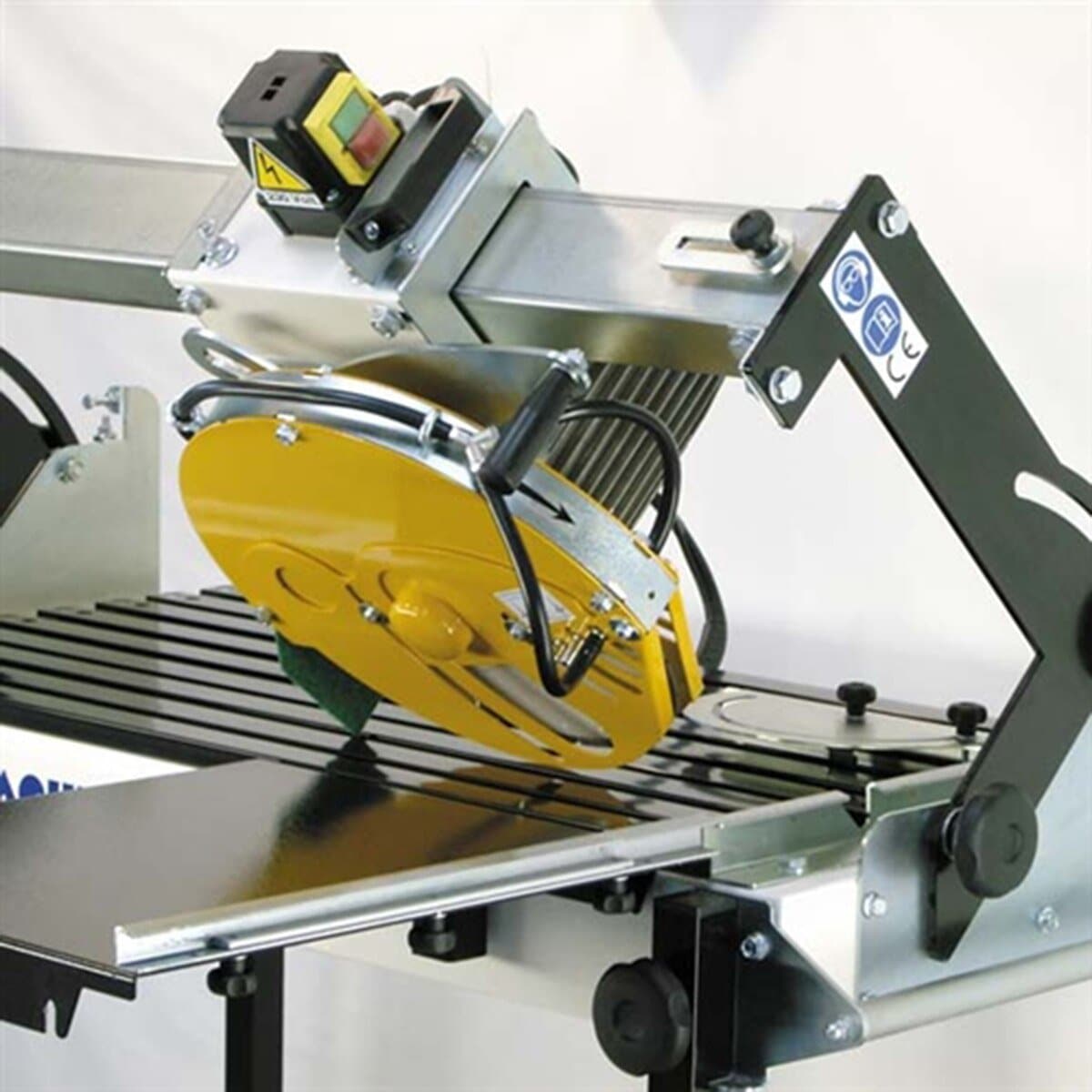

Achilli AMS 100 Tile Saw cutting length up to 40"

The AMS 100 portable stone saw is a compact and sturdy stone cutting machine that has a sliding head. Stone cutters and installers can use this machine as a wet stone saw. Additionally, the AMS 100 works as a tile saw. Professionals can rely on the quality of this saw and its accuracy is also guaranteed. The features of this stone & tile saw are as follows:

Standard Features

  • Head Motion - Stone professionals can make cuts up to 39" with this saw's useful cut length.
  • Depth Adjustment - Operators are able to adjust the cutting depth manually by means of the "plunge" cutting mechanism.
  • Worktable - Customers can choose galvanized steel rail worktable with rail width of 21" or 26".
  • Tilting Bridge - Tile and stone pros can make cuts from 90° to 45° because of the bridge tilt feature on this saw.
  • Water Tank - This wet saw has a built in recycling pump in the water tank.
  • Portability - Tile and stone installers can fold the legs up on this saw, so it is great for on site installers or tilers needing a portable saw for cutting stone.

Optional Features

  • Extension Table - Customers can optionally include extension table(s) to allow for additional support.

Useful Cut 39"
Diamond Blade Diameter 10", 12", 14 "
Blade Bore Size 1"
Motor Power 2kW = 2.7HP 1-phase
Motor Rotation Speed 2800 rpm 50Hz - 3400 rpm 60Hz
Standard Voltage 1-Phase 230V-50/60Hz
