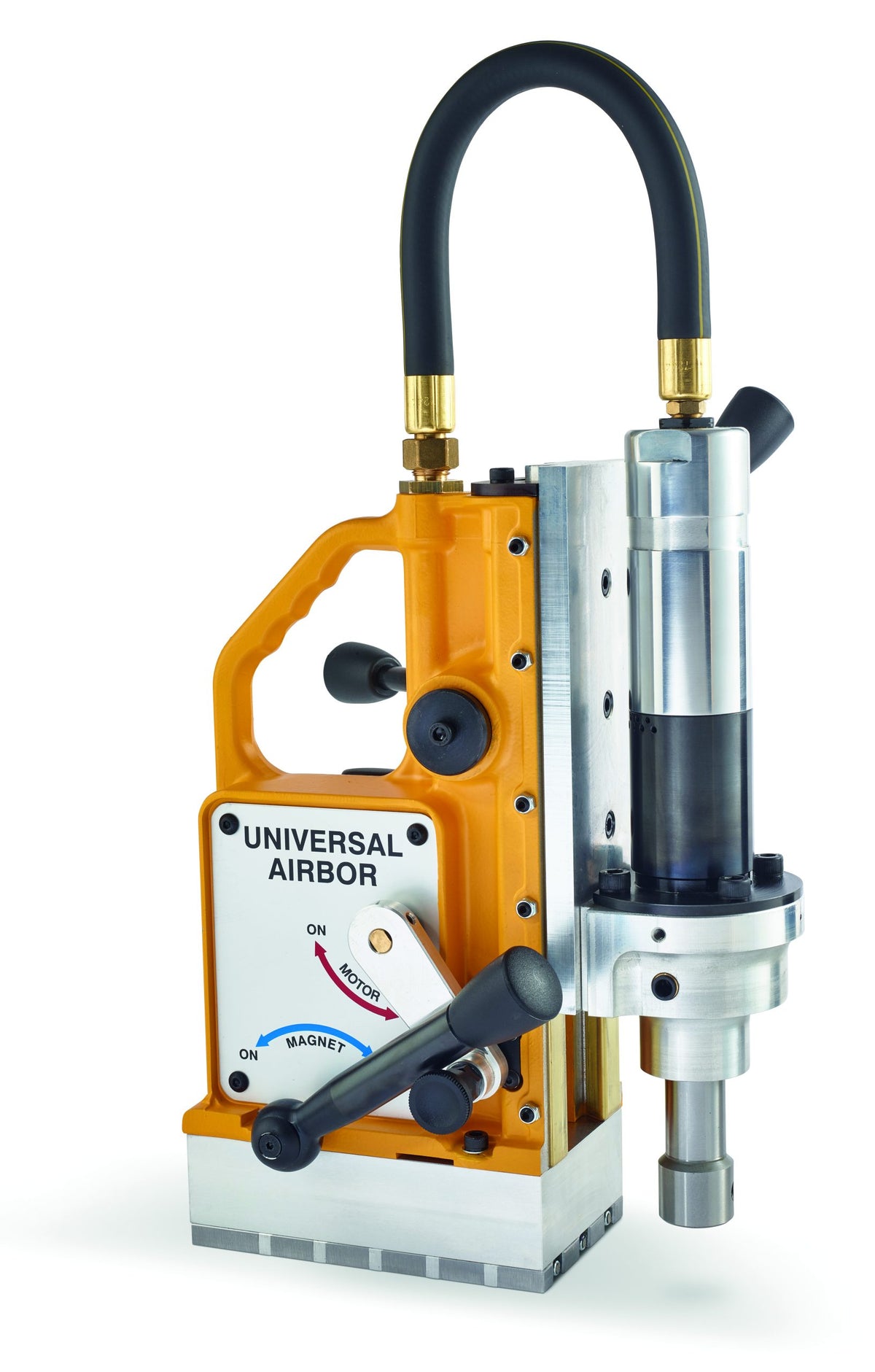

AIRBOR Pneumatic Magnetic Drill — High-Performance Spark-Free Drilling

The AIRBOR is a pneumatic magnetic drill engineered specifically for spark-free and hazardous environments where electrical power sources are not permitted. Built from anti-spark, anti-static materials throughout, it delivers reliable annular cutter performance powered entirely by compressed air. With a 2" cutter capacity and 2" depth of cut at 400 RPM, it is suited to a wide range of structural steel drilling applications. The integrated PERMAMAG permanent magnet system maintains workpiece adhesion even in the event of an air supply interruption, providing an added layer of job-site safety.

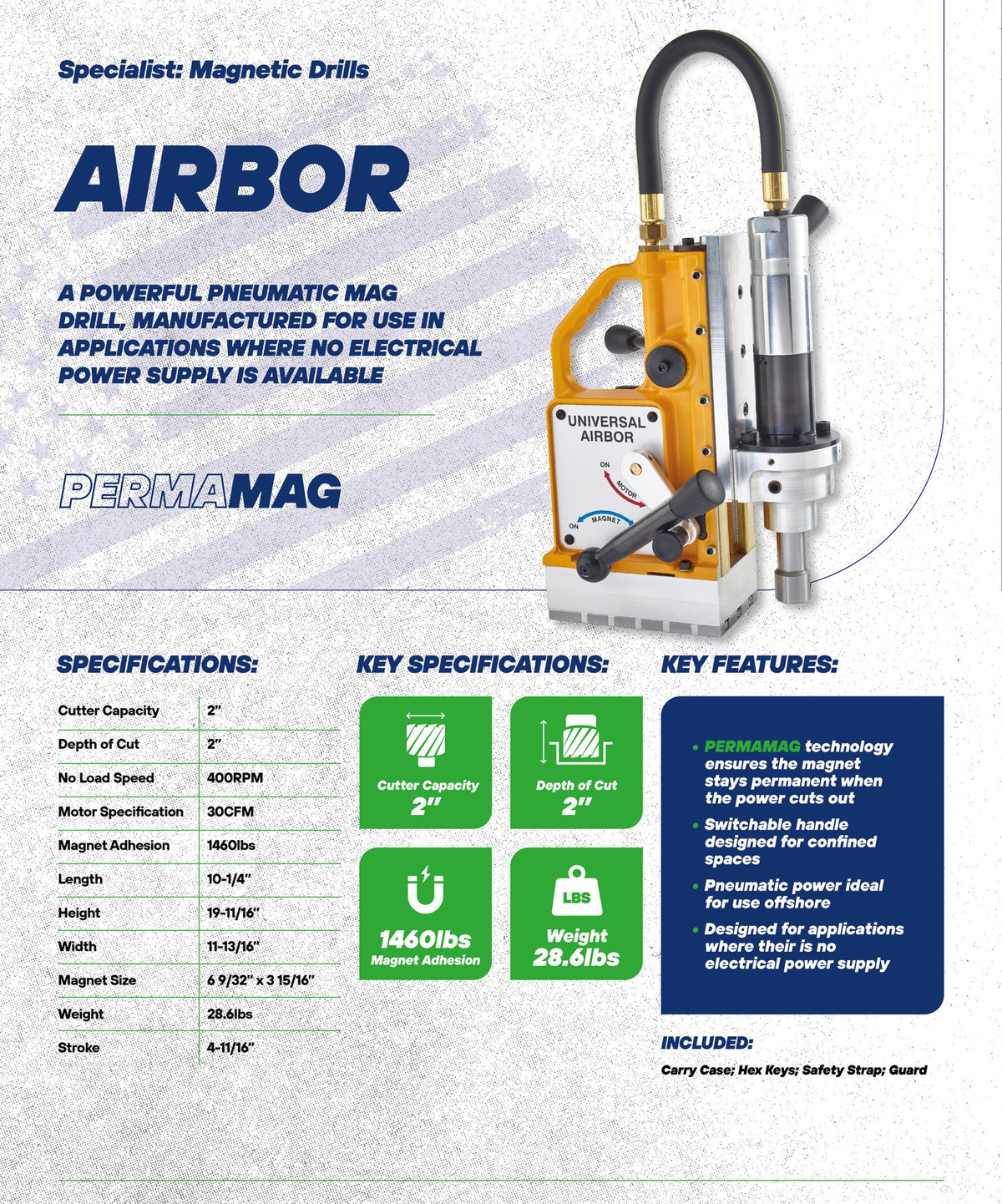

Technical Specifications

Unlike conventional electric magnetic drills, the AIRBOR requires no electrical power supply, making it the purpose-built solution for environments where ignition risk from electrical equipment is unacceptable. The PERMAMAG system further differentiates it from electromagnet-only designs by ensuring the drill remains secured to the workpiece even if the air supply is lost, a critical safety advantage in overhead or vertical drilling positions.

Key Features & Benefits

Spark-Free, Anti-Static Construction

The AIRBOR is manufactured from anti-spark, anti-static materials throughout, making it compliant with the demands of hazardous and potentially explosive environments. Contractors working in refineries, petrochemical plants, shipyards, or other classified zones can drill with confidence that the tool itself will not introduce an ignition source.

PERMAMAG Permanent Magnet System

The PERMAMAG technology uses a permanent magnet rated at 1,460 lbs of adhesion, meaning the drill stays locked to the workpiece even if the pneumatic supply is cut or fails unexpectedly. This eliminates the drop risk associated with electromagnet-only designs and is a critical safety feature for overhead and positional drilling.

Pneumatic Power — No Electrical Supply Required

Powered entirely by compressed air at 30 CFM, the AIRBOR can be deployed anywhere a suitable air supply is available, without the need to run electrical power to the work area. This simplifies setup in remote, confined, or hazardous locations where electrical equipment is restricted or impractical.

2" x 2" Cutter Capacity

With a 2" diameter and 2" depth of cut capacity, the AIRBOR handles a wide range of annular cutter sizes suitable for structural steel fabrication and site drilling tasks. The 4-11/16" stroke provides ample travel for full-depth cuts in a single pass.

Compact and Portable with Carry Case

At 28.6 lbs and supplied with a dedicated carry case, the AIRBOR is designed for transport between job sites and deployment in tight or restricted work areas. The included safety strap, hex keys, and guard mean the tool arrives ready to work without additional procurement.

Common Applications

Hazardous and Classified Zone Drilling

The anti-spark, anti-static construction makes the AIRBOR the correct tool for drilling in environments classified as potentially explosive, such as oil and gas facilities, chemical plants, and fuel storage areas.

Structural Steel Fabrication

With a 2" cutter capacity and 1,460 lbs of magnetic adhesion, the AIRBOR is well suited to drilling holes in structural steel sections, beams, and plates on fabrication sites or in the field.

Shipbuilding and Marine Applications

Shipyards frequently restrict electrical equipment in certain areas; the AIRBOR's pneumatic power source and spark-free materials allow drilling operations to continue safely in these zones.

Locations Without Electrical Power Access

Wherever a compressed air supply is available but electrical power is not, the AIRBOR provides full magnetic drilling capability without the need for generators or electrical infrastructure.

Compatible Materials

• Structural steel
• Mild steel plate and sections
• Steel beams and columns
• Steel fabrications and weldments

Product Documents

• AIRBOR Assembly & Parts List Manual

Frequently Asked Questions

Q: What happens to the magnet if the air supply is interrupted during drilling?
A: The AIRBOR uses PERMAMAG permanent magnet technology, which means the magnet retains its 1,460 lb adhesion force even when the pneumatic power supply is cut or fails — the drill will not drop from the workpiece.

Q: What air supply is required to operate the AIRBOR?
A: The AIRBOR motor is rated at 30 CFM. Ensure your compressor and supply line can sustain this flow rate at the required operating pressure for consistent performance.

Q: Is the AIRBOR suitable for use in explosive or hazardous atmospheres?
A: The AIRBOR is manufactured from anti-spark, anti-static materials and is powered pneumatically with no electrical supply required, making it designed for use in spark-free and hazardous environments. Contractors should verify suitability against the specific classification of their work area.

Q: What accessories are included with the AIRBOR?
A: The AIRBOR ships with a carry case, hex keys, a safety strap, and a guard as standard.

Q: What is the maximum cutter size the AIRBOR accepts?
A: The AIRBOR accepts annular cutters up to 2" in diameter with a maximum depth of cut of 2".
