Auger Drives

Auger Drives

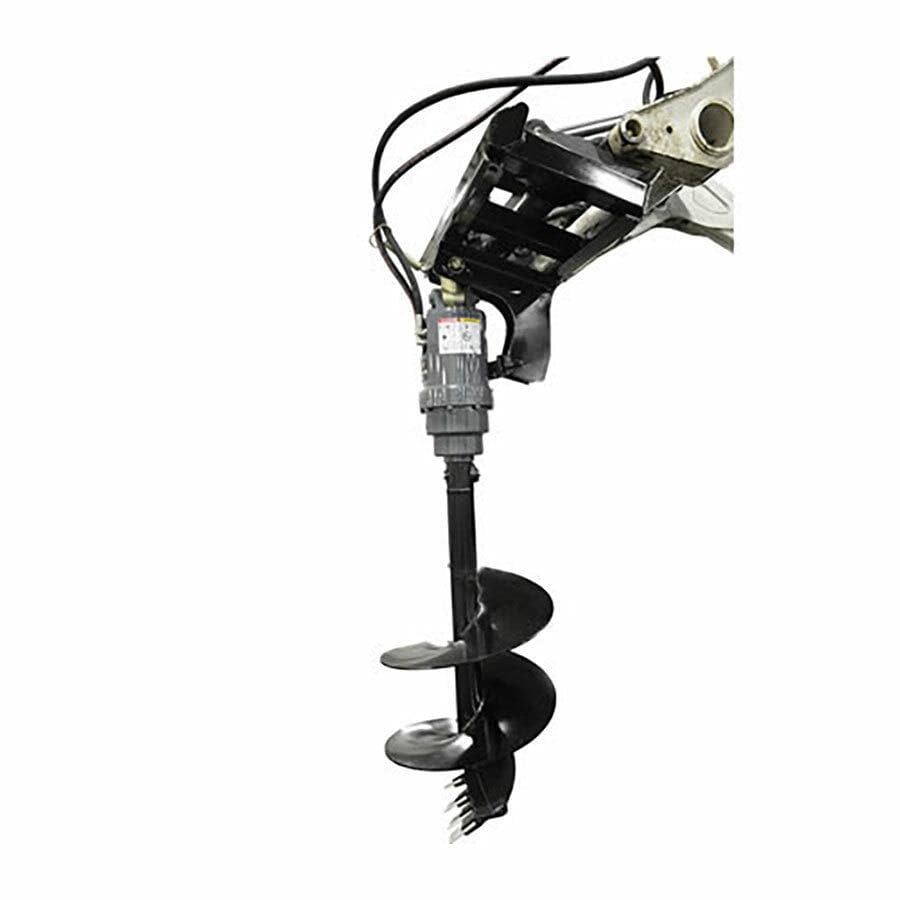

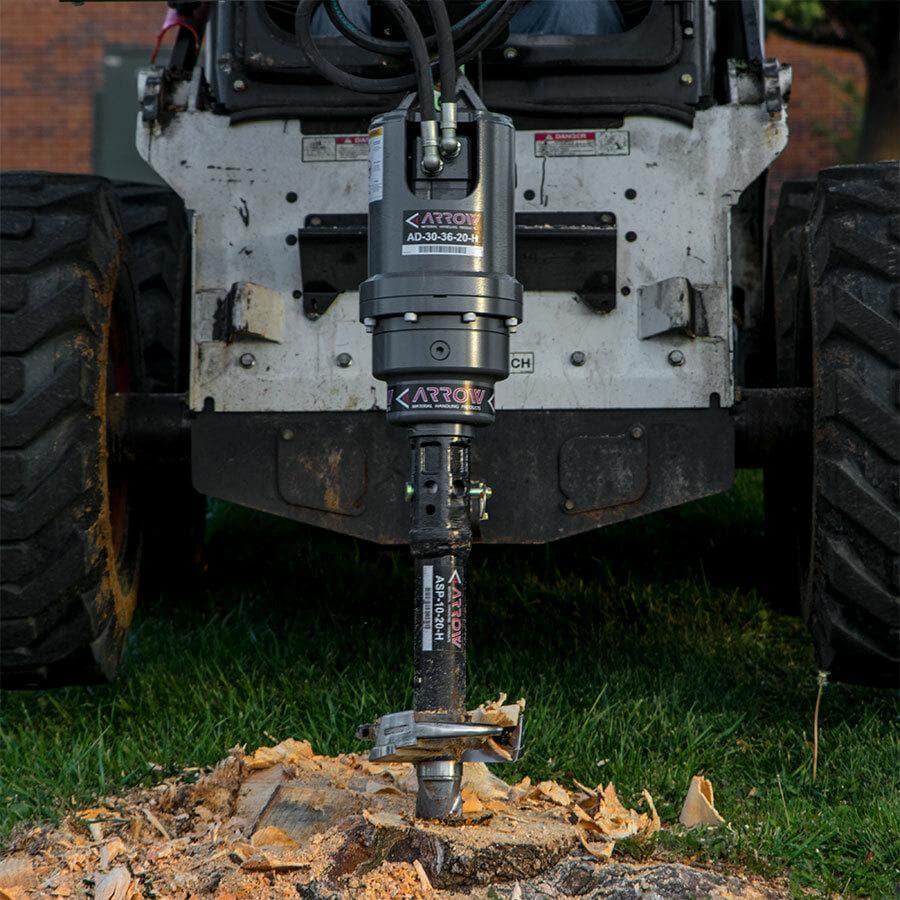

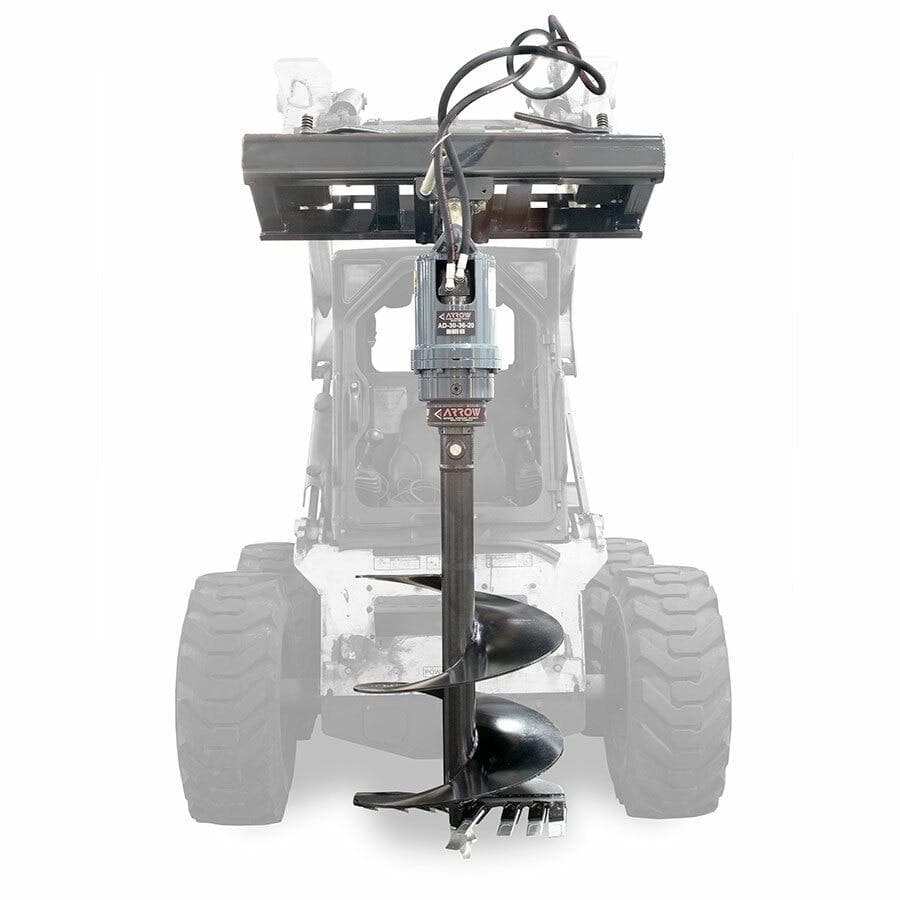

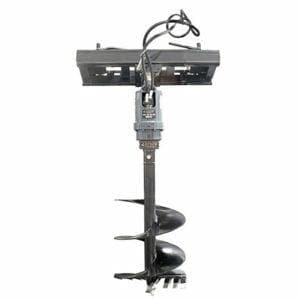

The Arrow Auger Drive is made to dig deep while resisting dust and corrosion. 2" Hex, 2.5" Hex and 2.56" Round shaft diameter drives are available and fit a variety of Arrow auger bits, adapters and extensions. Drive attachable tools like the Arrow Stump Planer and Concrete Mixer increase the drive's versatility. The drive comes standard with high quality hoses and couplers. Custom hitches and mounts are available for most applications.

Features

• Designed for both Low-Flow and Hi-Flow Applications from 7 - 40 GPM and provide from 600 - 6000 ft-lbs of Torque
• Professional grade hydraulic hoses and couplers ensure consistent hydraulic flow.
• A sealed planetary gearbox keeps out dust and resists corrosion
• The direct drive motor increases performance and requires less maintenance
• Single piece shaft assembly prevents the shaft from accidental dislodgement while in use
• Best-in-class forged hood ears and locking hood pins prevent drive from detaching

Brochure

AUGER DRIVE SYSTEMS
With 2" Hex Shafts	Includes: Auger Drive, Hoses, Frame and Cradle
MD-17-20-20-H-334	For equipment with up to 17GPM flow and accepts bits from 4" - 20"
AD-25-30-20-H-UN	For equipment with up to 25GPM flow and accepts bits from 4" - 30"
AD-30-36-20-H-UN	For equipment with up to 30GPM flow and accepts bits from 4" - 36"
With 2.5" Hex Shafts	Includes: Auger Drive, Hoses, Frame and Cradle
AD-35-36-25-H-UN	For equipment with up to 35GPM flow and accepts bits from 6" - 36"
AD-40-48-25-H-UN	For equipment with up to 40GPM flow and accepts bits from 6" - 48"
With 2.56" Round Shafts	Includes: Auger Drive, Hoses, Frame and Cradle
AD-25-30-20-R-UN	For equipment with up to 25GPM flow and accepts bits from 4" - 30"
AD-30-36-20-R-UN	For equipment with up to 30GPM flow and accepts bits from 4" - 36"
