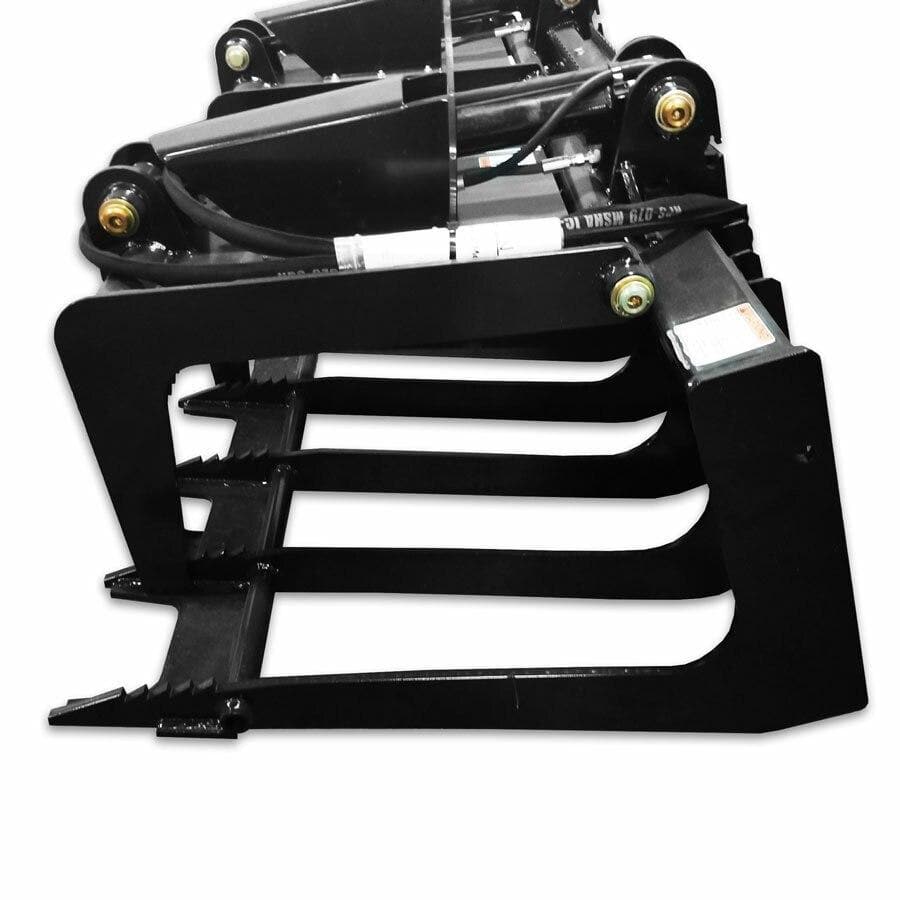

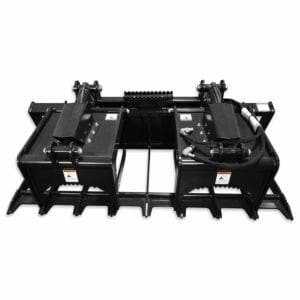

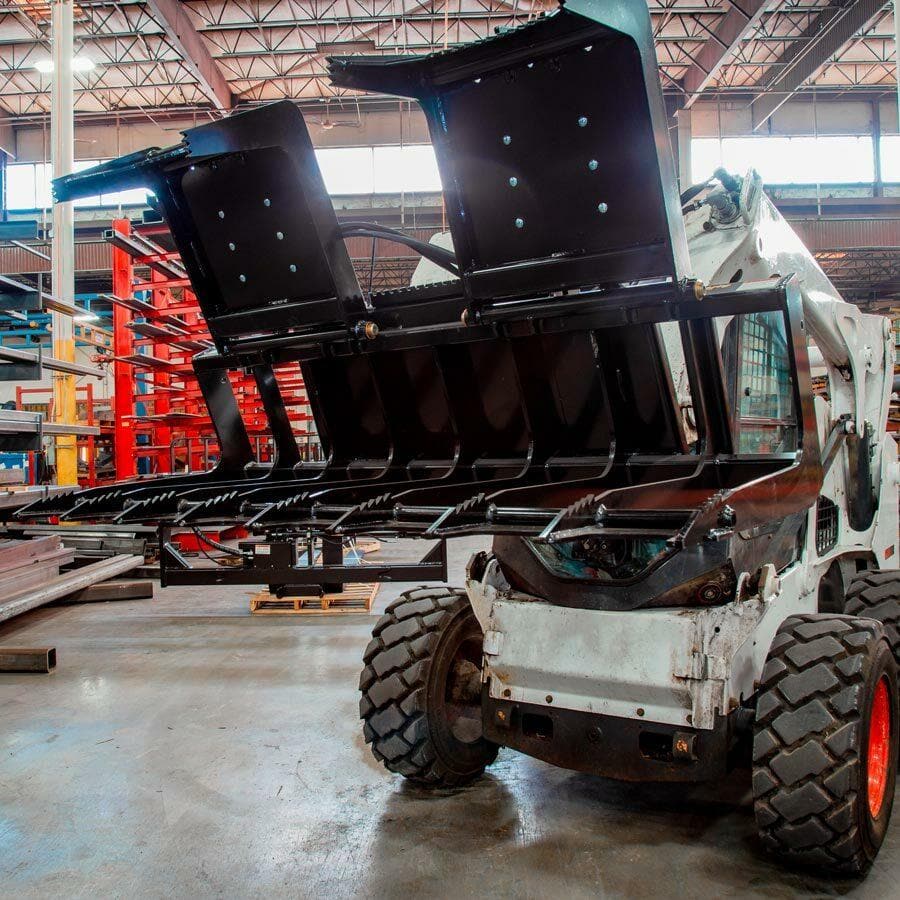

Root Grapple

Root Grapples perfect for hauling brush and lumber by Arrow Material Handling Solutions and Diamond Tool Store

The Root Grapple is an independent two cylinder grapple perfect for hauling brush and lumber. Constructed with Grade 50 Steel for increased durability, this grapple is ideal for debris removal, disaster clean-up, and land clearing. Available in two widths, both models feature cylinders with NitroSteel rods protected from damage by guards.

Features

• Available in 72' and 84' wide models
• Height of 20.5"
• The 72" model has 9 tines, while the 84" has 10 tines
• Grapple opening of 35"
• Every tine is constructed from one piece of high-grade steel
• Open bottom allows dirt to fall through the tine spacing
• NitroSteel rods resist corrosion, dents, and flakes
• Teflon coated bushings keep the jaw hinge lubricated
• Tine spacing provides the operator with excellent vision
• Made in the USA

Product #	23072RUNG	23084RUNG
Width	72"	84"
Depth	37"	37"
Height	20.5"	20.5"
Number of Tines	9 tines	10 tines
Space Between Tines	8.5"	8.9"
Tine Thickness	0.5"	0.5"
Grapple Arm Thickness	0.5"	0.5"
Grapple Opening	35"	35"
Approximate Weight	805 lb	850 lb
