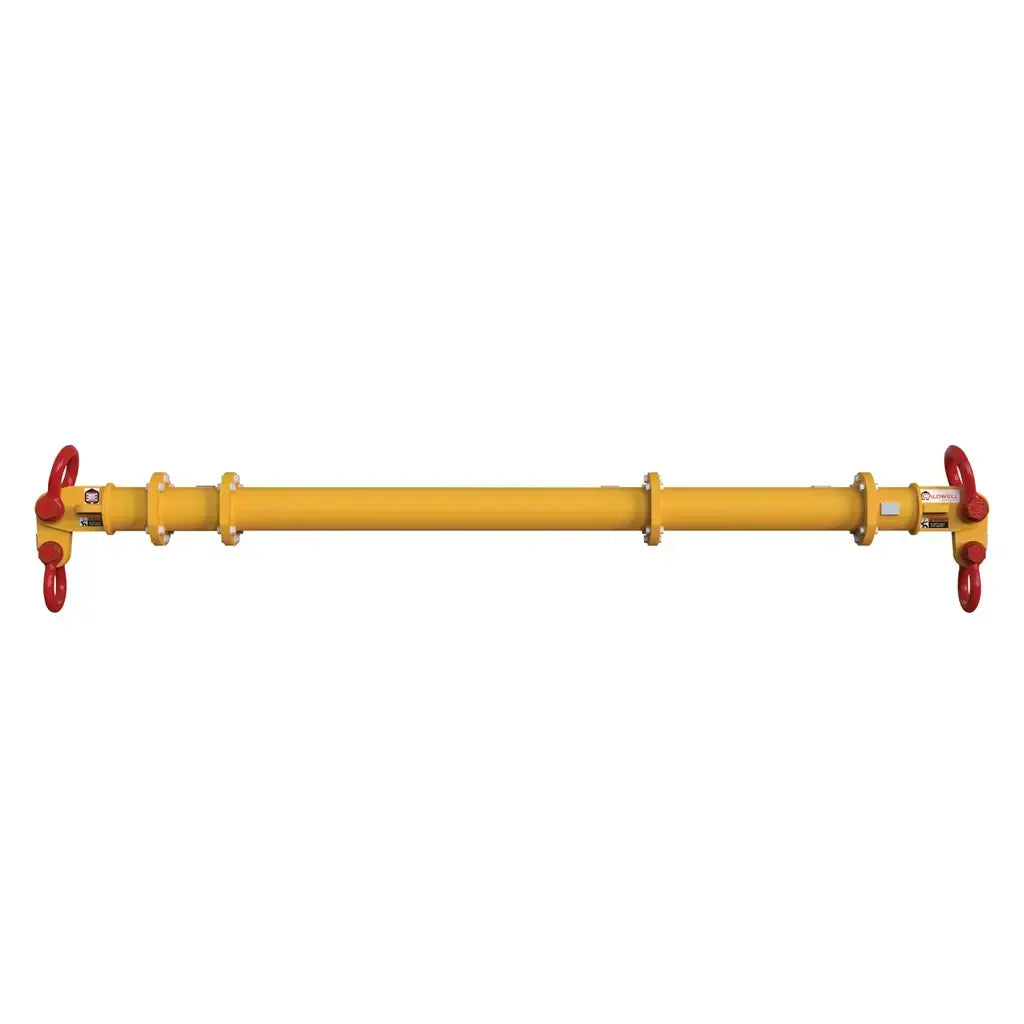

Caldwell Dura-Mod® DM50 Modular Spreader Beam System

The Caldwell Dura-Mod® Model DM50 is a 50 metric ton modular spreader beam system designed to provide maximum flexibility for lifting heavy and oversized loads. Its innovative bolt-together design allows users to configure beam spans from 3 feet to 41 feet using interchangeable spreader sections, end fittings, and drop links. Instead of purchasing multiple fixed-length spreader beams, contractors and industrial lifting professionals can build the exact beam configuration required for each lift using a common set of components.

Designed for demanding industrial environments, the DM50 is manufactured to meet ASME B30.20 and ASME BTH-1 Design Category B, Service Class 0 requirements. The modular system minimizes storage space, reduces transportation costs, and provides outstanding versatility for steel fabrication, precast concrete, energy, shipbuilding, heavy construction, manufacturing, and industrial maintenance applications.

Features

Modular Bolt-Together Design

• Modular Dura-Mod® construction
• Configure beam lengths from 3 ft to 41 ft
• Multiple spread combinations
• Reusable modular components
• Easy field assembly
• Expandable system
• Reduces equipment inventory
• Simplifies transportation
• Lower ownership costs
• Ideal for contractors with varying lift requirements.

50 Metric Ton Capacity

• Rated capacity up to 50 metric tons
• Engineered for heavy industrial lifting
• Capacity determined by span and sling angle
• Designed using Caldwell engineering standards
• Suitable for demanding lifting applications.

Dura-Mod® Component System

The system consists of interchangeable components including:

• End Fittings
• Drop Links
• 1 ft Spreader Sections
• 2 ft Spreader Sections
• 3 ft Spreader Sections
• 6 ft Spreader Sections
• 12 ft Spreader Sections
• Bolt Kits

This modular design allows users to create numerous beam configurations using the same component inventory.

Heavy-Duty Construction

• Engineered steel construction
• Precision-machined connection points
• High-strength bolted joints
• Industrial powder-coated finish
• Designed for years of commercial service
• Built for demanding lifting environments.

Reusable Bolt System

• Bolt kits may be reused
• Anti-seize thread coating recommended
• Simplifies maintenance
• Reduces replacement hardware costs
• Easy field servicing.

Benefits

• Replace multiple fixed spreader beams
• Lower transportation costs
• Easier storage
• Fast configuration changes
• Lower equipment investment
• Greater lifting flexibility
• Modular expansion capability
• Ideal for rental fleets
• Reduced downtime
• Long service life

Technical Specifications

System Components

Recommended Hardware

Note: Slings and shackles are supplied separately. Synthetic web slings, chain slings, or wire rope slings may be used as part of a properly engineered lifting plan.

Starter Set Includes

The DM50 Starter Set includes:

• 2 End Fittings
• 2 Drop Links
• 3 Twelve-Foot Spreader Sections
• Required Bolt Kits

The starter package provides a foundation that can be expanded with additional spreader sections as lifting requirements change.

Common Applications

• Structural steel erection
• Precast concrete lifting
• Heavy equipment installation
• Industrial machinery moving
• Power generation
• Wind energy projects
• Oil and gas facilities
• Fabrication shops
• Bridge construction
• Marine and shipyard lifting
• Manufacturing plants
• Mining operations
• Utility construction
• Modular building installation

Industries Served

• Construction
• Steel fabrication
• Manufacturing
• Mining
• Aerospace
• Shipbuilding
• Utilities
• Oil & Gas
• Energy
• Heavy industrial maintenance
• Crane rental
• Rigging contractors

Advantages Over Fixed-Length Spreader Beams

Frequently Asked Questions

What is the Caldwell DM50 used for?

The DM50 is a modular spreader beam system used to safely lift heavy loads while maintaining proper sling angles and reducing compressive forces on the load.

What is the lifting capacity of the DM50?

The system is rated for up to 50 metric tons, with allowable capacity depending on beam span and sling angle. Always reference the official Capacity vs. Span chart before lifting.

How many beam lengths can be built?

The modular system can be configured in spans from 3 feet to 41 feet using interchangeable spreader sections.

Can the bolt kits be reused?

Yes. Caldwell specifies that the bolts, nuts, and washers may be reused when anti-seize thread coating is applied during assembly.

Are shackles included?

No. Shackles and slings are not included and must be selected separately as part of the lifting plan.

Which slings can be used?

The DM50 can be used with properly selected synthetic web slings, wire rope slings, or chain slings as specified in the lift plan.

Why choose a modular spreader beam?

A modular system reduces equipment costs, minimizes storage space, simplifies transportation, and provides the flexibility to configure numerous beam lengths from one reusable set of components.
