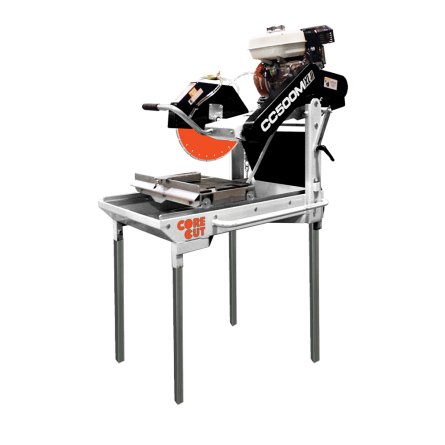

CC500MXL2 Masonry Saw is versatile and powerful and comes in both gas and electric versions


14" Capacity


Gasoline and Electric

Features & Benefits:

  • Stay level blade guard
  • Removable cutting head
  • Leg kit standard-folding stand optional
  • Side carrying handles
  • Replaceable conveyor cart rails
  • Includes water pump
  • Vulcanized rubber coated material slide cart
  • Open throat cutting
  • Easy and safe access to depth control lock
  • Open back cutting allows longer material to be cut
  • Heavy duty frame design help resist damage to saw body
  • Reinforced slide rails keep the cart running smoothly
  • Simple yet strong design allows easy maintenance
  • Sealed drain hole on the bottom of the tray allows quick clean up

Specifications:

Maximum Depth of Cut:

5"

Blade Shaft Diameter:

7/8"

Arbor Diameter:

1"

Blade Shaft Bearings:

Flange block ball bearings

Blade Shaft Drive:

2 belt

Blade Mounting:

Right (electric), Left (gas)

Blade Raise/Lower:

Counterbalanced, spring tensioned head pivots on two 7/8" flange block bearings

Blade Coolant:

Dual spray tubes, pump fed (electric models), pump from tray (gas models)

Air Filter:

3-stage cyclone (gas models)

Fuel Capacity:

1 gallon (gas models)

High Temp Shut-off:

Included (electric models)

Blade Capacity Power Source Engine/Motor Make Engine/Motor Model Motor/Engine Power Part Number Catalog Number
14" Electric Baldor N/A 1.5 HP, Single Phase, 115 or 230 volt 5800799 03725
14" Electric Baldor N/A 2 HP, Single Phase, 115 or 230 volt 5800814 08667
14" Electric Baldor N/A 2.5 HP, Single Phase, 115 or 230 volt 5800801 03726
14" Electric Baldor N/A 3 HP, Single Phase, 230 volt 5800802 03728
14" Gas Briggs & Stratton Vanguard® 6.5 HP 5801217 23961
14" Gas Lifan LF168F 6.5 HP 5801101 34008
