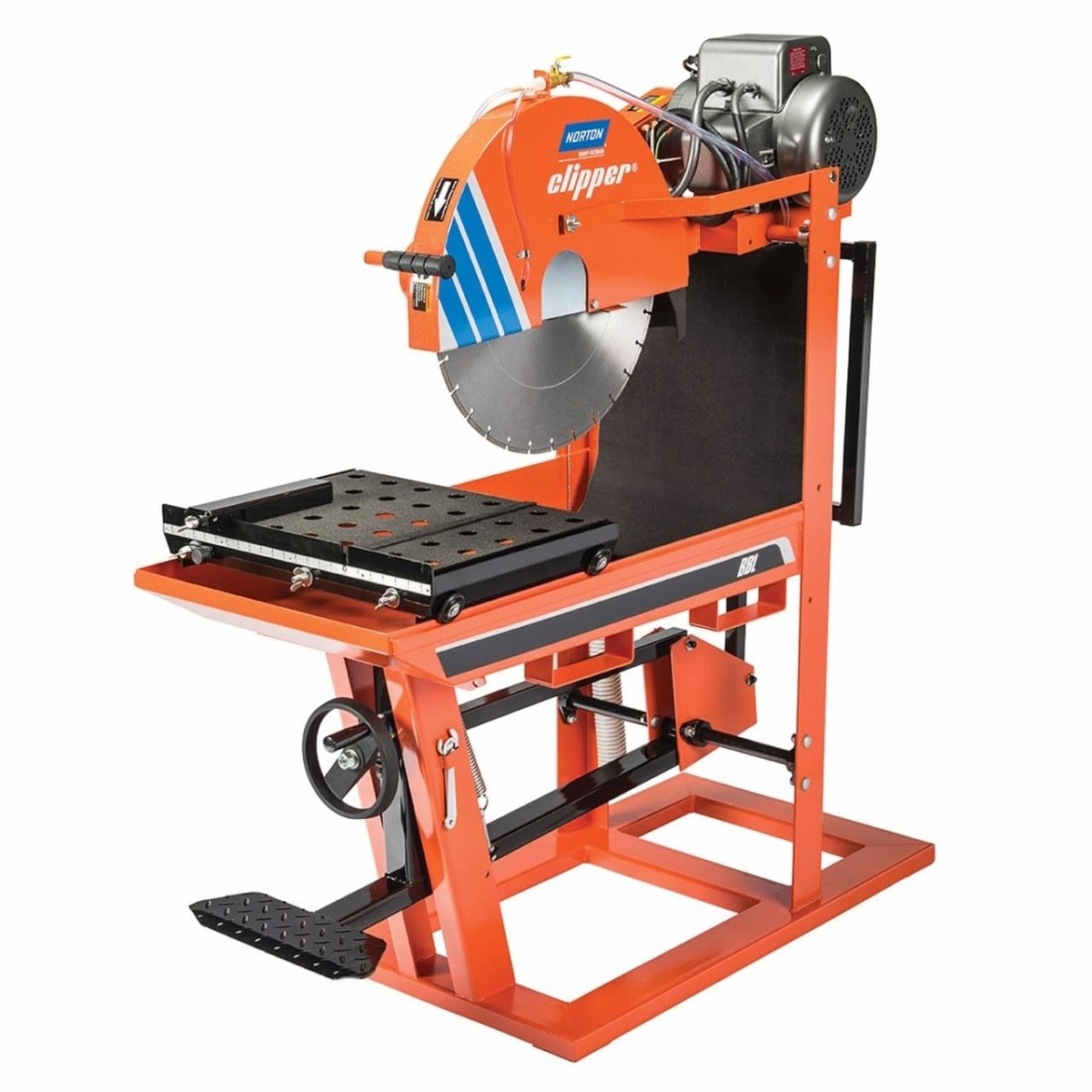

Clipper Blockbuster BBL Series Large Masonry Saw - Electric

Clipper Blockbuster BBL Series Large Masonry Saw - Electric

Having introduced the first masonry saw over 80 years ago, the Norton Clipper BBL heavy-duty block saws have become the industry standard for masons worldwide. Equipped in either electric or, these saws are available with single or three-phase electric motor as well as a more powerful 13HP gasoline engine. Having a rugged all-steel frame design with forklift brackets, these saws resist twisting and damage during transport around a job site. A blade capacity up to 24" and features of extended water pans and open back frame allows cutting of larger materials. The balanced cutting head makes for effortless cutting depth positioning.

• All steel with super strong fillet welds deliver maximum strength and durability while the open back allows for cutting of larger materials
• Sloped front water pan allows complete control of the foot pedal and depth of cut while reducing operator fatigue
• Off-set blade position of cutting head gives operator a better view of material being cut and more stabilization of material on conveyor

MAX BLADE DIAMETER	MAX CUTTING DEPTH	ARBOR HOLE	BLADE FLANGE DIAMETER	ROTATION SPEED	MOTOR/ENGINE TYPE	VOLTAGE	POWER SOURCE	PART #
14 In.	5 In.	1 In.	4.3 In.	2900	Baldor	208-230	Electric	70184683211
	5 In.	1 In.	4.3 In.	2900	Baldor	208-230	Electric	70184683334
20 In.	8 In.	1 In.	4.3 In.	2400	Baldor	208-230	Electric	70184683150
	8 In.	1 In.	4.3 In.	2400	Baldor	208-230	Electric	70184683385
24 In.	10 In.	1 In.	4.3 In.	1800	Baldor	208-230	Electric	70184630007
	10 In.	1 In.	4.3 In.	1800	Baldor	230-460	Electric	70184630008

7.5 Engine power

MAX BLADE DIAMETER	MAX CUTTING DEPTH	ARBOR HOLE	BLADE FLANGE DIAMETER	ROTATION SPEED	MOTOR/ENGINE TYPE	VOLTAGE	POWER SOURCE	PART #
20 In.	8 In.	1 In.	4.3 In.	2400	Baldor	230-460	Electric	70184683485
