Combination Hand Pump and Electric

$5,530⁸⁷

Shipping calculated at checkout.

Forks

Fixed Adjustable

Size

63 98 118

Product variants

Safe & Secure Payments.

This unit can be used as manual hand pump lift or electric powered lift. Ideal when power is not available

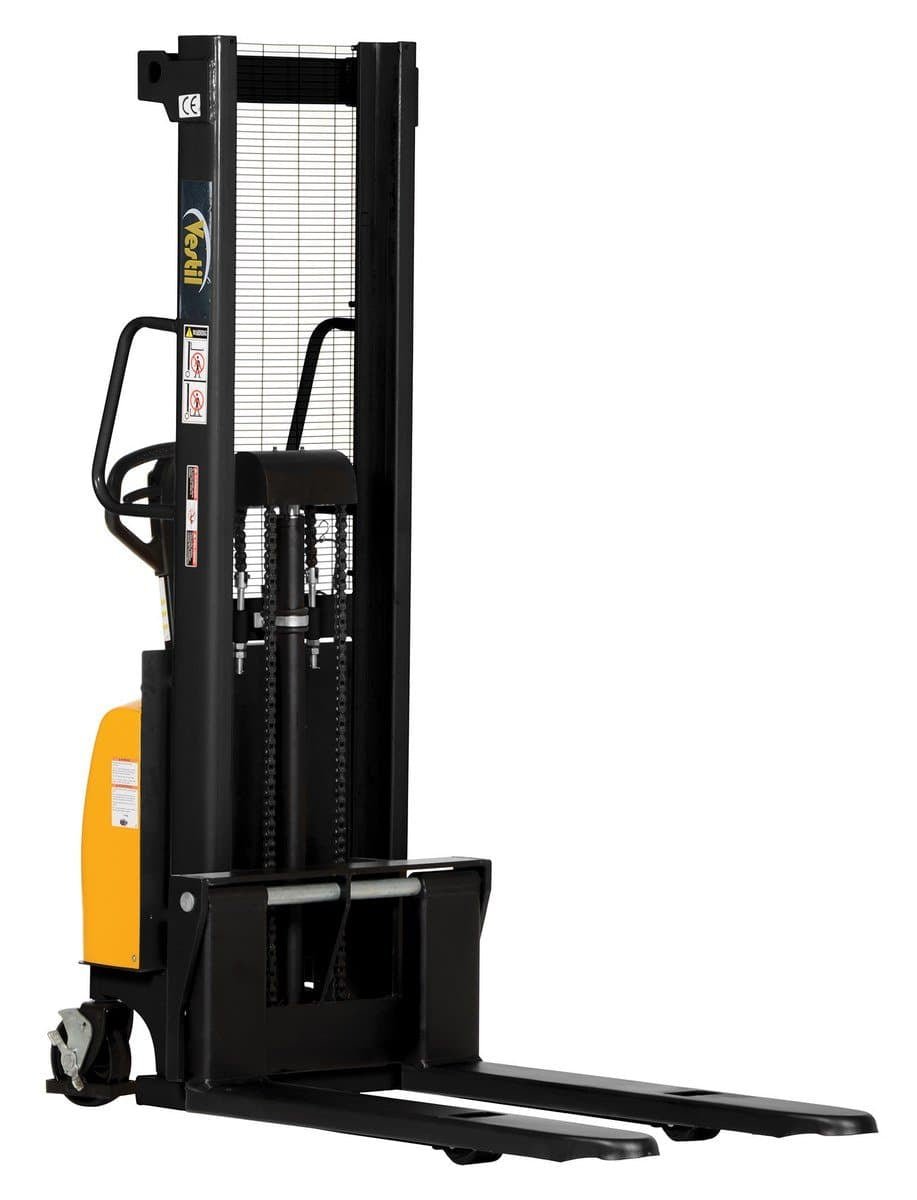

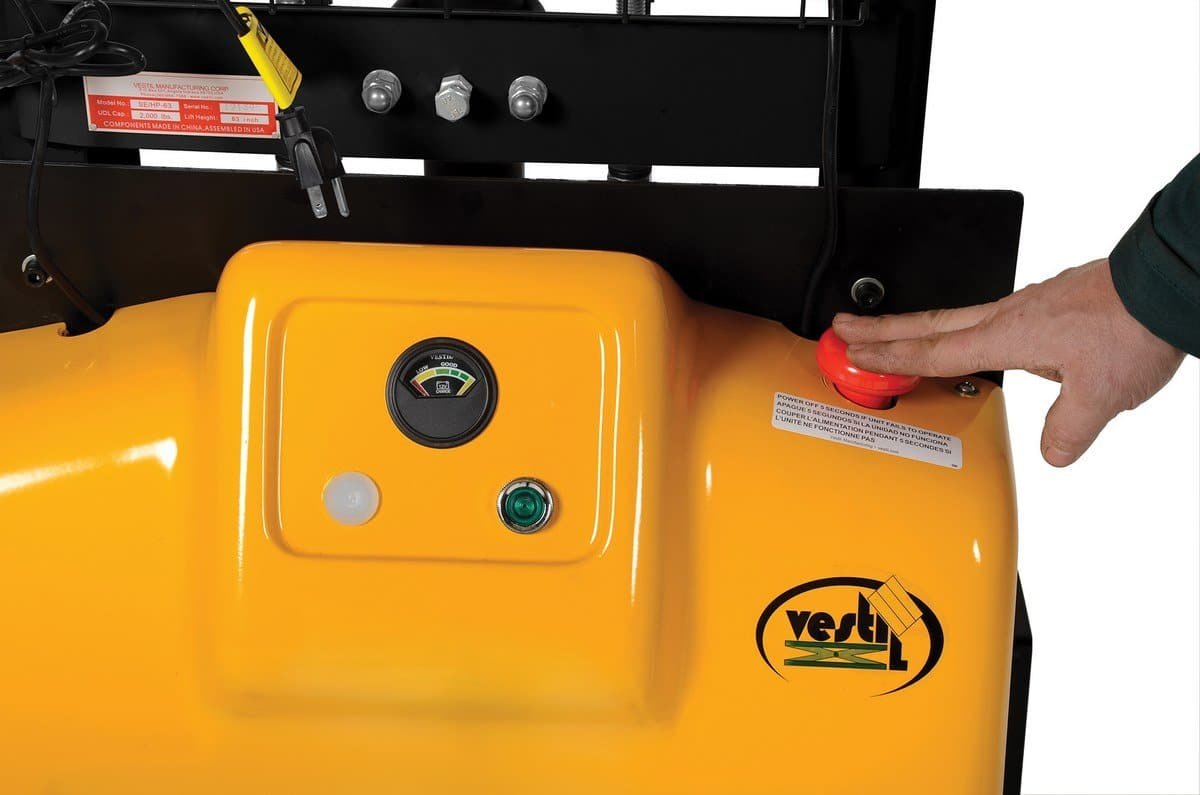

An economical alternative DC powered lift stacker. Ideal for maintenance and commercial applications. This unit can be used as manual hand pump lift or electric powered lift. Ideal when power is not available. High quality hydraulic pump and DC lift system. Compact design and strong steel profile construction. An economical lift to handle tasks such as transporting dies, molds, and skids. Powered with two (2) 12V, 40Ah batteries. Integral battery charger, battery level gauge, and adjustable lowering speed. All models are easily maneuverable using the standard pull handle. Individual forks are 6" wide.

Combination Hand Pump and Electric Stacker
Model	Image	PDFs	Overall Fork Size (WxL)	Lowered Height	Raised Height	Capacity(lbs) 0"-63" RH*	*Capacity (lbs)63"-118" RH	Wt. (lbs)
ADJUSTABLE FORKS / ADJUSTABLE SUPPORT LEGS (works with pallets & skids)
SE/HP-63-AA			26-3/4"x42"	2-1/8"	63"	2,000	--	950
SE/HP-98-AA			26-3/4"x42"	2-1/8"	98"	2,000	1,500	1084
SE/HP-118-AA			26-3/4"x42"	2-1/8"	118"	2,000	1,500	1254
SE/HP-63-AA-AIR	-		26-3/4"x42"	2-1/8"	63"	2,000	--	780
FIXED FORKS OVER FIXED SUPPORT LEGS (works with skids only)
SE/HP-63			26-3/4"x42"	3-3/8"	63"	2,000	--	754
SE/HP-98			26-3/4"x42"	3-3/8"	98"	2,000	1,500	902
SE/HP-118			26-3/4"x42"	3-3/8"	118"	2,000	1,500	950
Optional Solid Platform, model SE/HP-DK
*Uniform Capacity at specific rasied height
