Lithium Electric Straddle Stacker EB20CS with 216' Lift Height and Lithium Battery

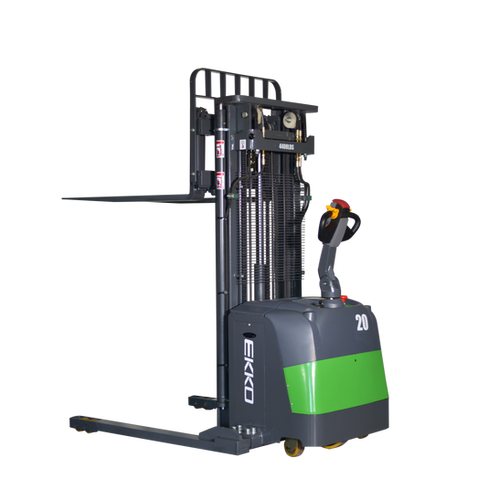

EKKO EB20CS-216Li Lithium Electric Straddle Stacker — 4,400 lb Capacity, 18 ft Lift Height

The EKKO EB20CS-216Li is a lithium-powered electric straddle stacker engineered to combine the versatility of a forklift, reach truck, and walkie stacker in a single machine. Rated for 4,400 lb capacity and a maximum lifting height of 216 inches (18 ft), it is built for contractors and warehouse professionals operating in loading docks, stock rooms, manufacturing floors, and warehousing environments. The triple mast design with side shift and adjustable forks makes it adaptable to a wide range of pallet sizes and aisle configurations.

Unlike conventional lead-acid walkie stackers, the EB20CS-216Li runs on a 24V/150Ah lithium battery with an included 24V/50A charger, eliminating battery watering and reducing downtime. Its Curtis Controller, robotic-welded steel frame, and polyurethane wheels are engineered to withstand demanding terrain, heavy usage, impact, and frequent directional changes.

Technical Specifications

Key Features & Benefits

Lithium Battery with Included Charger

The 24V/150Ah lithium battery delivers consistent power without the maintenance demands of lead-acid, meaning no watering, no equalization cycles, and faster opportunity charging between shifts. The 24V/50A charger is included with the unit, reducing out-of-box costs for contractors setting up a new operation.

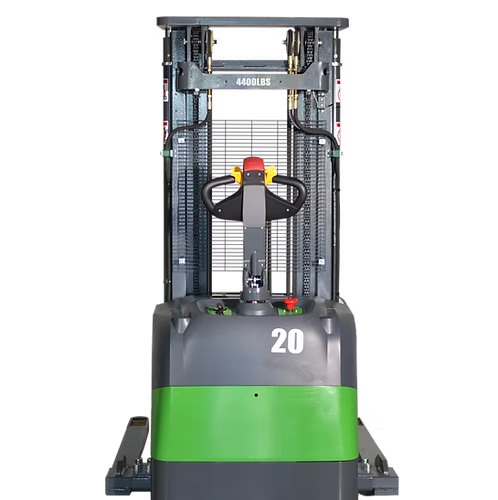

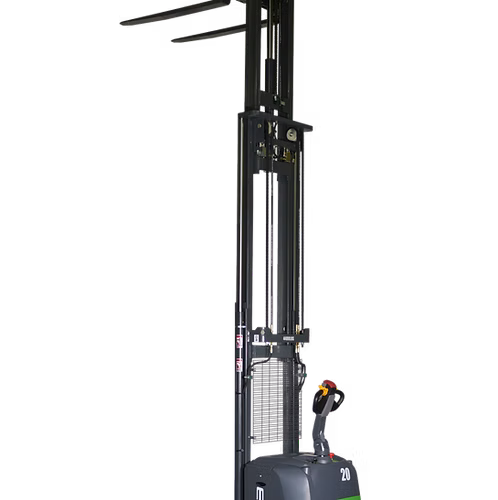

Triple Mast Design — 216 in Max Lift Height

The triple mast configuration allows the stacker to reach a full 18 ft lifting height while keeping the lowered mast height at 92.9 in, making it compatible with standard warehouse door clearances. Extended mast height of 245.6 in accounts for full mast travel, giving operators a clear picture of overhead clearance requirements.

Adjustable Forks and Legs

Fork width adjusts from 8.7 to 32.1 in and straddle legs adjust from 39.8 to 55.5 in, allowing the machine to accommodate a wide range of pallet sizes and load configurations without swapping attachments. This flexibility reduces changeover time on jobsites or warehouse floors where pallet sizes vary.

Side Shift

Built-in side shift allows operators to fine-tune load positioning laterally without repositioning the entire machine, improving placement accuracy in tight racking aisles and at loading docks. This is a feature that directly reduces cycle time and operator fatigue during repetitive stacking operations.

Curtis Controller with 24V AC Drive and Lift Motors

The Curtis Controller manages both the 1,500 W drive motor and 3,000 W lift motor, delivering precise speed and torque control across varying load weights and floor conditions. Curtis is a widely recognized controller platform, which simplifies sourcing for technicians performing field service or diagnostics.

Robotic-Welded Steel Construction with Polyurethane Wheels

Robotic welding produces consistent, high-strength weld joints throughout the steel frame, supporting reliable performance under heavy loads and repeated impact. Polyurethane wheels provide durability on concrete and warehouse-grade flooring while minimizing floor marking and rolling resistance.

Common Applications

Loading and Unloading Trucks

The low lowered fork height of 2.6 in and adjustable legs allow the stacker to slide under standard pallets directly from dock level, making truck loading and unloading straightforward without a separate dock leveler in every scenario.

Loading Dock Operations

With a 65 in turning radius and 81.9 in overall length, the EB20CS-216Li is maneuverable enough for the constrained lanes typical of loading dock areas while still handling full 4,400 lb pallet loads.

Stock Room and Warehouse Storage

The 216 in max lift height enables high-bay racking utilization up to 18 ft, maximizing vertical storage density in stock rooms and warehouses. The adjustable fork and leg widths allow the operator to work with mixed pallet inventory without reconfiguring for each load.

Manufacturing Floors

On manufacturing floors where loads and pallet formats change frequently, the combination of adjustable forks, side shift, and robust steel construction allows the stacker to handle diverse material movement tasks with a single machine.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Steel pallets
• Pallet loads up to 4,400 lb
• Concrete warehouse floors
• Smooth industrial flooring surfaces

Frequently Asked Questions

Q: Is the charger included with the EB20CS-216Li?
A: Yes. A 24V/50A charger is included with the unit.

Q: What is the maximum lifting height?
A: The maximum lifting height is 216 inches (18 ft). The extended mast height at full travel is 245.6 in.

Q: Can the fork width be adjusted for different pallet sizes?
A: Yes. The overall fork width adjusts from 8.7 to 32.1 in, and the straddle legs adjust from 39.8 to 55.5 in to accommodate a range of pallet configurations.

Q: Does the unit have side shift capability?
A: Yes. Side shift is a standard feature on the EB20CS-216Li, allowing lateral load adjustment without repositioning the machine.

Q: What type of battery does the EB20CS-216Li use?
A: It uses a 24V/150Ah lithium battery, which requires no watering or equalization maintenance compared to conventional lead-acid batteries.
