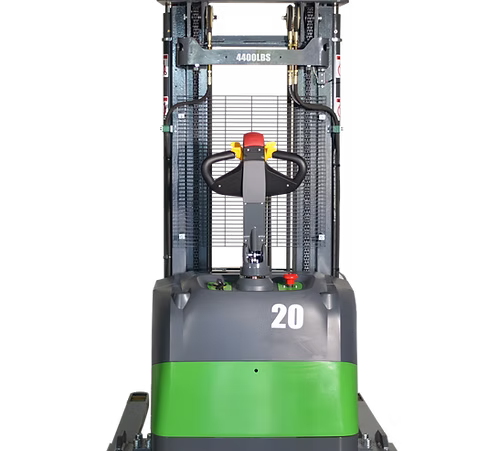

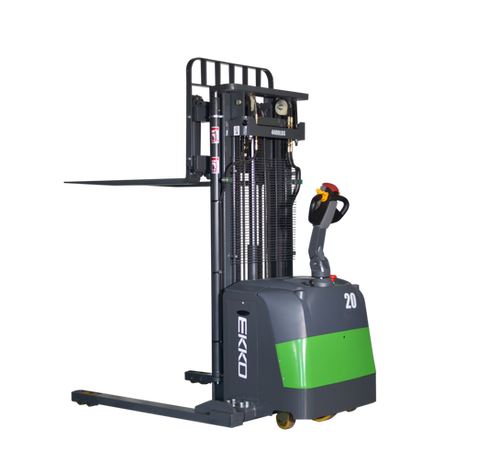

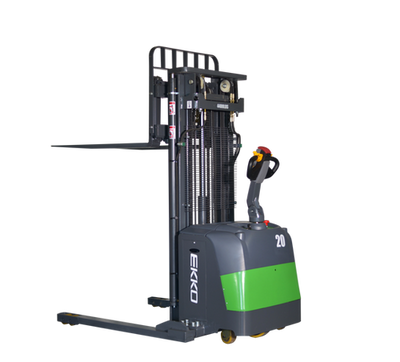

EKKO EB20CS-189Li Lithium Electric Straddle Stacker – 4,400 lb Capacity at 189" Lift Height

The EKKO EB20CS-189Li is a lithium-powered electric straddle stacker engineered to combine the functionality of a forklift, reach truck, and walkie stacker into a single versatile machine. Designed for contractors, warehouse operators, and trades professionals, it handles demanding tasks including loading and unloading trucks, navigating loading docks, managing stockrooms, and operating across manufacturing floors and warehouse environments. With a 4,400 lb load capacity and a raised height of 189" (15.75 ft) via a triple mast, it delivers serious vertical reach for high-bay storage and multi-level racking applications.

Unlike standard walkie stackers limited by lead-acid battery systems and fixed fork configurations, the EB20CS-189Li features a 24V/150Ah lithium battery and charger included out of the box, adjustable forks (8.7"–32.1") and adjustable legs (39.8"–55.5"), plus a side-shift function — giving operators the flexibility to handle varied pallet sizes and precise load placement without repositioning the machine. Robotic-welded steel construction and a Curtis Controller round out a machine built for consistent, reliable operation across demanding job site conditions.

Technical Specifications

Key Features & Benefits

Lithium Battery System – Included

The 24V/150Ah lithium battery and 24V/50A charger are both included with the machine, eliminating the added cost and lead time of sourcing compatible power systems separately. Lithium chemistry offers faster recharge times and more consistent power delivery compared to lead-acid alternatives, keeping uptime high on active job sites.

Triple Mast with 189" Raised Height

The triple mast configuration enables a raised height of 189" (15.75 ft), making this stacker suitable for high-bay warehouse racking and elevated storage applications. Contractors working in multi-level storage environments benefit from the extended vertical reach without requiring a full-size sit-down forklift.

Adjustable Forks and Legs

Fork width adjusts from 8.7" to 32.1" and straddle legs adjust from 39.8" to 55.5", allowing the machine to accommodate a wide range of pallet sizes and load configurations. This adaptability reduces the need for multiple material handling units on a single job site.

Side Shift Functionality

The integrated side shift allows operators to laterally reposition the forks without moving the entire machine, enabling precise load placement in tight racking aisles or confined dock areas. This directly reduces cycle times and minimizes wear from repeated machine repositioning.

Curtis Controller with 24V AC Drive Motor

The Curtis Controller paired with a 24V AC drive motor provides precise, responsive drive and lift control. Curtis controllers are a recognized standard in the electric material handling industry, giving operators confidence in predictable performance across varied terrain, directional changes, and repeated start-stop usage cycles.

Steel Construction with Robotic Welding

The machine is built from high-quality steel using robotic welding processes, producing consistent, high-integrity weld joints throughout the frame. This construction approach is designed to withstand impact, varied terrain, and the repetitive directional changes common in busy warehouse and dock environments.

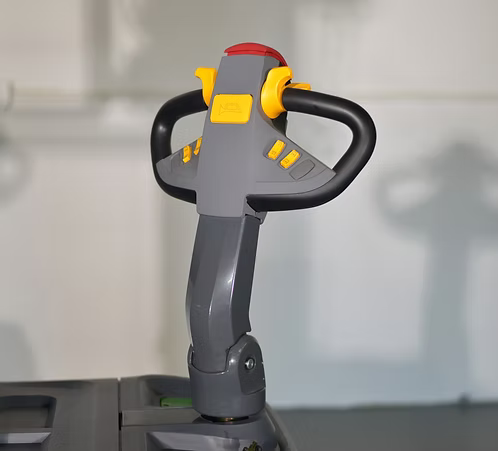

Polyurethane Wheels & Ergonomic Controls

Polyurethane wheels deliver durability on smooth warehouse and dock surfaces while protecting floors from marking. Ergonomic handle and controls reduce operator fatigue during extended shifts, supporting productive operation across full work days.

Common Applications

Loading and Unloading Trucks

The EB20CS-189Li is purpose-suited for loading dock operations, handling palletized freight at truck bed height with its 4,400 lb capacity and side-shift for precise positioning.

Loading Dock Operations

Adjustable legs and forks allow the stacker to work efficiently at loading docks where pallet dimensions and dock configurations vary between deliveries.

Stockroom and Warehouse Storage

With a 189" raised height and triple mast, operators can place and retrieve loads on high-bay racking systems in stockrooms and warehouse environments without a dedicated reach truck or counterbalanced forklift.

Manufacturing Floor Material Handling

The electric drive system and polyurethane wheels make this stacker well suited for indoor manufacturing floor use where emissions and floor protection are a priority.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized construction materials
• Boxed and crated goods
• Warehouse racking-compatible loads up to 4,400 lb

Frequently Asked Questions

Q: Is the battery and charger included with the EB20CS-189Li?
A: Yes. Both the 24V/150Ah lithium battery and the 24V/50A charger are included with the machine.

Q: What is the maximum lift height of this stacker?
A: The EB20CS-189Li lifts to a maximum raised height of 189" (15.75 ft) using its triple mast configuration.

Q: Can the forks and legs be adjusted to fit different pallet sizes?
A: Yes. The forks are adjustable from 8.7" to 32.1" and the straddle legs adjust from 39.8" to 55.5" to accommodate various pallet dimensions.

Q: Does this stacker have side shift?
A: Yes. Side shift is included, allowing lateral fork adjustment for precise load placement without repositioning the entire machine.

Q: What type of controller does this unit use?
A: The EB20CS-189Li uses a Curtis Controller, paired with a 24V AC drive motor and 24V lift motor.
