Lissmac | SKU: 1069145

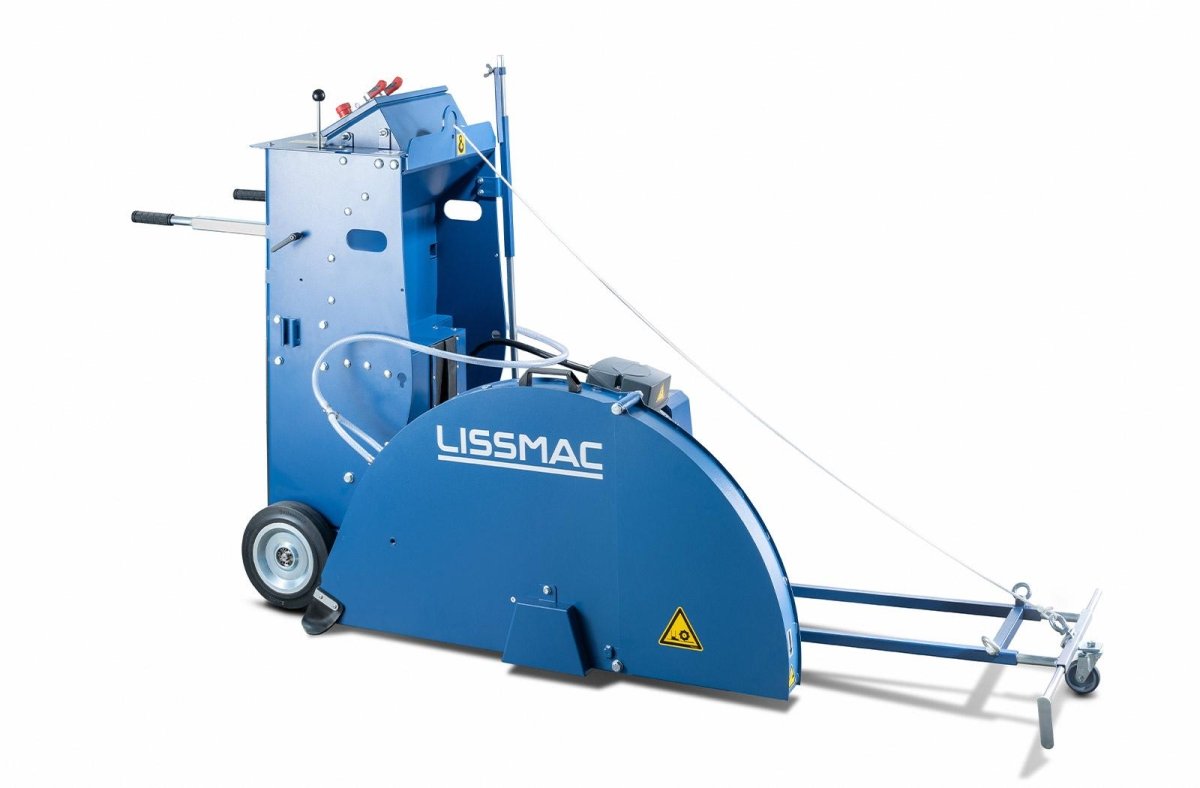

CompactCut 501 E

Name: CompactCut 501 E
Brand: Lissmac
SKU: 1069145
Price: 16955.00 USD
Availability: InStock

$16,955⁰⁰

Shipping calculated at checkout.

Safe & Secure Payments.

The Electric Saw Provides Strength and Endurance for Demanding Applications. Indoors, The High Maneuverability in Combination with the Compact Dimensions Is Also Impressive.

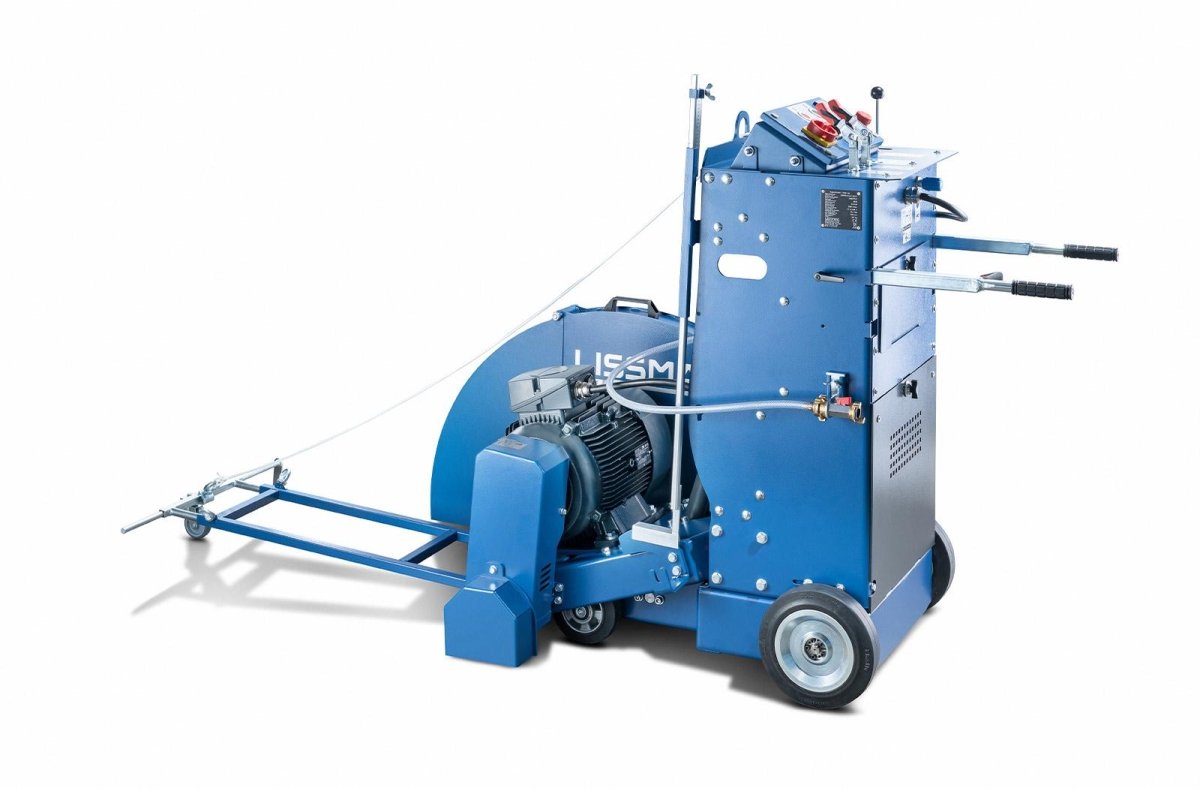

The 15 kW COMPACTCUT 501 E electric floor cutter shows its advantages to the full, especially inside buildings. The electrically driven machine works emission-free and with low-vibration. The electric joint cutter relieves the burden on users and the environment and also protects the valuable cutting tool. The low-noise 400 volt drive spins saw blades up to 1,000 mm in size for maximum cutting depths of 420 mm in asphalt and concrete. The COMPACTCUT 501 E is mechanically identical to the COMPACTCUT 601 E, which includes a frequency converter.

With strength and endurance built in, the COMPACTCUT 501 E electric floor cutter has proven itself in demanding continuous use in asphalt and concrete cutting, making separating cuts, and in demolition work, especially when working indoors. With optional equipment, it can also be used to cut joints close to the wall. The important advantage for this machine for efficient indoor joint cutting is the high maneuverability combined with the compact dimensions of the electric joint cutter. The feed system of the COMPACTCUT 501 E is infinitely adjustable.

COMPACTCUT 501 E

cutting depth: 420 mm

cutting depth setting: electrohydraulic

saw blade Ø max.: 1000 mm

arbor size: 25.4 mm (6 x M8 - TK125)

drive motor: electric

output power max.: 15 kW / 400 V / 32 A

saw blade speed: 1000 1/min

left/right cut: yes

dimensions (L/W/H): 1500 / 795 / 1350 mm

weight: 369 kg

FURTHER INFORMATION

Particular compact design
Lowering and lifting of the saw blade is hydraulic and continuous. This prevents damage to the saw blade.

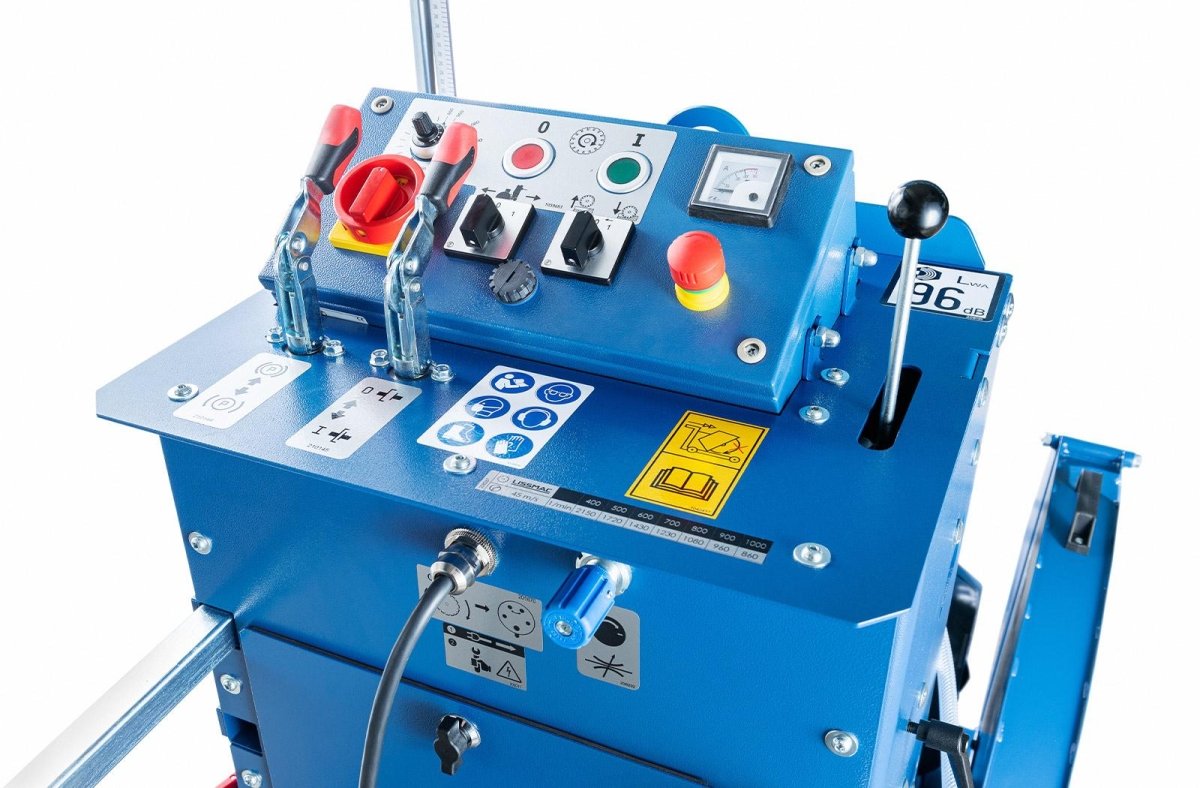

Clear and ergonomic design of controls.
Saw hood foldable at the front for overcuts
Patented flush-mounted sawing system with 31.50 inch wall-mounted cover (optional) and wall-mounted saw blade holder
The rear wheel sits outside the saw cut. This makes it easy to re-cut kerfs.
Left and right cut possible
The low center of gravity and the exact distribution of the weight on the axles ensure stability and excellent straight-line cut
Adjustable continuous feed system with differential
Locking brake

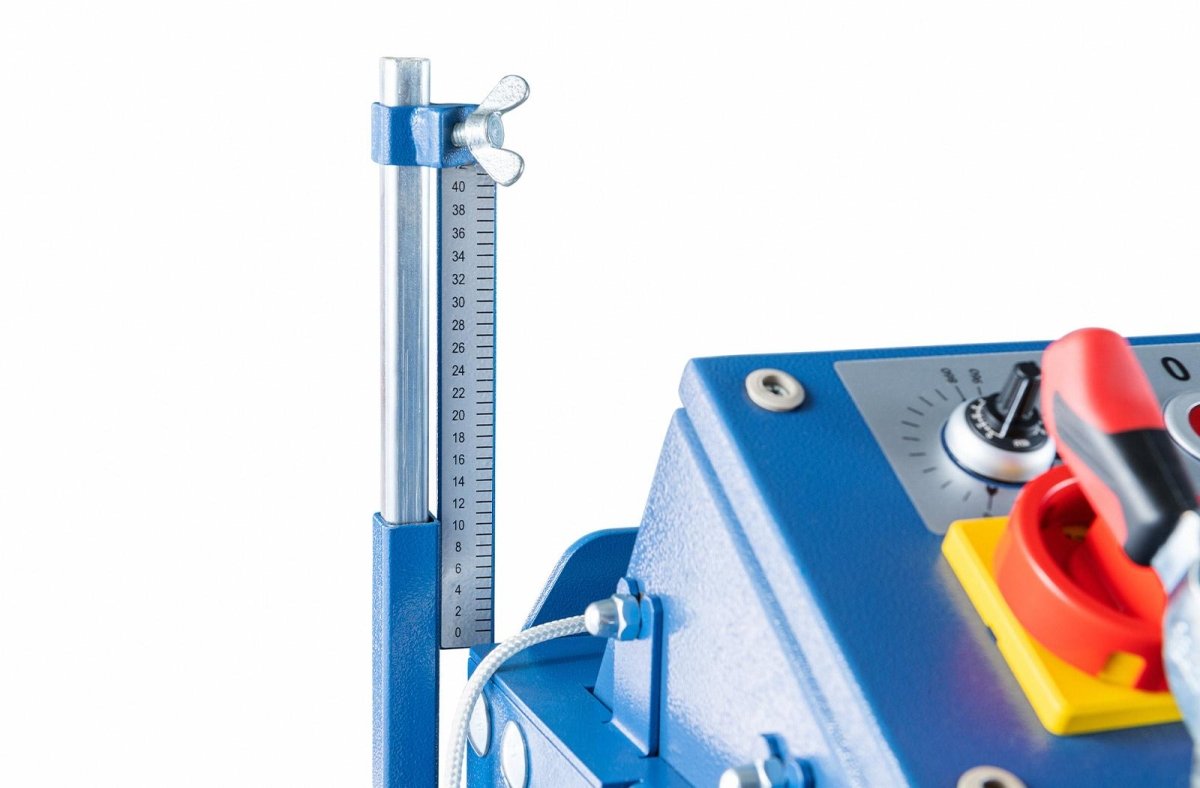

Cut depth display
Stable dipstick in H-shape
Continuous saw blade shaft with V-belt drive
Saw blade excavation via low-maintenance rocker design

Optionally available with wall-flush hood:

Patented wall-flush saw system with 800 mm wall-sliding saw hood and wall-flush saw blade holder.
Wall-flush joint cutting according to the current machinery directive or C-norm guaranteed.
The machine is equipped with the required protective device according to DIN EN 13862.
