COTR-03 Pneumatic Reversible Cut-Off Tool
COTR-03 Pneumatic Reversible Cut-Off Tool
Pneumatic Reversible Cut-Off Tool
Features

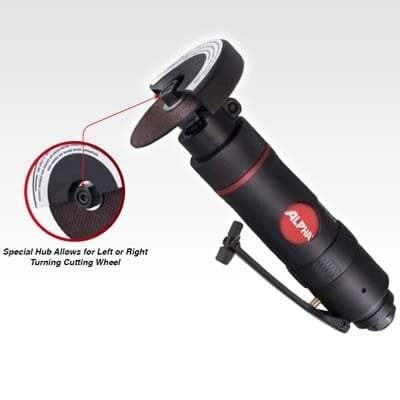

- Special Hub Allows for Left or Right Turning/Cutting Action
- Collar Operated Easy Directional Change
- Safety Throttle Lever
- Rear Exhaust
- Powerful Motor (0.85 HP/0.63 KW)
- One Year Warranty* (*See manual for details)
Description
Cut-Off tools are must-have items for most metal fabricators and automotive restoration shops. There are typically three different types available: In-Line Cut-Off Tool which is more or less the same idea as using a grinder to cut stone; a Standard Cut-Off Tool that is similar to a straight grinder with a safety guard for the general cutting applications; an Extended Cut-Off Tool that is designed to use for difficult to reach areas. Alpha® introduces the COTR-03 Reversible Cut-Off Tool. This cut-off tool is 8-1/16" length and has a special hub that allows for left or right turning of the cutting wheel. The direction of wheel can be changed easily by collar to direct the sparks and debris away from the operator. The operation is also comfortable with rear exhaust design. In addition, the unit has a powerful 0.85 HP motor that enhances the capacity of the Ultracut ABM series blade.
| Specification | Data |
|---|---|
| Model | COTR-03 |
| Free Speed | 20,000 RPM |
| Cutting Disc Dimensions | 3" / 75mm |
| Air Inlet | 1/4" NPT |
| Hose Size ID | 3/8" / 10mm |
| Air Consumption | 4 CFM (113L/min) |
| Length | 8-1/16" / 204mm |
| Weight | 2.0 lbs / 0.9 kgs |
| Noise Level | 83 dB(A) |
| Recommended Air Pressure | 90 PSI (6.2 Bar) |
|
Question : What kind of compressor do I need to use the COTR-03?
Answer : Since the COTR-03 may consume up to 4 CFM, Alpha® recommends using with a 3 hp or larger compressor that is commonly found in garages.
Question : Can I use the COTR-03 for Flush Cutting?
Answer : No, you cannot use the COTR-03 for flush cutting due to the direct drive design
Question : Does COTR-03 come with Ultracut ABM Series blade?
Answer : No. The COTR-03 comes with a standard aluminum oxide abrasive cut-off wheel for metal.
Question : Can I use the COTR-03 at the jobsite?
Answer : Yes as long as you have the required compressed air available, you can use the COTR-03 at the jobsite.
Question : What kind of maintenance do I have to do on the COTR-03?
Answer : Alpha® recommends adding daily oil to the designated oil port at the end of the job to lubricate the motor.
Question : Is there a dust shroud available for the COTR-03?
Answer : No. There is not a dust shroud available for the COTR-03 at this time.
