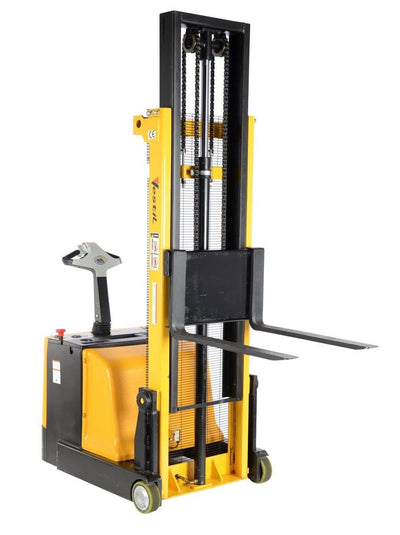

Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks.

High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift has four 6V batteries (except S-CB-62 & S-CB-118, which uses two 12V batteries), an integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently. Adjustable forks suitable for different pallets. Individual forks are 3?" wide on series S-CB and 4" on series S-2CB. Overall size is 32."W x 78"L on series S-CB and 35."W x 110"L on series S-2CB A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

Battery options are available; Absorbed Glass Matt, suffix AGM. Batteries are completely maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Counter-Balanced Powered Drive Lift
Model Image PDFs Fork Size
Raised Ht.
Raised Ht.
S-CB-62 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6-3/8 to 23-5/8"x30" 2" 62" 1,000 lbs. -- 1817
S-CB-118 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6-3/8 to 23-5/8"x30" 2" 118" 1,000 lbs. 500 lbs. 2012
S-2CB-62* Warranty PDFCompliance Certificate 8-3/8 to 23-1/4"x36-1/4" 2" 62" 2,000 lbs. -- 2589
S-2CB-118* icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 8-3/8 to 23-1/4"x36-1/4" 2" 118" 2,000 lbs. 1,000 lbs. 2783

*Includes rider platform (ground clearance 1-1/2")

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
