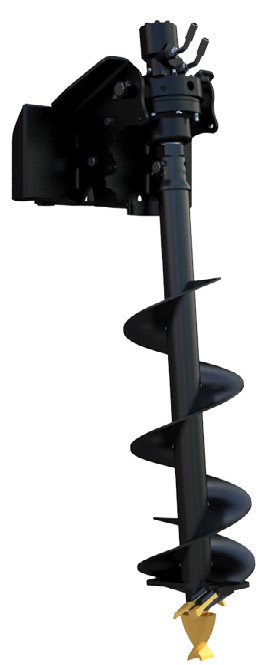

Digga's range of drilling augers for 0.85 ton to 1 ton Mini Loaders are the ultimate in performance, quality and cost effectiveness.

Mounting Plate is specific to make and model of Mini Loader. Please call +1 (800) 342-3876 to specify what machine the mount is attaching to.

Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Digga drilling augers are backed by industry leading warranty and local factory support.

Features:
  • Compact Digga manufactured gearbox
  • Fitted with a Digga designed Eaton motor
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shaft pull out warranty
  • 5 year gearbox and 3 year motor warranty
  • Over 30 years design and manufacturing experience
Specifications 1MDS
Torque (ft.-lbs. @ 3000 PSI) 2,119
Max Torque (ft.-lbs. @ 3500 PSI) N/A
Recommended Flow (GPM) 6-16
Motor Type Eaton
Max Pressure (Do Not Exceed) 3000 PSI @ 11 GPM
Max Flow (Do Not Exceed) 15 GPM @ 2300 PSI
Max Horse Power 20
Pressure Relief Valve Optional
Standard Output Shaft 2" Hex
Halo Optional

Recommended Auger A4 / RC4
Max Drilling Diameter (Clay / Shale)¹ 12"
Max Drilling Diameter (Earth)¹ 24"
Weight (lbs.) 72
Overall Length (in.) 16.6"
Diameter (in.) 8"
¹Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.

1MDS
OUTPUT SPEED OUTPUT TORQUE
GPM RPM PSI FT-LBS
6 26 1,500 1,060
8 35 1,700 1,201
10 43 1,900 1,342
12 52 2,100 1,484
14 61 2,300 1,625
16 69 2,500 1,766
  2,700 1,907
  2,900 2,049
  3,100 2,190
  3,300 2,331
  3,500 2,473
