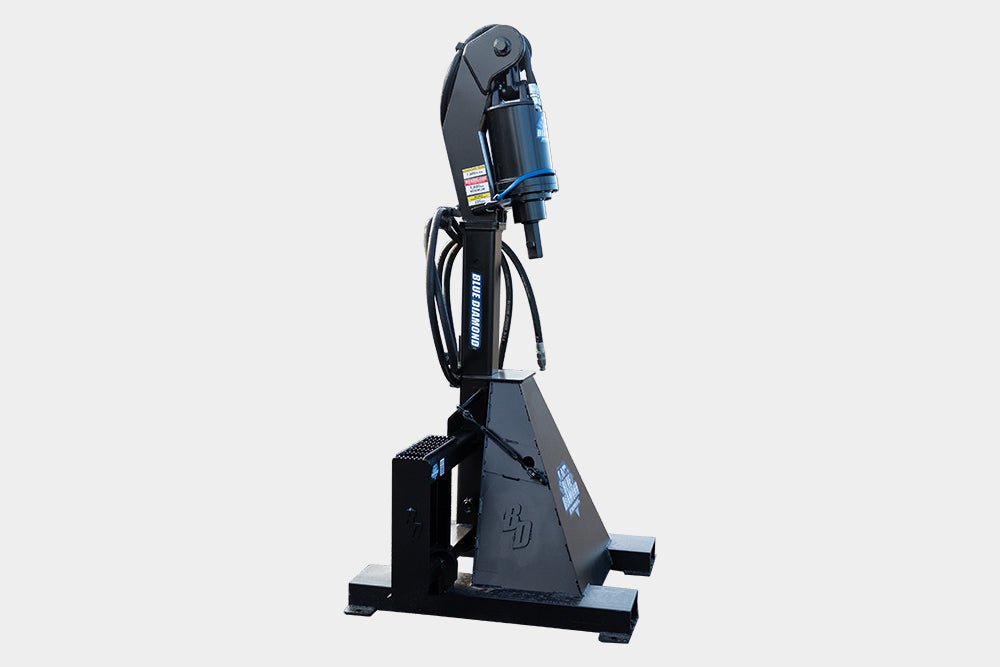

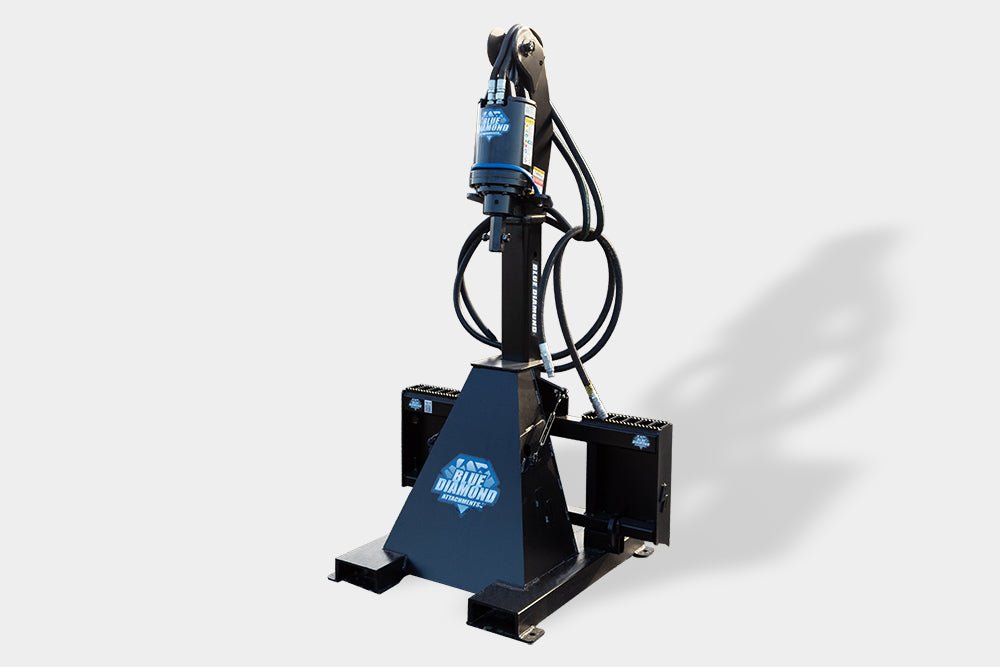

Telescopic Auger Mount
SKU: 105780
Blue Diamond® Attachments’ piling & drilling mounts increase your reach for added drilling depth or helical pile installation.
These extension mounts use only the highest quality steel and strict quality control. These telescopic extension mounts have a retracted length of 78” and are extendable by 36”.
FEATURES INCLUDE :
- 78” retracted length
- Extendable by 36”
- Minimum Skid Steer rated operating capacity 1800 lbs
- Maximum Auger Drive torque 7000 ft/lbs
- Maximum Auger Bit weight 220 lbs
- Optional Transport Stand
- Hose sets have pressure gauge option
TELESCOPIC AUGER MOUNT SPEC SHEET
| PART NUMBER | MODEL | WEIGHT |
|---|---|---|
| 105780 | Mount | 359 lbs |
| 105781 | Optional Transport Stand | 255 lbs |
| 205788 | 14" Hose Set 1/2" Couplers | 20 lbs |
| 205789 | 14" Hose Set 1/2" Couplers | 20 lbs |
| 205790 | 14" Hose Set 1/2" Couplers w/Pressure Gauges | 20 lbs |
| 205791 | 14" Hose Set 3/4" Couplers w/Pressure Gauges | 20 lbs |
