Augers For Skid Steer Loaders 1-2.5T & Mini Excavators 0.75-3T

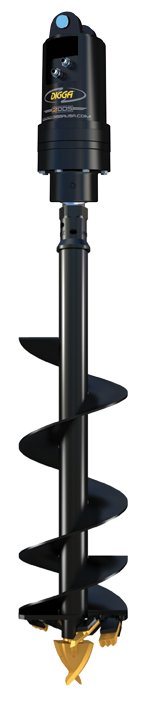

Digga's drilling augers for 1 - 2.5 ton skid steer loaders and 0.75 ton to 3 ton mini excavators are the ultimate in performance, quality and cost effectiveness.

Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

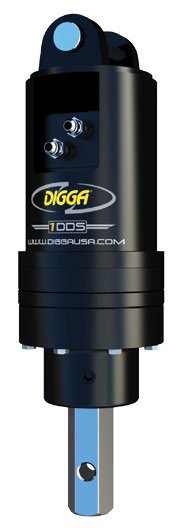

Fitted with Digga / Eaton bell motors and input housing (auger drive for Skid Steer) or with optional pressure relief valve (auger drive for Mini Excavator), the innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance, optimizing your returns.

Digga drilling augers are backed by industry leading warranty and local factory support.

Features:

• Compact Digga manufactured gearbox
• Digga designed Eaton motor with optional intergrated pressure relief valve to eliminate the need for bulky valve blocks and reduce many potential leak points
• 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
• Lifetime shaft pull out warranty
• 5 year gearbox and 3 year motor warranty
• Over 30 years design and manufacturing experience
• Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'

Specifications	1DSS	2DSS
Torque (ft-lbs @ 3000 PSI)	1,467	2,254
Max Torque (ft-lbs @ 3500 PSI)	1,712	2,630
Recommended Flow (GPM)	6-16	10-26
Motor Type	Eaton	Eaton
Max Pressure - Do Not Exceed	3500 PSI @ 16 GPM
Max Flow - Do Not Exceed	30 GPM @ 1800 PSI
Max Horse Power	33	33
Pressure Relief Valve	N/A	N/A
Standard Output Shaft	2" Hex	2" Hex
Halo	Optional	Optional
Recommended Auger	A4 / RC4	A4 / RC4
Max Drilling Diameter (Clay / Shale)¹	12"	24"
Max Drilling Diameter (Earth)¹	24"	30"
Weight (lbs.)	101	123
Overall Length (in.)	24.5"	25.9"
Diameter (in.)	7.4"	9.4"

¹Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.

1DSS				2DSS
OUTPUT SPEED		OUTPUT TORQUE		OUTPUT SPEED		OUTPUT TORQUE
GPM	RPM	PSI	FT-LBS	GPM	RPM	PSI	FT-LBS
6	38	1,500	734	10	41	1,500	1,127
8	50	1,700	832	12	49	1,700	1,277
10	63	1,900	929	14	57	1,900	1,428
12	75	2,100	1,027	16	65	2,100	1,578
14	88	2,300	1,125	18	73	2,300	1,728
16	100	2,500	1,223	20	82	2,500	1,878
		2,700	1,321	22	90	2,700	2,029
		2,900	1,418	24	98	2,900	2,179
		3,100	1,516	26	106	3,100	2,329
		3,300	1,614			3,300	2,479
		3,500	1,712			3,500	2,630
