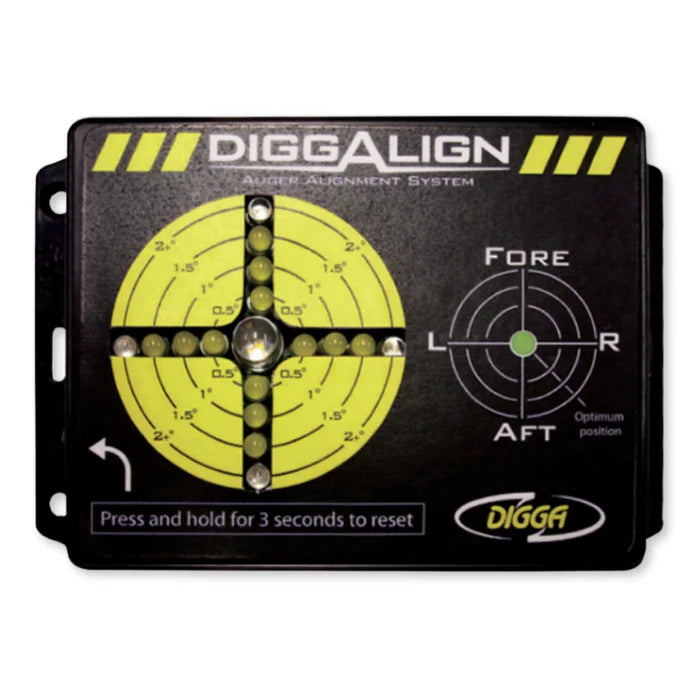

The New Diggalign Inclinometer was developed for contractors where accuracy is key. Ideal for drilling, screw piling & core barrelling applications.

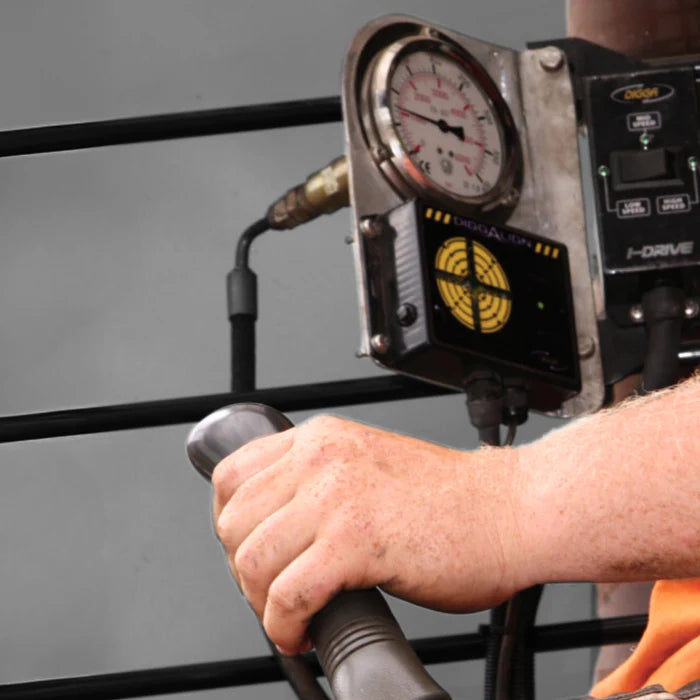

Designed to show the operator when the top of the pylon/pile/auger is off plumb, helps to maintain accuracy throughout the installation.

Features:
  • 2 Options available:
    • Standard definition with increments in 2°, recommended for piles/augers under 13ft
    • High definition with increments in 0.5°, recommended for piles/augers over 13ft
  • Can be retrofitted to existing drives
  • Suits all machinery with a variety of harness lengths
  • Increased job site efficiency
  • Can be calibrated for angles up to 20°
  • Highlights misalignment forward and aft
  • Dual supply cable with both 12V and 24V
Specs Display Unit
Length 120mm
Height 35mm
Width 93mm
Overall Length 146mm
