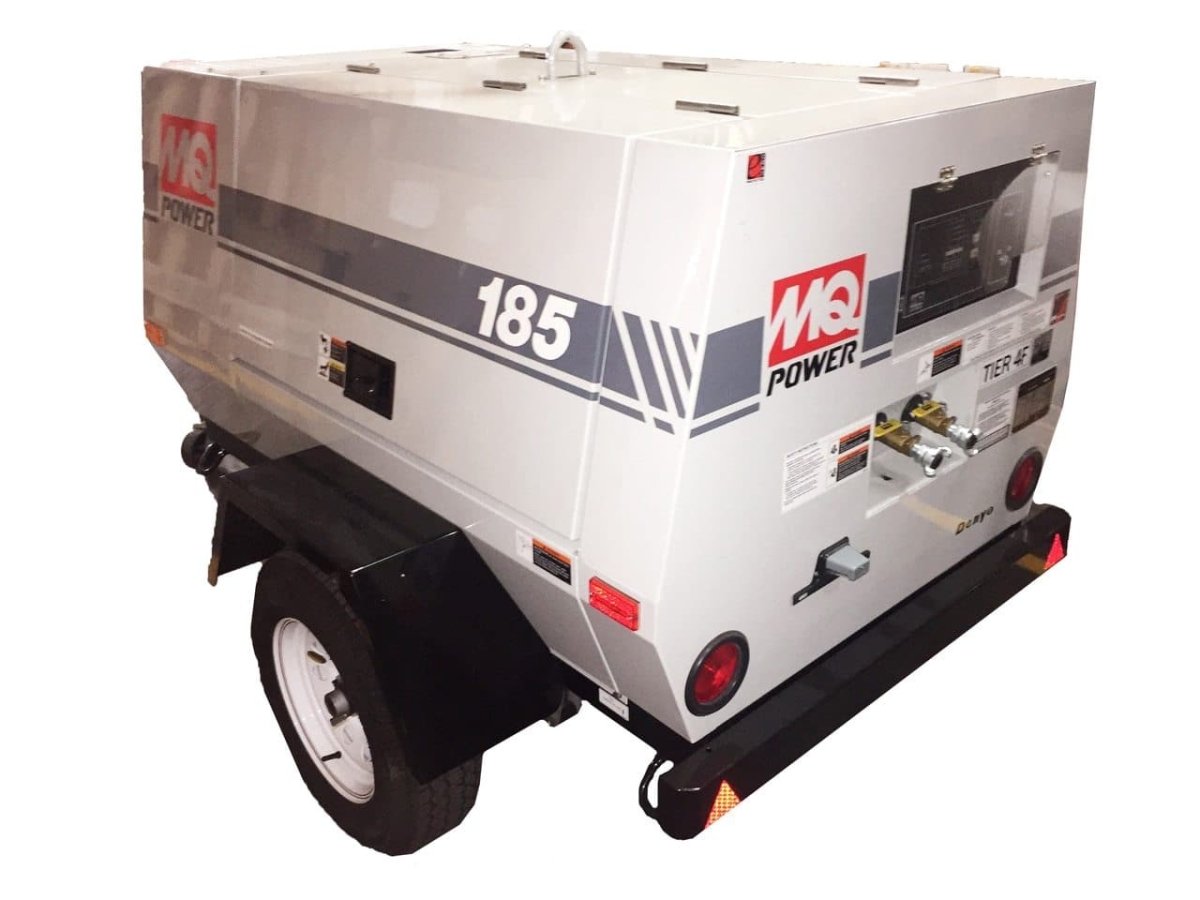

DIS185SSI4F MQ Power Air Compressor with turbocharged diesel engine

185 CFM Delivery, Isuzu Tier 4 Final

Multiquip is proud to introduce the 185 cubic-feet-per-minute DIS185SSI4F Air Compressor , engineered to meet the needs of construction and equipment rental professionals, is powered by a 49 horsepower Isuzu diesel engine that meets EPA Tier 4 Final engine emissions.

The weather resistant steel housing is fully lockable for safe, unattended operation. The sound attenuated cabinet reduces engine noise during operation. A state of the art LED digital control panel displays the compressor temperature, fuel level, engine temperature and speed and also provides engine diagnostics. Large tires provides smooth, stable towing characteristics on the highway or on the job site.

  • Heavy duty, 4-cycle, direct injection, turbocharged diesel engine provides maximum reliability.
  • EPA emissions certified - Tier 4 final emissions compliant.
  • Sound attenuated, weather resistant, steel housing provides operation at 69 dB(A) at 23 feet. Fully lockable enclosure allows safe unattended operation.
  • Large side doors to provide access to engine and compressor.
  • Lockable internal tool box for storing tools and hoses.
  • Bolt on steel fender.
  • D.O.T approved tail lamps, stop lamps, turn signal lamps and side marker lamps.
  • Tongue mounted swivel jack with caster.
  • 4-hole channel allows 3-position, adjustable coupler height;
  • 4-inches O/A.
  • Single-axle design with leaf spring suspension.
  • E-coat and powder coat paint provide durability and weather protection.
  • Digital Controller provides readouts with LED status indicator:
    • Compressor Temperature
    • Engine Temperature
    • Engine Speed
    • Fuel Level
    • Complete Engine Diagnostic Tool
Unit Specifications
Type Rotary Screw
Rated Delivery 185 5.2
Rated Operating Pressure 100 PSI 6.9 BAR
Oil Capacity 4.5 gal 17 L
Air Service Connections Type Two 3/4 in MNPT
Cooling System Oil to Air
Minimum Operating Pressure 70 PSI 4.9 BAR
Maximum Operating Pressure 125 PSI 8.6 BAR
Sound Level dB(A)
Full Load at 23 Feet
69 db(A)

Trailer Specifications
Gross Axle Weight Rating (GAWR) 1588 lb 3500 kg
Tire Size ST205/75D14 LR-C
Tow Bar Design Bolt on "A" Frame
Jack Stand Type Caster
Dimensions & Weights
Overall Length 128.6 in 3263 mm
Overall Width 65.59 in 1666 mm
Overall Height 60.08 in 1526 mm
Operating Weight 2343 lb 1065 kg
Shipping Weight 2112 lb 960 kg
Engine Specifications
Make/Model Isuzu / 4LE2T
Emissions Tier 4 Final Certified
Starting System Electric
Design 4-cycle, Water Cooled, Direct Injection, Turbocharged
Gross Engine Power Output 49 bhp 36.5 kW
Fuel Tank Capacity 24 gal 90 L
Fuel Consumption:
Full load 2.52 gph 9.5 lph
1/2 load 1.36 gph 51 lph
Coolant Capacity 1.8 gal 6.8 L
Oil Capacity 2.7 gal 10.2 L
Battery 12V, Group 27, CCA 800
Notice: Features and equipment specifications are subject to change without notice.
